Parking Assist Distance Sensor: Testing and Inspection

PARK ASSIST / MONITORING: ULTRASONIC SENSOR: INSPECTION

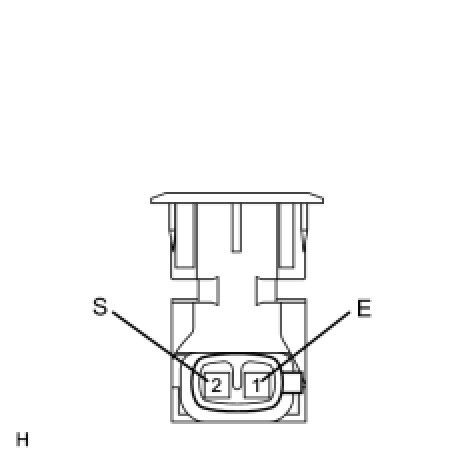

1. INSPECT NO. 1 ULTRASONIC SENSOR





(a) Measure the resistance of the sensor.

Standard resistance:





NOTICE:
Set the tester to the 100 kOhms range before performing the measurement.

2. INSPECT NO. 2 ULTRASONIC SENSOR





(a) Measure the resistance of the sensor.

Standard resistance:





NOTICE:
Set the tester to the 100 kOhms range before performing the measurement.

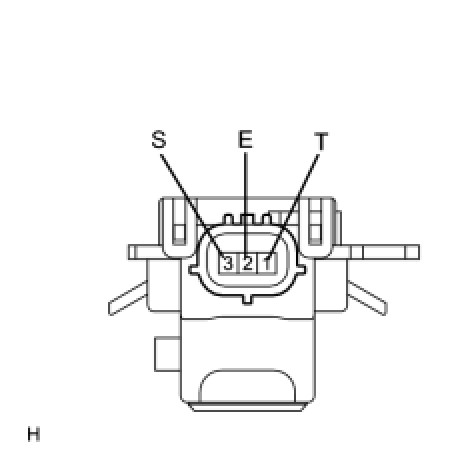

3. INSPECT NO. 3 ULTRASONIC SENSOR





(a) Measure the resistance of the sensor.

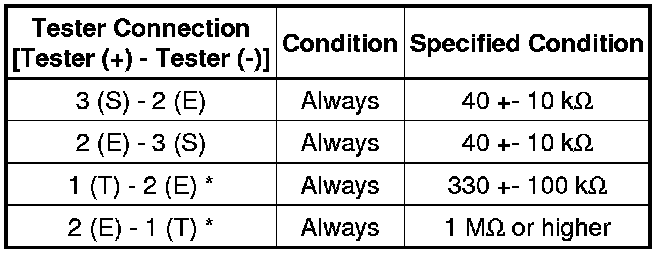

Standard resistance::





NOTICE:
* Set the tester to the 100 kOhms range before performing the measurement.
* *: Measurement values may vary depending on the tester used. If results seem inaccurate, reverse the polarity (+-) and measure again.
