Removal

PARK ASSIST / MONITORING: ULTRASONIC SENSOR: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE FRONT BUMPER ASSEMBLY Removal

3. REMOVE NO. 3 ULTRASONIC SENSOR

(a) Disconnect the sensor connector.

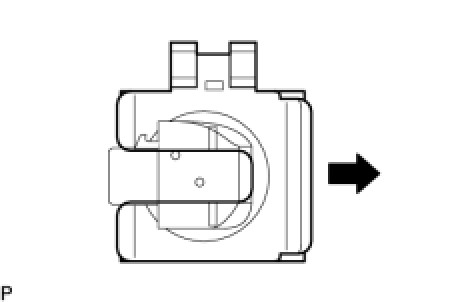

(b) Remove the sensor from the sensor retainer as shown in the illustration.

4. REMOVE REAR BUMPER NO. 1 PLATE Removal

5. REMOVE REAR BUMPER ASSEMBLY Removal

6. REMOVE NO. 2 ULTRASONIC SENSOR

(a) Disconnect the sensor connector.

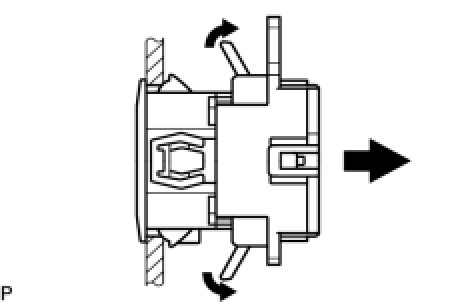

(b) Remove the sensor retainer.

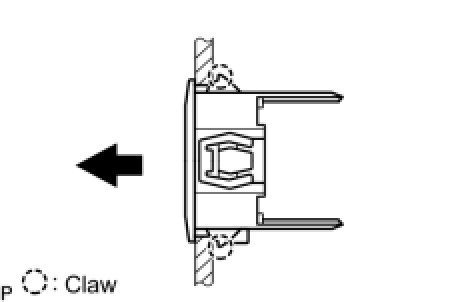

(c) Remove the sensor from the rear bumper.

7. REMOVE NO. 1 ULTRASONIC SENSOR

(a) Disconnect the sensor connector.

(b) Remove the sensor retainer.

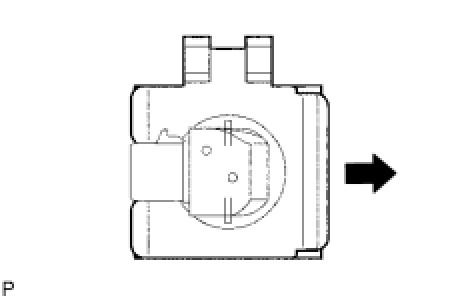

(c) Remove the sensor from the rear bumper.
