STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: INSTALLATION

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

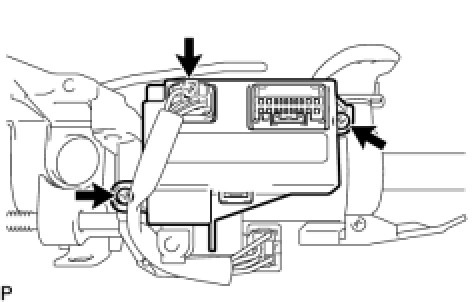

(a) Using a socket wrench (+), install the multiplex tilt and telescopic ECU with the 2 screws.





Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf)

(b) Connect the connector to the multiplex tilt and telescopic ECU.

NOTICE:
* The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape.
* When installing them, connect the connectors of the same color.
2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

(a) Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.

(b) Tighten the 2 tapered-head bolts until the bolt heads break off.





3. INSTALL STEERING COLUMN ASSEMBLY (for 2GR-FSE)

HINT
Refer to the instructions for Installation of the steering column assembly (2GR-FSE) Installation.

4. INSTALL STEERING COLUMN ASSEMBLY (for 1UR-FSE)

HINT
Refer to the instructions for Installation of the steering column assembly (1UR-FSE) Installation.
