Power Steering Relay: Testing and Inspection





POWER STEERING: ELECTRONIC POWER STEERING RELAY: ON-VEHICLE INSPECTION

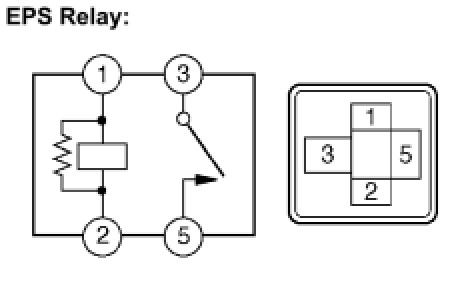

1. INSPECT ELECTRIC POWER STEERING RELAY

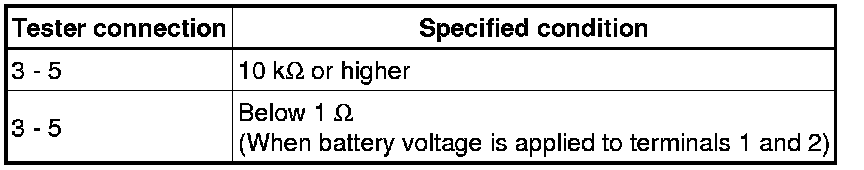

(a) Measure the resistance according to the value(s) in the table below.





Resistance:
