ABS Main Relay: Testing and Inspection

BRAKE CONTROL: ABS SOLENOID RELAY (for 2GR-FSE): ON-VEHICLE INSPECTION

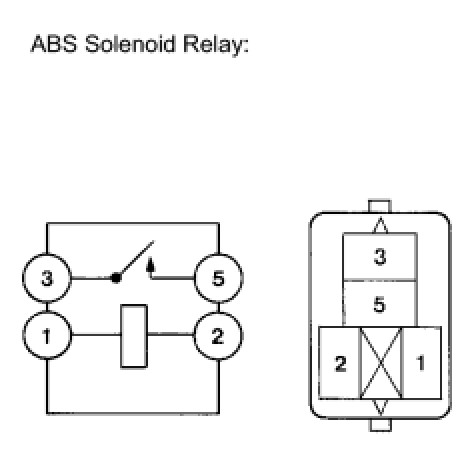

1. INSPECT ABS SOLENOID RELAY

(a) Remove the ABS solenoid relay.

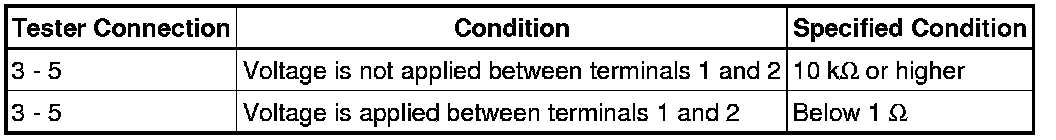

(b) Measure the resistance according to the value(s) in the table below.





Resistance:
