Emergency Contact Module
>>
Locations
>>
Safety Connect System
Safety Connect System

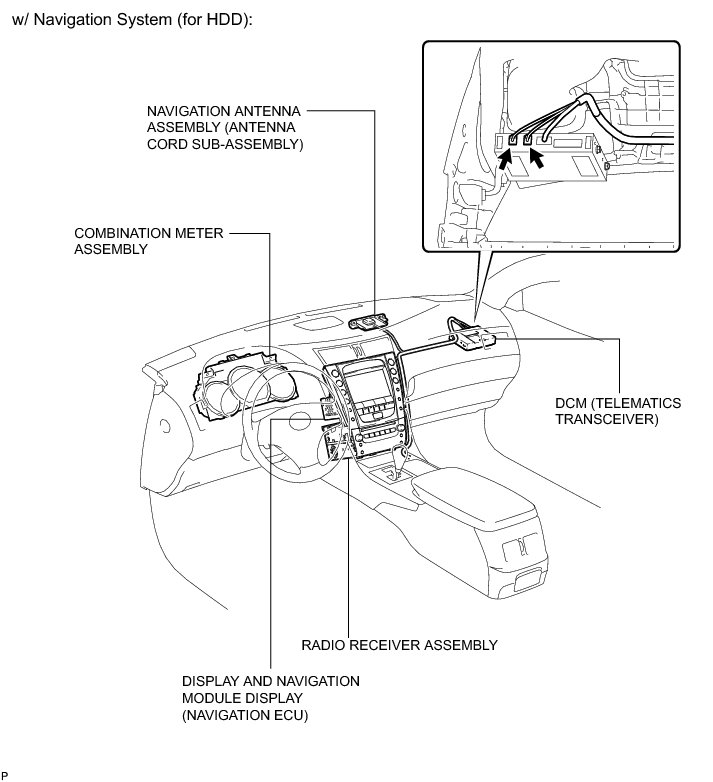

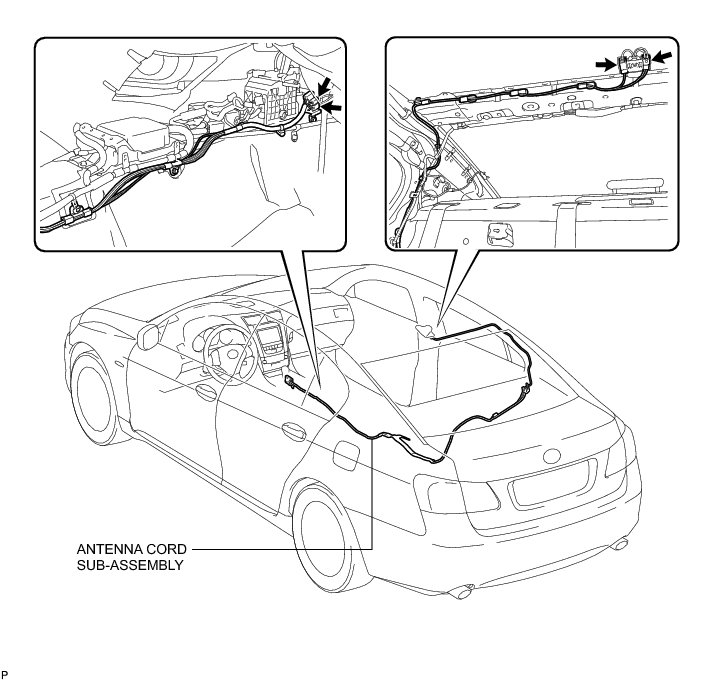

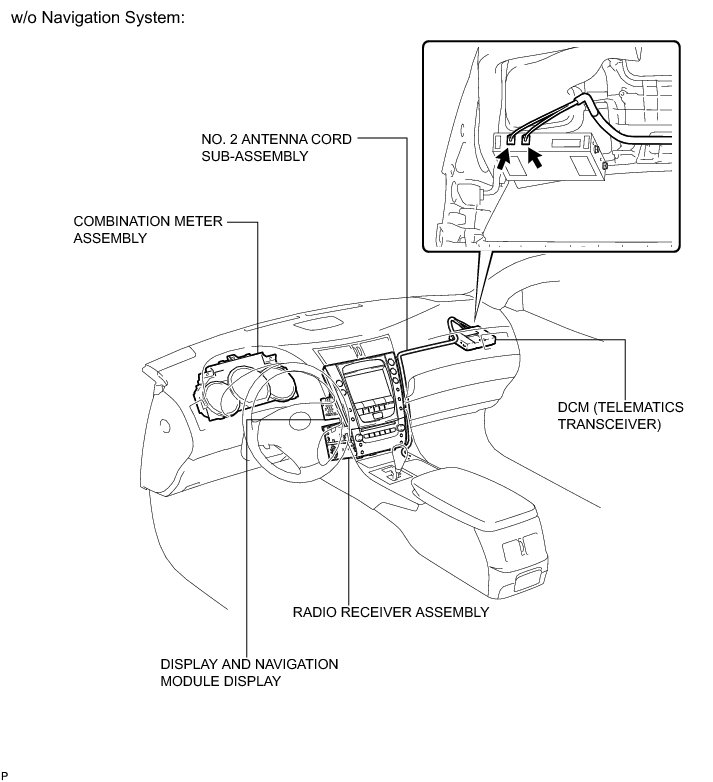

CELLULAR COMMUNICATION: SAFETY CONNECT SYSTEM: PARTS LOCATION
Instrument Panel:
