Installation
2GR-FSE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION
1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

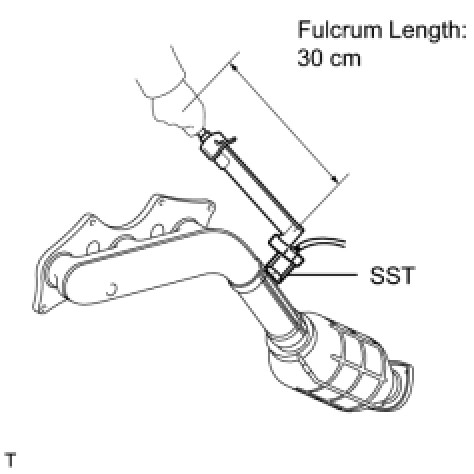

(a) Using SST, install the sensor to the exhaust manifold RH.
SST : 09224-00010
without SST - Torque : 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque : 40 Nm (408 kgf-cm, 30 ft-lbf)
HINT
* Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
* Make sure SST and the wrench are connected in a straight line.
2. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

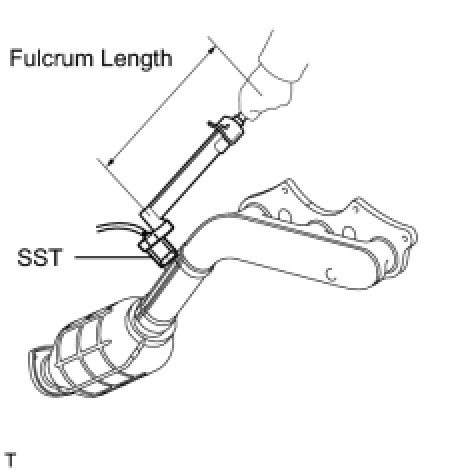

(a) Using SST, install the sensor to the exhaust manifold LH.
SST : 09224-00010
without SST - Torque : 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque : 40 Nm (408 kgf-cm, 30 ft-lbf)
HINT
* Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
* Make sure SST and the wrench are connected in a straight line.
3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
(a) Install a new gasket.
(b) Install the exhaust manifold to the cylinder head with the 6 nuts in the order shown in the illustration.
Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)
NOTICE:
Do not damage the stud bolt when installing the exhaust manifold.
(c) Connect the sensor connector.
4. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH Installation
5. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)
6. INSTALL OIL DIPSTICK GUIDE (for 4WD) Installation
7. INSTALL OIL DIPSTICK GUIDE (for 2WD) Installation
8. INSTALL FRONT EXHAUST PIPE ASSEMBLY
(a) Install the front exhaust pipe Installation.
9. INSTALL REAR ENGINE UNDER COVER RH (for 2WD)
10. INSTALL REAR ENGINE UNDER COVER LH (for 2WD)
11. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD) Installation
12. INSTALL ENGINE UNDER COVER (for 4WD)
13. INSTALL ENGINE UNDER COVER (for 2WD)
14. INSTALL BATTERY TRAY
(a) Install the battery tray with the 2 bolts.
Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)
15. INSTALL POWER STEERING ECU ASSEMBLY Installation
16. INSTALL BATTERY Installation
17. CONNECT NO. 2 RELAY BLOCK Installation
18. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation
19. CONNECT NO. 2 VENTILATION HOSE Installation
20. INSTALL V-BANK COVER Installation
21. INSTALL ENGINE ROOM SIDE COVER RH Installation
22. INSTALL ENGINE ROOM SIDE COVER LH Installation
23. INSTALL COOL AIR INTAKE DUCT SEAL Installation
24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
25. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
26. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT Installation
