Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment

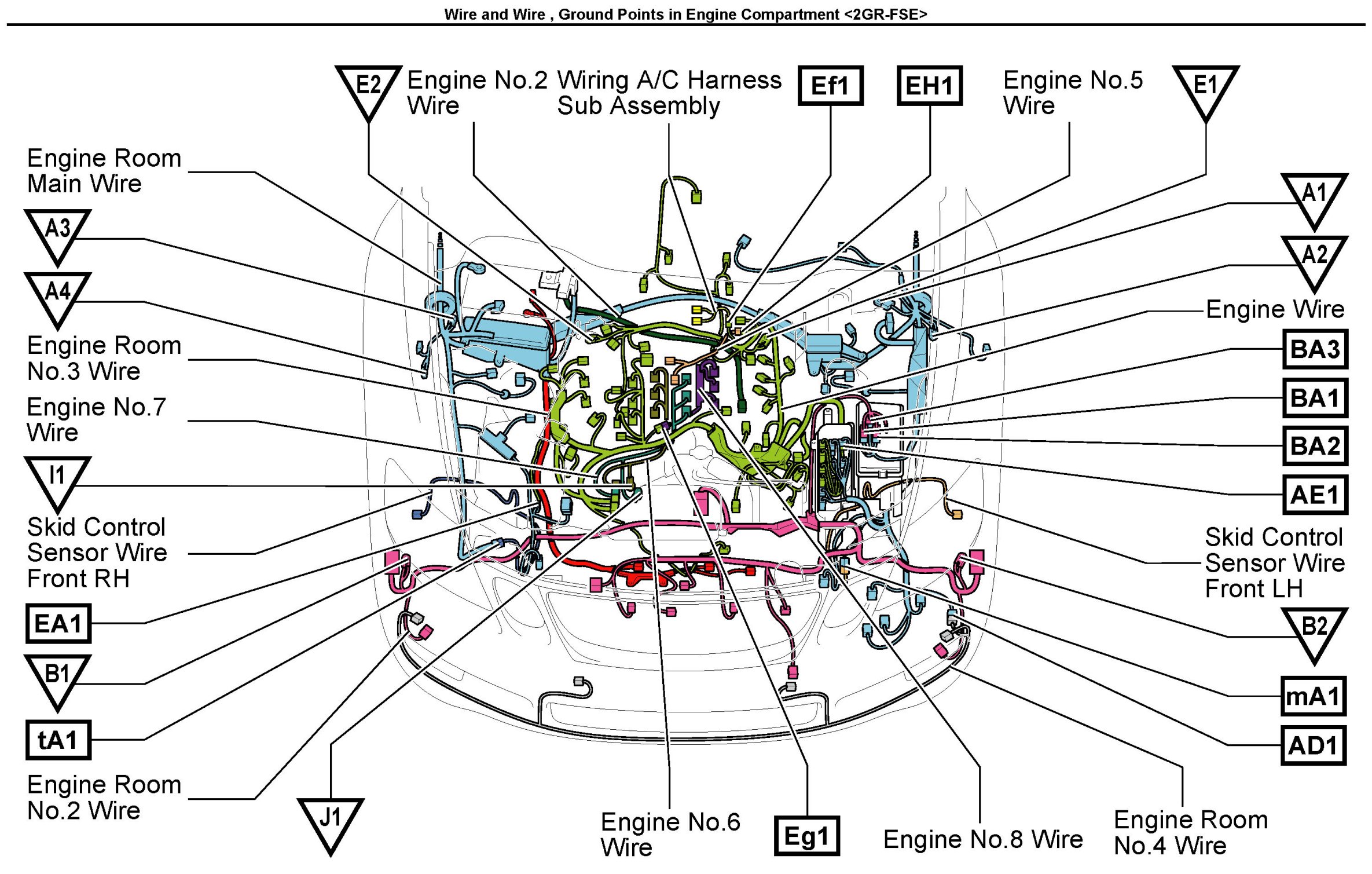

A1-J1, AD1-tA1 Position:

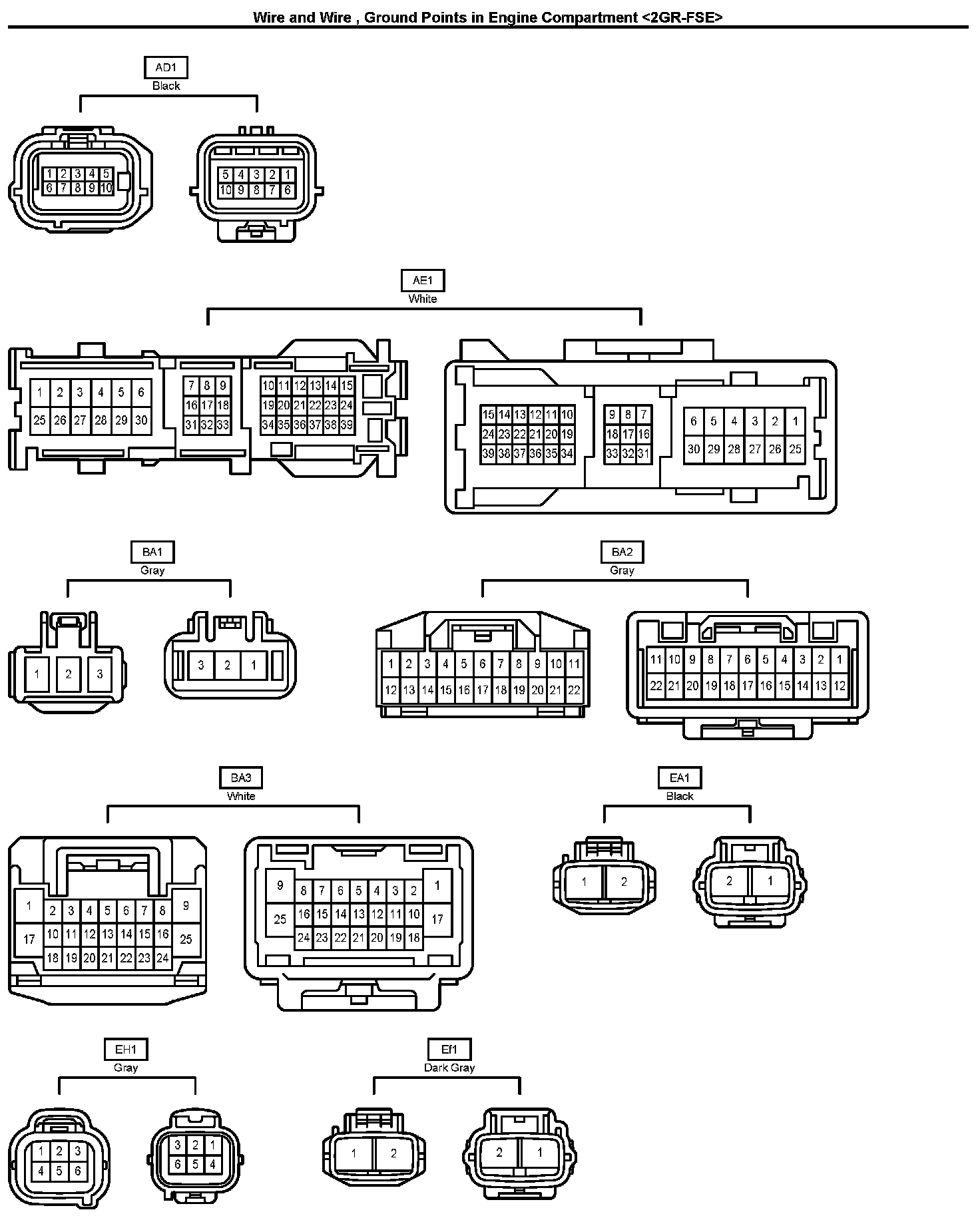

AD1-EH1 Connector Views:

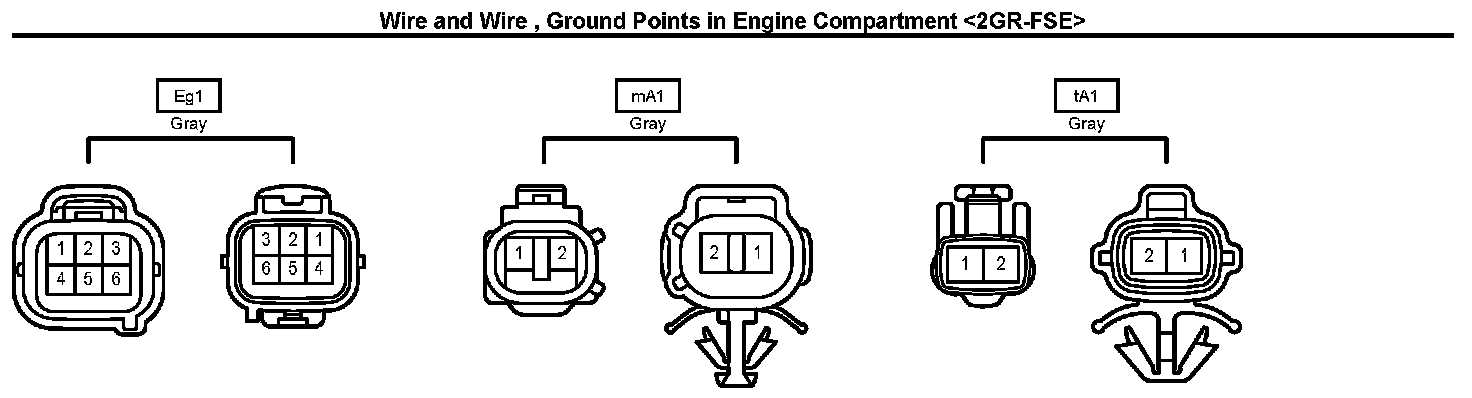

Eg1-tA1 Connector Views:
