Turn Signal Lamp: Testing and Inspection

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSPECTION

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

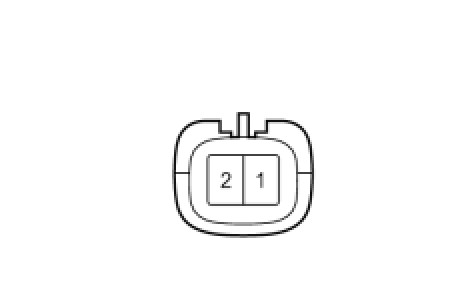

(a) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.





(b) Check that the side turn signal light comes on.

OK:

The light comes on.

(b) If the result is not as specified, replace the side turn signal light assembly.
