Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR





(a) Connect the connector.

(b) Attach the 2 claws and install the sensor to the package tray trim center bracket.

2. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY





(a) Connect the connector.

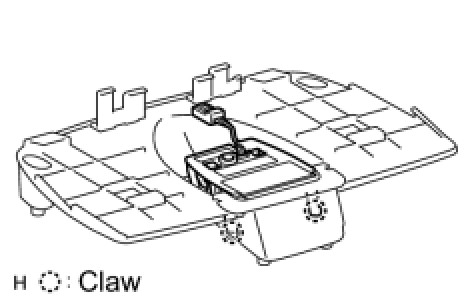

(b) Attach the 2 claws and install the stop light to the package tray trim center bracket.

3. CONNECT CONNECT BATTERY NEGATIVE TERMINAL

4. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal
