BulletinTSB2733
Issue Date
October 6, 2009
Title
INITIAL CALIBRATION OF COMPASS DURING PDS
Component
GENERAL INFORMATION

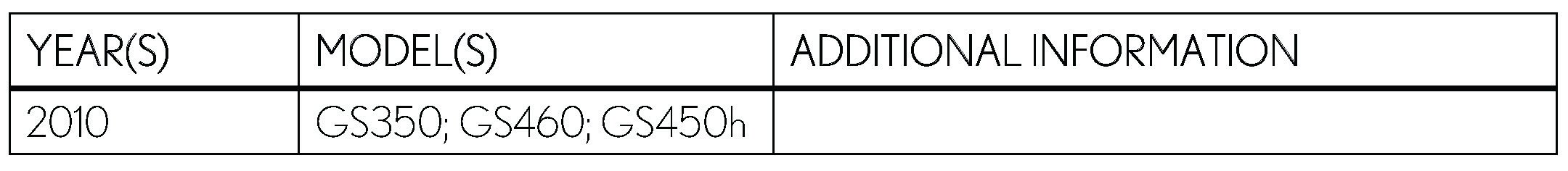

Models
'10 GS350; GS460; GS450h
INTRODUCTION:
Some 2010 model year GS350; GS460; GS450h vehicles are equipped with a compass in the rear view mirror. Use the following procedure to perform initial calibration during Pre-Delivery Service (PDS).
APPLICABILITY:

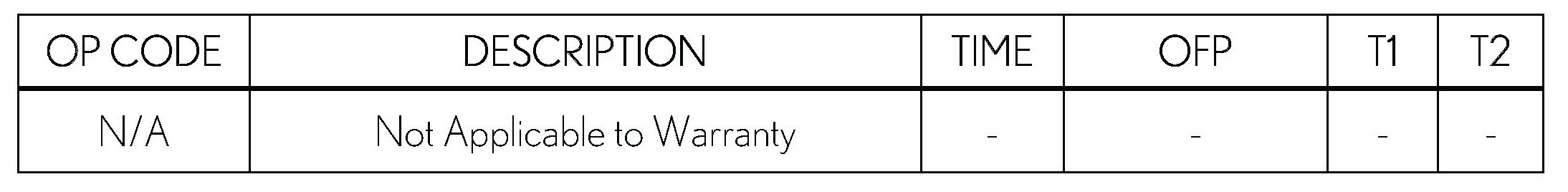

WARRANTY INFORMATION:
CALIBRATION PROCEDURE:
1. Push the "POWER" switch to select "IG-ON" mode.

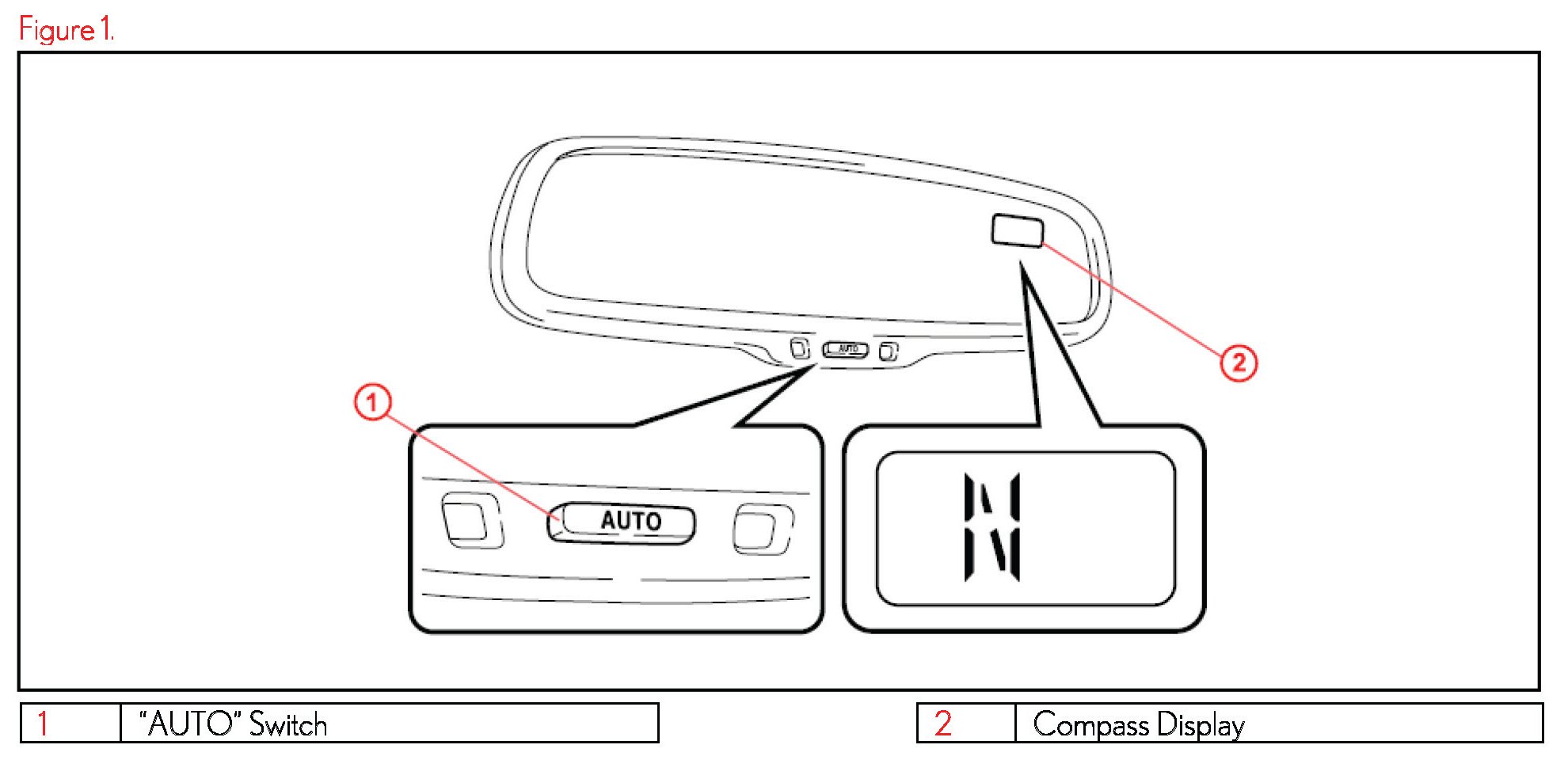

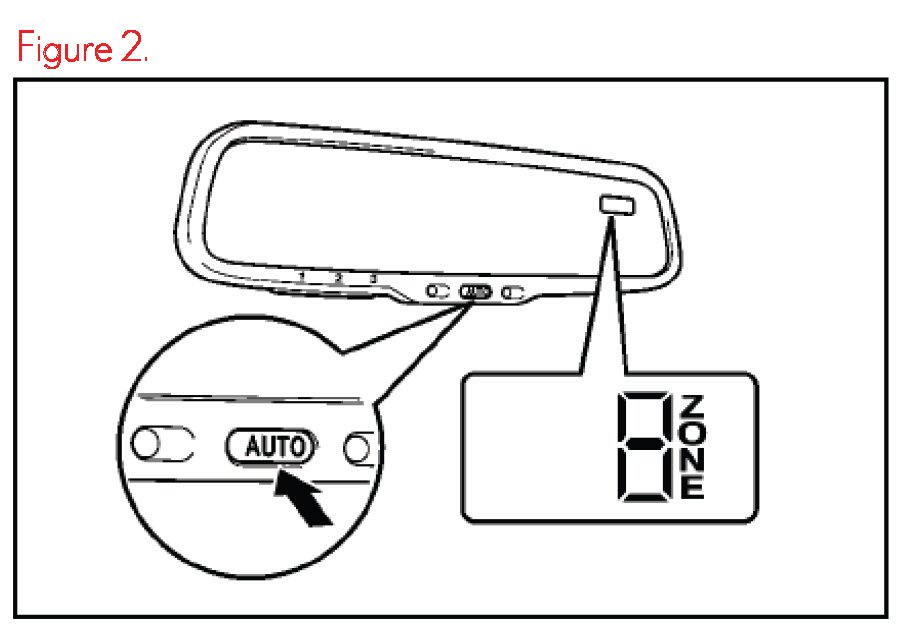

2. Push and hold the "AUTO" switch for 6 seconds until the zone number (1 - 15) appears on the display.
NOTE
Pushing the "AUTO" switch for 3 seconds turns ON or OFF the compass display.
3. Push the "AUTO" switch to select the number of the zone where the vehicle is located.

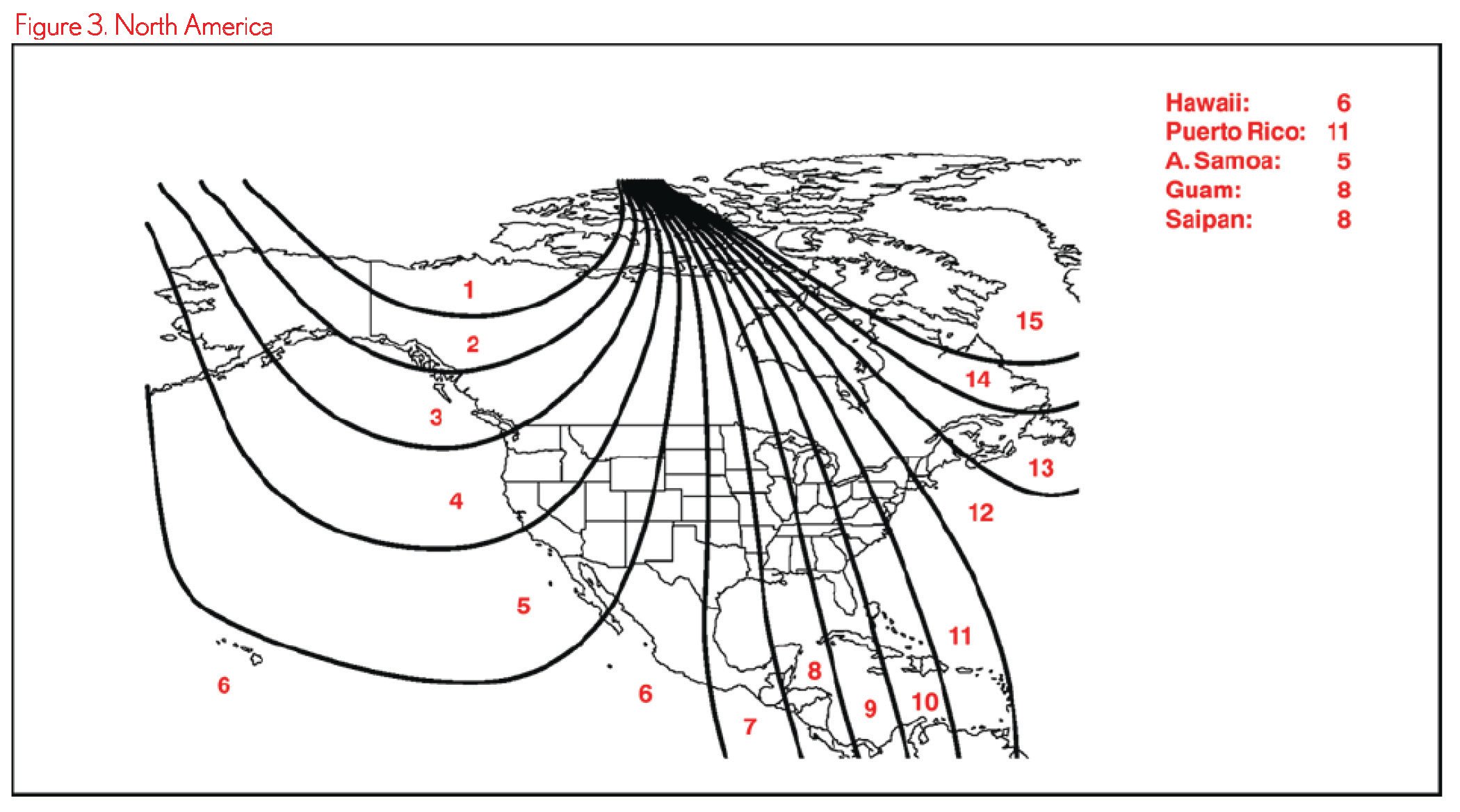

See the map in figure 3 for zone reference.
4. Start the engine/hybrid system, and push and hold the "AUTO" switch for 12 seconds until "CAL" appears on the display.

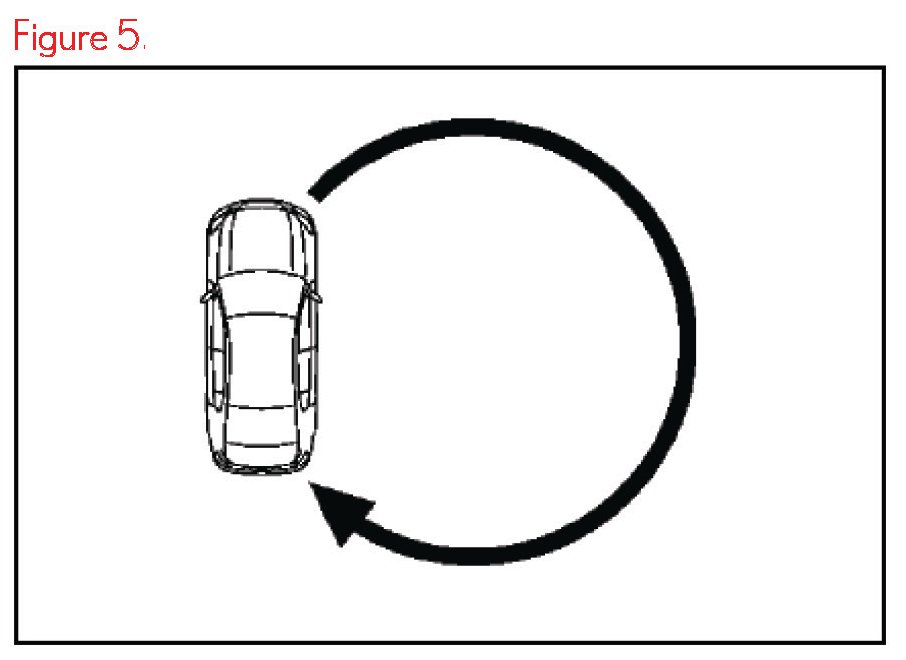

5. Drive the vehicle slowly at 8 km/h (5 mph), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.
Once the direction is displayed, the calibration is complete.
NOTE
- Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)
- During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
