Compressor: Components
Compressor: Components

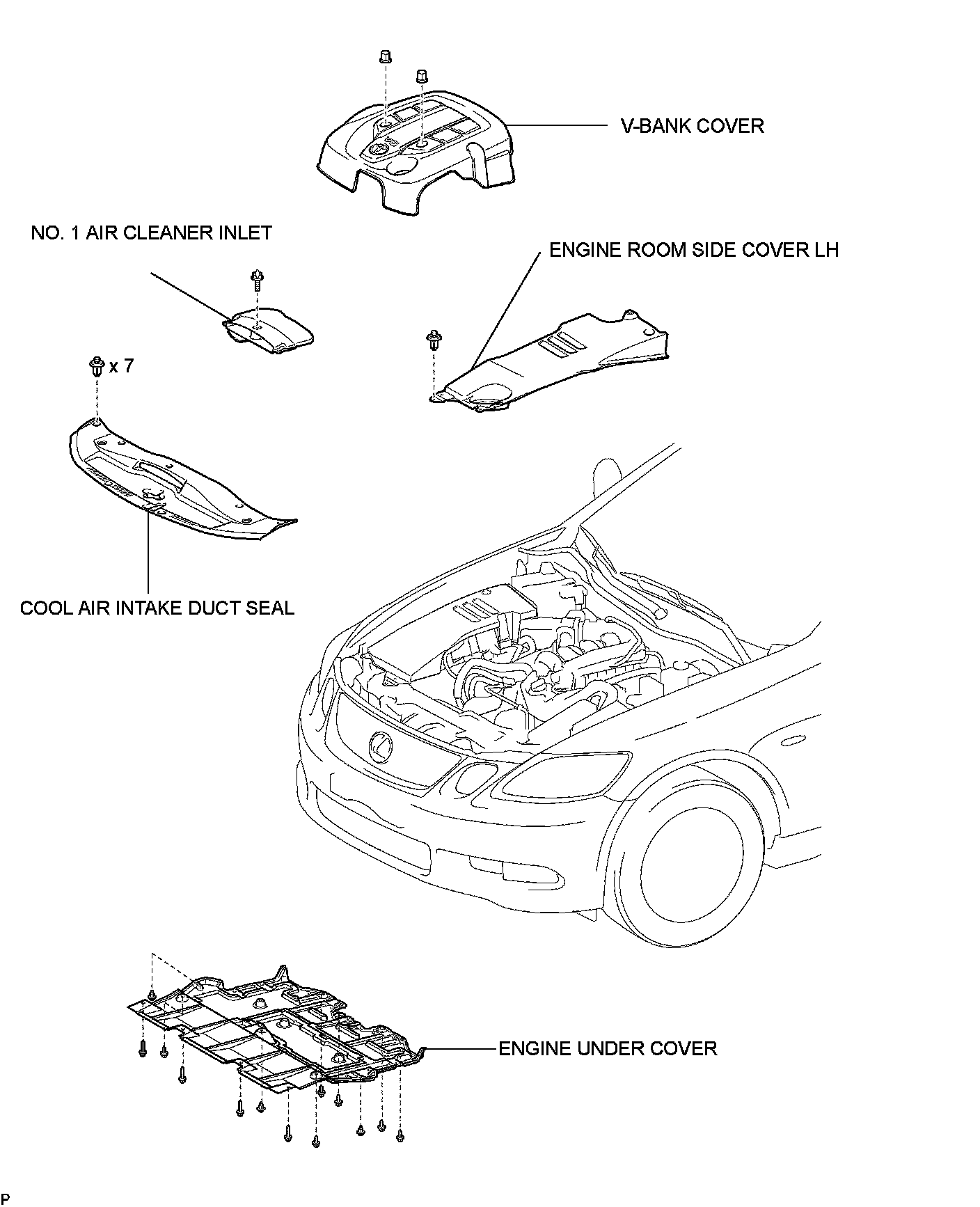

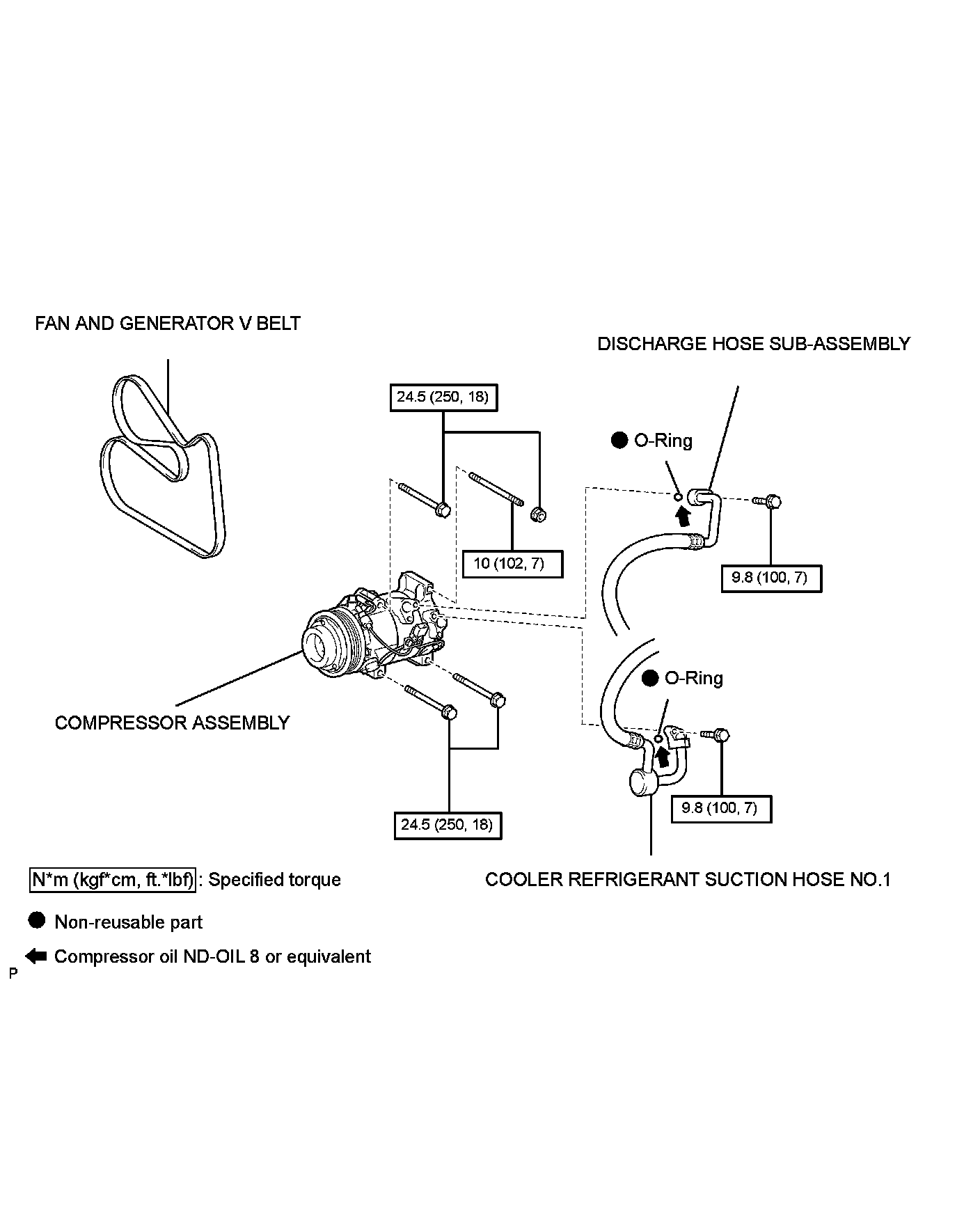

AIR CONDITIONING: COMPRESSOR (for 2GR-FSE 2WD): COMPONENTS
