Installation

BRAKE CONTROL: FRONT SPEED SENSOR (for 2WD): INSTALLATION

1. INSTALL SPEED SENSOR FRONT LH

(a) Wipe off sealant attached to the skid control sensor's fitting surface with white gasoline.

NOTICE:
Prevent foreign matter from attaching to the sensor rotor.

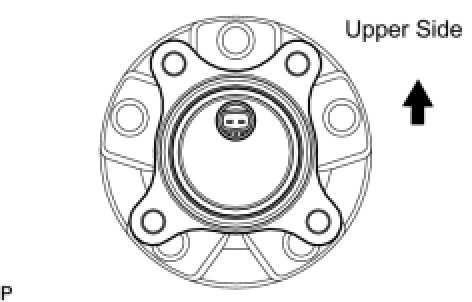

(b) Install a new skid control sensor to the hub and bearing assembly. The skid control sensor connector should be placed in the upper position.

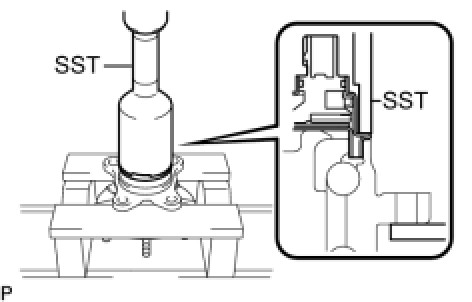

(c) Press the skid control sensor or the it becomes flat with the hub and bearing using the SST and press.





NOTICE:
* Keep the sensor away from magnets.
* Do not use a hammer on the skid control sensor.
* Check that there is no foreign matter such as iron chips on the skid control sensor's detecting portion.
* Slowly press the skid control sensor straight.
2. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH Installation

3. INSPECT FRONT AXLE HUB BEARING LOOSENESS Front Axle Hub

4. INSTALL FRONT AXLE HUB RUNOUT Front Axle Hub

5. INSTALL FRONT DISC Reassembly

6. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH Installation

7. CONNECT SPEED SENSOR FRONT LH

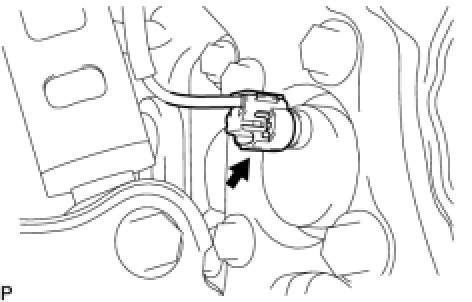

(a) Connect the speed sensor connector to the speed sensor front.

NOTICE:
Do not twist the sensor wire.





8. INSTALL FRONT WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

9. INSPECT SPEED SENSOR SIGNAL

for 2GR-FSE Test Mode Procedure

for 1UR-FSE Test Mode Procedure
