Rear Door Lock

DOOR LOCK: REAR DOOR LOCK: ON-VEHICLE INSPECTION

1. INSPECT REAR DOOR LOCK ASSEMBLY LH

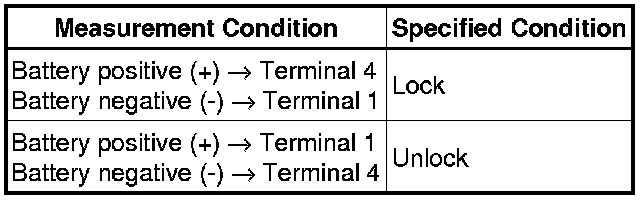

(a) Apply battery voltage to the door lock motor and check operation of the door lock motor.

OK:





(a) If the result is not as specified, replace the door lock assembly

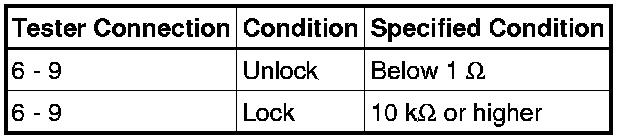

(b) Measure the resistance of the door lock position switch.

Standard resistance:





(b) If the result is not as specified, replace the door lock assembly

2. INSPECT REAR DOOR LOCK ASSEMBLY RH





(a) Apply battery voltage to the door lock motor and check operation of the door lock motor.

OK:





(a) If the result is not as specified, replace the door lock assembly

(b) Measure the resistance of the door lock position switch.

Standard resistance:





(b) If the result is not as specified, replace the door lock assembly
