Installation

EXTERIOR: NAME PLATE: INSTALLATION

HINT
When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

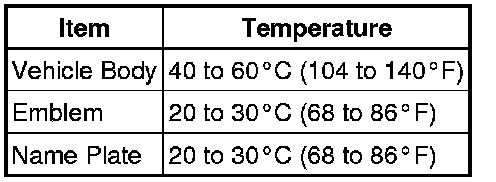

Heating temperature:





NOTICE:
Do not heat the vehicle body, emblem and name plate excessively.

1. INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) If reusing the emblem:

Clean the emblem.

(1) Using a heat light, heat the emblem.

(2) Remove the double-sided tape from the emblem.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the emblem.

(c) Install the emblem.

(1) Using a heat light, heat the vehicle body and emblem.

(2) Remove the peeling paper from the face of the emblem.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the emblem.

2. INSTALL LUGGAGE COMPARTMENT NO. 1 DOOR NAME PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) If reusing the name plate:

Clean the name plate.

(1) Using a heat light, heat the name plate.

(2) Remove the double-sided tape from the name plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the name plate.

(c) Install the name plate.

(1) Using a heat light, heat the vehicle body and name plate.

(2) Remove the peeling paper from the face of the name plate.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the name plate.

3. INSTALL LUGGAGE COMPARTMENT NO. 3 DOOR PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) If reusing the door plate:

Clean the door plate.

(1) Using a heat light, heat the door plate.

(2) Remove the double-sided tape from the door plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the door plate.

(c) Install the door plate.

(1) Using a heat light, heat the vehicle body and door plate.

(2) Remove the peeling paper from the face of the door plate.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the door plate.
