Customize Parameters

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE PARAMETERS (TECHSTREAM)

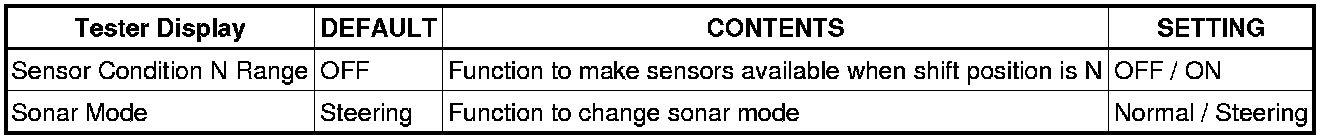

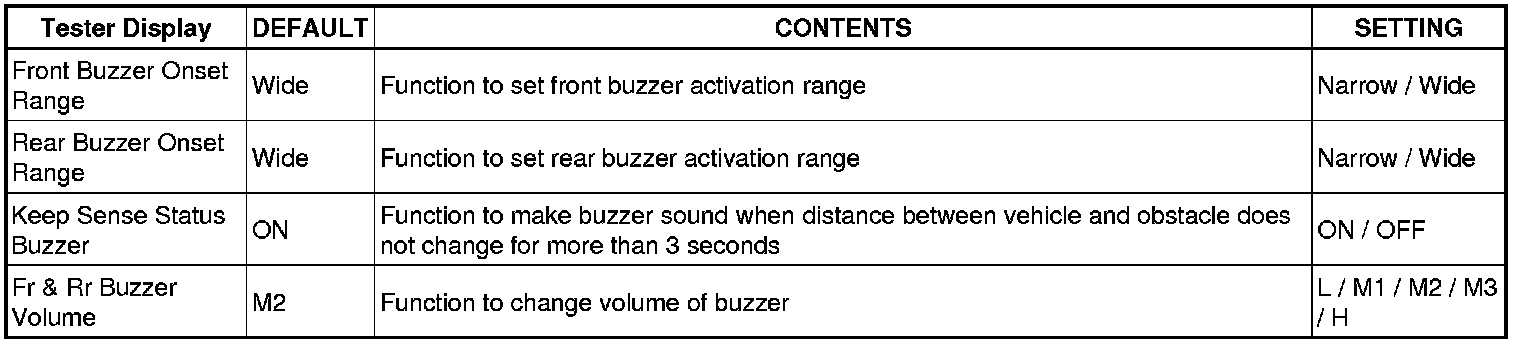

(a) The following items can be customized.

NOTICE:
* Before performing customizing, make sure the multi-display (AVC-LAN communication component) is not in diagnostic mode.
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.














2. CUSTOMIZE MODE (MANUAL OPERATION METHOD)

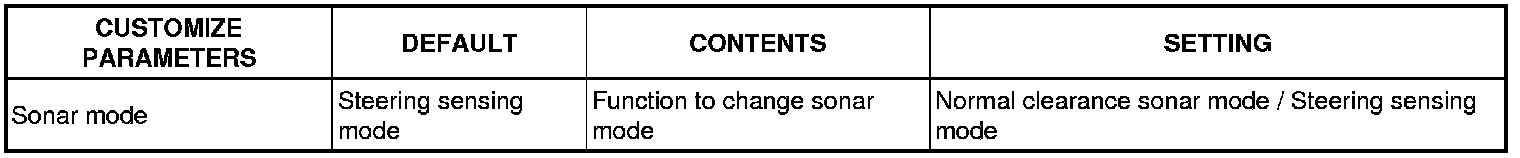

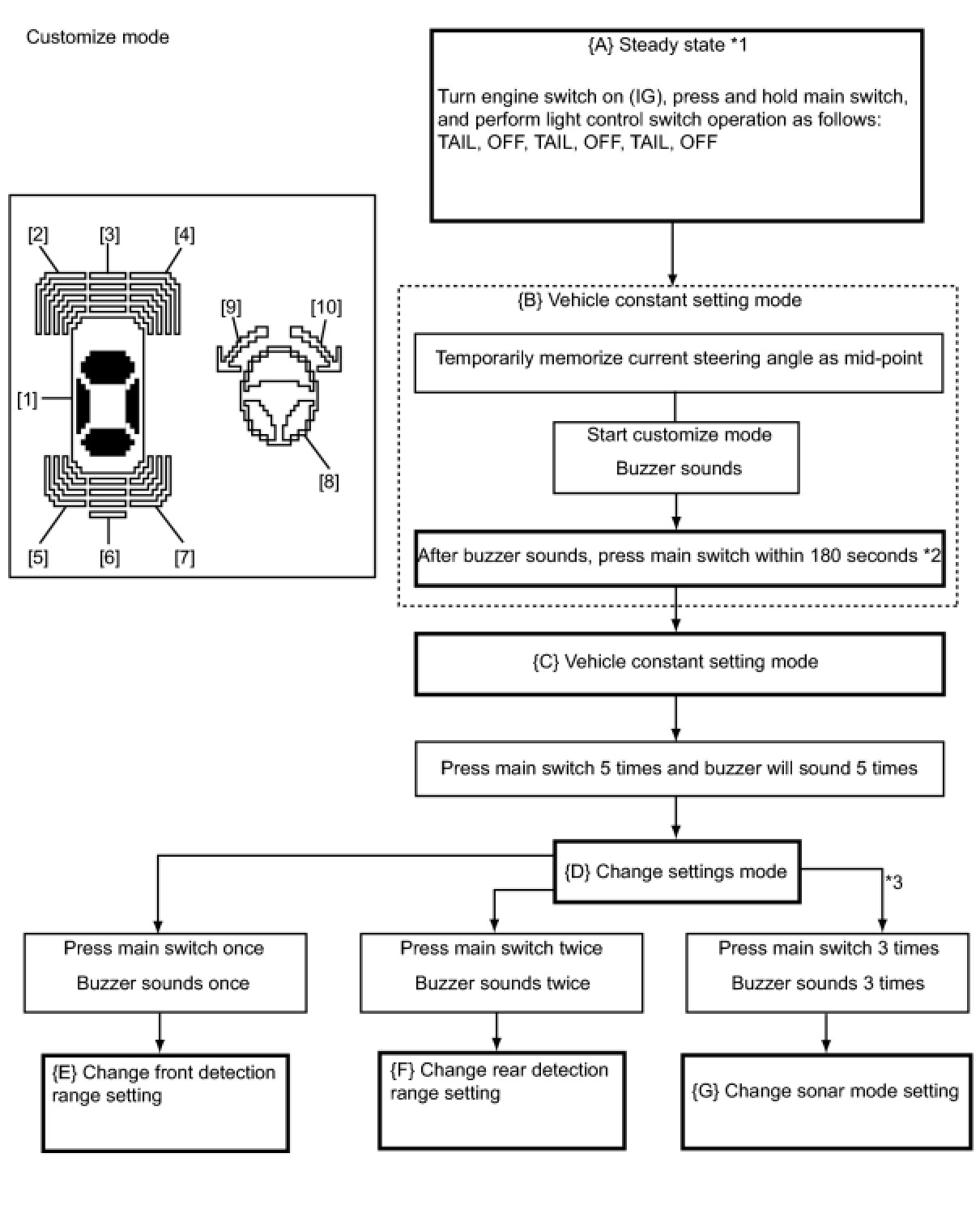

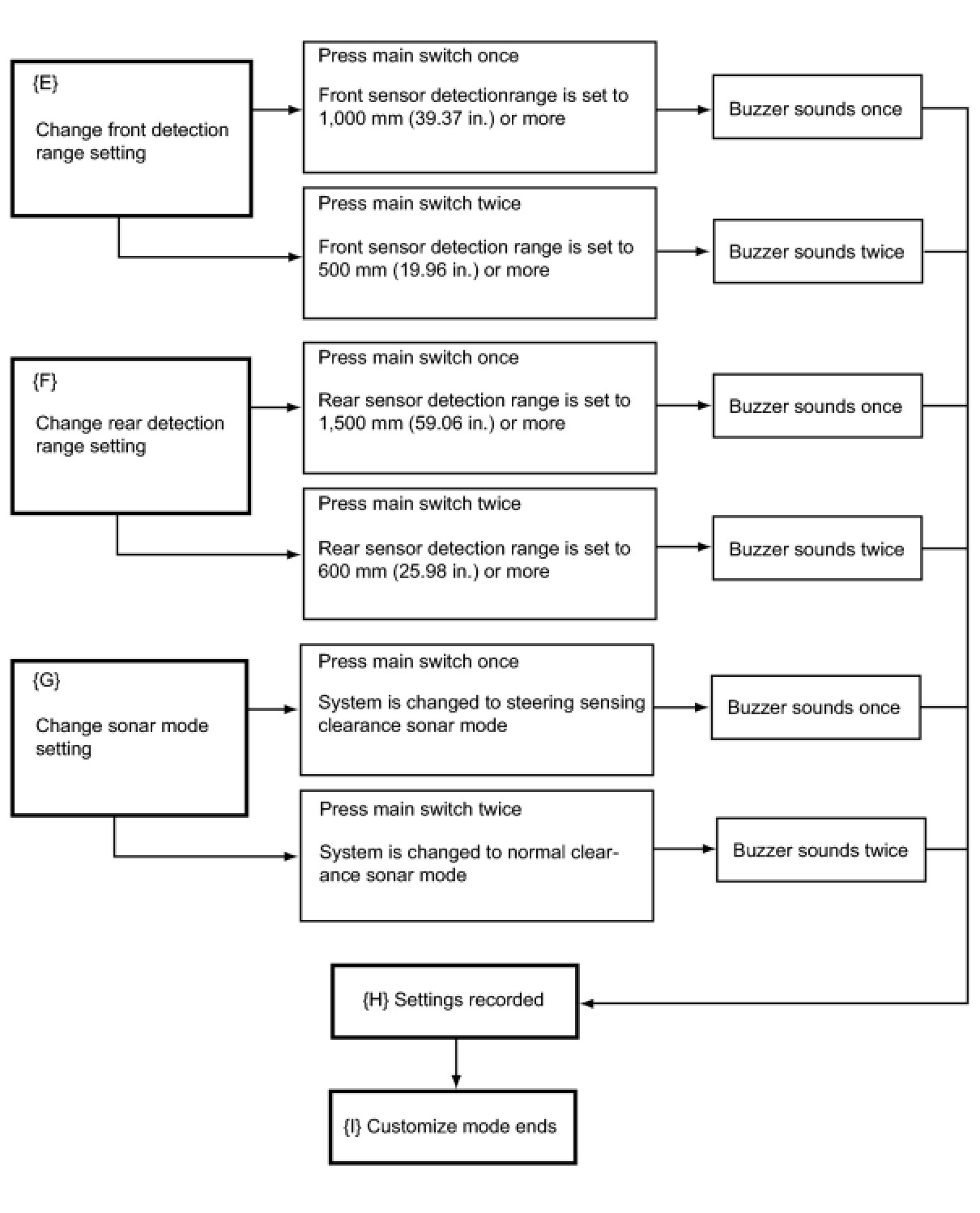

(a) The settings shown below can be changed using customize mode. Enter customize mode by pressing and holding the clearance sonar main switch, and setting the light control switch from TAIL to OFF 3 times.









NOTICE:
Check that the steering wheel is centered and the tires are aligned straightforward before changing to customize mode.





HINT
*1: Steering wheel is centered (tires aligned straightforward).

*2: If 180 seconds pass, customize mode will end.

*3: If a steering angle malfunction occurs, customize mode will proceed to {H} (customize mode ends).

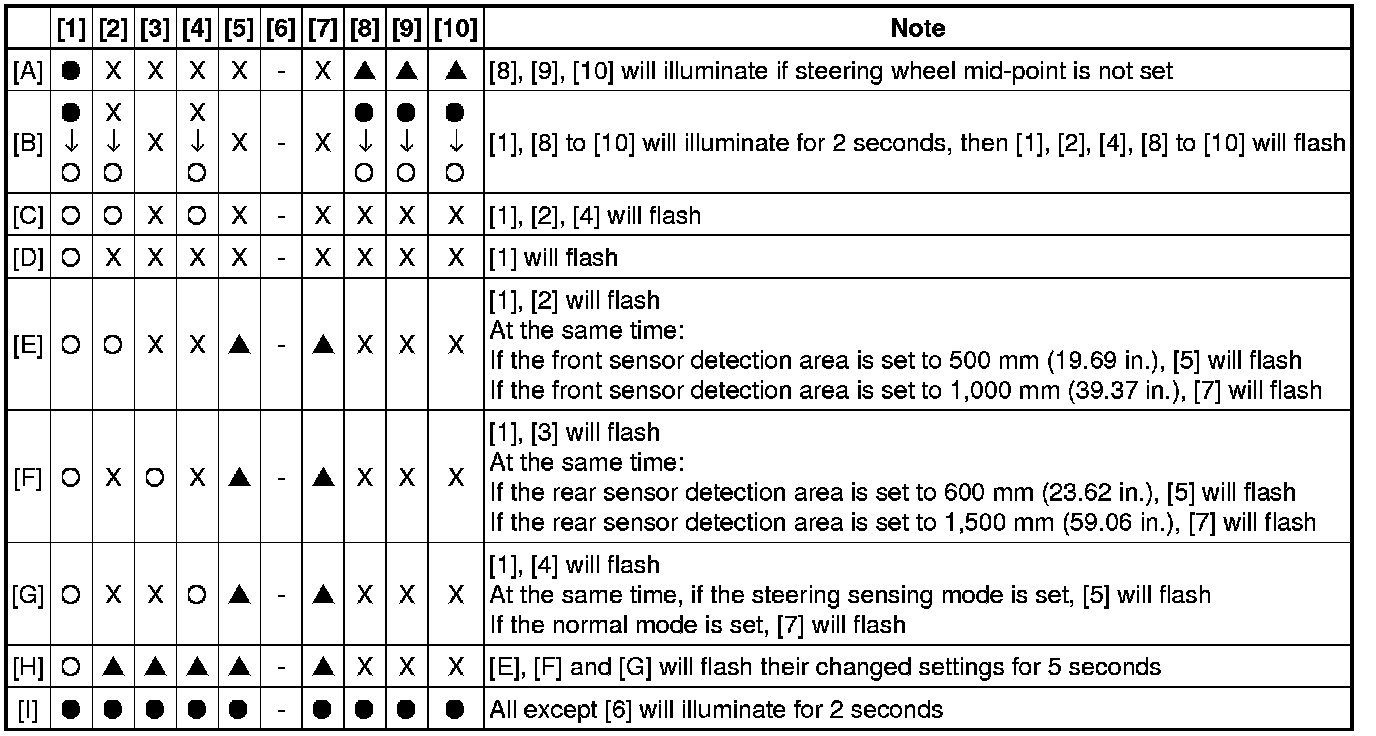

* ●: Illumination

* o: Flashing

* [Triangle]: Flashes depending on condition

* X : No illumination or flashing
