Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: TERMINALS OF ECU

1. REAR TELEVISION CAMERA ASSEMBLY





(a) Disconnect the Y8 connector from the rear television camera assembly.

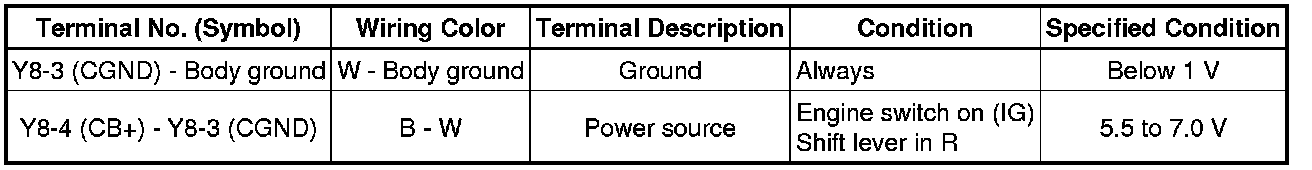

(b) Measure the voltage of each terminal of the wire harness side connector.





(b) If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the Y8 connector to the rear television camera assembly.

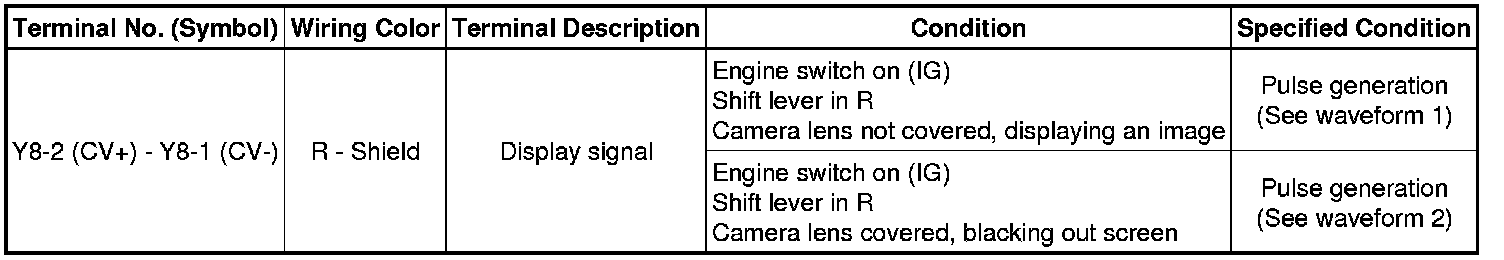

(d) Check for pulses between each terminal of the connector.





(d) If the result is not as specified, the camera may have a malfunction.

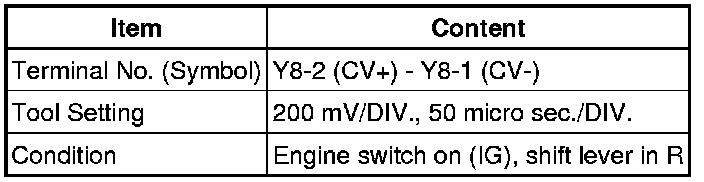

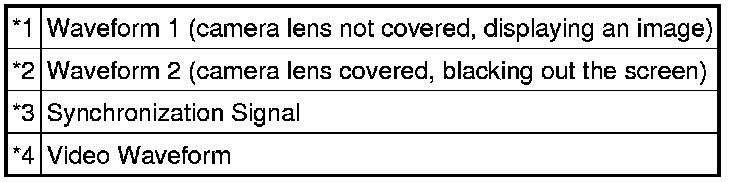

(e) Reference (Oscilloscope waveform):





(1) Waveform 1 (camera lens is not covered, displaying an image)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.





2. DISPLAY AND NAVIGATION MODULE DISPLAY (for Navigation System (for HDD)) Navigation System (for HDD)

3. DISPLAY AND NAVIGATION MODULE DISPLAY (for Navigation System (for DVD)) Navigation System (for DVD)

4. DISPLAY AND NAVIGATION MODULE DISPLAY (for Electro Multi Vision System) Pinout Values and Diagnostic Parameters
