Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the rear view monitor system.
* *: Use the Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

(a) Measure the battery voltage.

Standard Voltage:

11 to 14 V

(a) If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

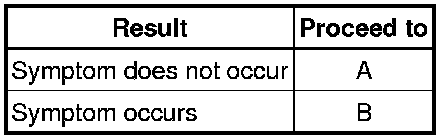

Result:





B -- Go to step 6
A -- Continue to next step.

5. SYMPTOM SIMULATION

NEXT -- Continue to next step.

6. CHECK FOR DTC (OTHER SYSTEMS)*

(a) Refer to DTC Check/Clear for the corresponding system.

* Navigation System (for HDD) Navigation System (for HDD)

* Navigation System (for DVD) Navigation System (for DVD)

* Electro Multi Vision System Reading and Clearing Diagnostic Trouble Codes

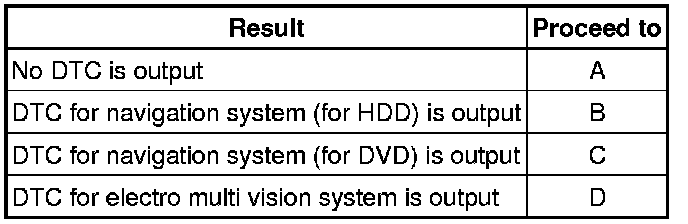

Result:





B -- Go to NAVIGATION SYSTEM (for HDD) Navigation System (for HDD)

C -- Go to NAVIGATION SYSTEM (for DVD) Navigation System (for DVD)

D -- Go to ELECTRO MULTI VISION SYSTEM Electro Multi Vision System
A -- Continue to next step.

7. CHECK IF THE SAME SYMPTOM APPEARS IN THE OTHER SYSTEMS

(a) Refer to Problem Symptoms Table for the corresponding system.

* Navigation System (for HDD) Problem Symptoms Table

* Navigation System (for DVD) Problem Symptoms Table

* Electro Multi Vision System Problem Symptoms Table

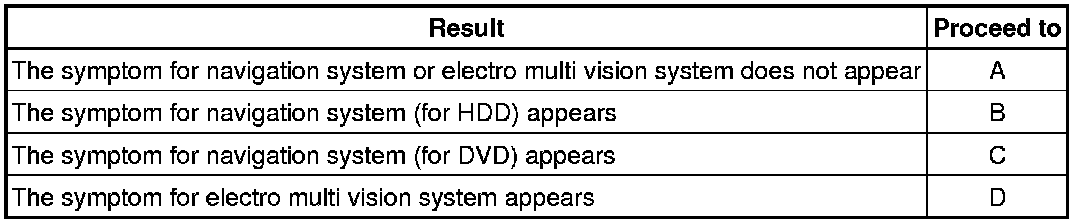

Result:





B -- Go to NAVIGATION SYSTEM (for HDD) (FOLLOW PROBLEM SYMPTOMS TABLE TO PERFORM TROUBLESHOOTING)

C -- Go to NAVIGATION SYSTEM (for DVD) (FOLLOW PROBLEM SYMPTOMS TABLE TO PERFORM TROUBLESHOOTING)

D -- Go to ELECTRO MULTI VISION SYSTEM (FOLLOW PROBLEM SYMPTOMS TABLE TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

8. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

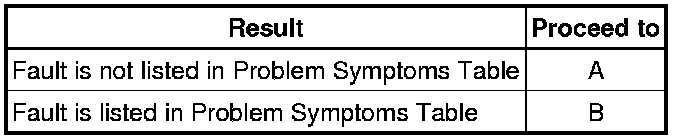

Result:





B -- Go to step 10
A -- Continue to next step.

9. BASED ON MALFUNCTION SYMPTOM, PERFORM TROUBLESHOOTING BELOW

(a) Terminals of ECU Rear View Monitor System

NEXT -- Continue to next step.

10. CIRCUIT INSPECTION

NEXT -- Continue to next step.

11. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

12. CONFIRMATION TEST

NEXT -- END
