How To Proceed With Troubleshooting

THEFT DETERRENT: THEFT DETERRENT SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the theft deterrent system.
* *: Use the Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX COMMUNICATION SYSTEM (BEAN)*

(a) Use the Techstream to check if the Multiplex Communication System (MPX) is functioning normally.

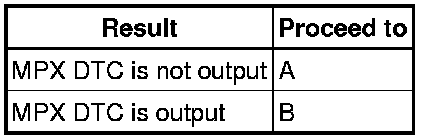

Result:





B -- GO TO MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.

4. PROBLEM SYMPTOMS TABLE

Result:





B -- Go to step 6
A -- Continue to next step.

5. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Data List/Active Test

(b) Terminals of ECU

(c) On-vehicle Inspection

(d) Inspection

NEXT -- Continue to next step.

6. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

7. CONFIRMATION TEST

NEXT -- END
