Smart Access System With Push-Button Start

DOOR LOCK: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)

HINT

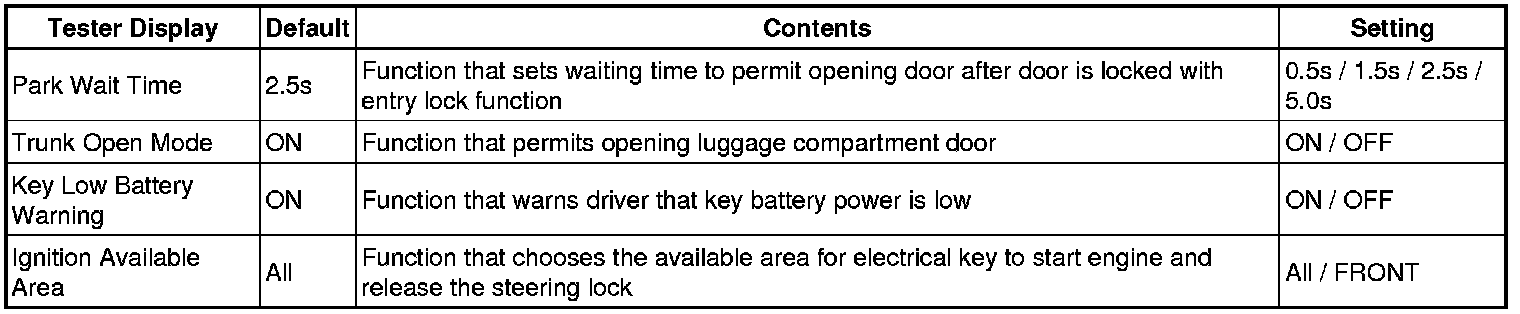

The items in the table below can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current setting before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

Smart access system with push-button start:





2. ENTRY UNLOCK MODE SWITCHING FUNCTION

NOTICE:
Because the key (for card type) does not have a wireless transmitter function, it cannot be used to change the entry unlock mode.

(a) To change the vehicle to entry unlock mode switching function, make sure that the vehicle power is off and simultaneously press and hold the key LOCK switch and another key switch for 5 seconds.

* Driver door unlock default setting:

* When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door mode, one door mode, doors on one side mode, all doors mode.

NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

* Driver door unlock mode:

* When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

* All door unlock mode:

* When a touch sensor is touched, all doors unlock.

* One door mode:

* When a touch sensor is touched, the touch sensor door unlocks. For example, if the driver door touch sensor is touched, the driver door unlocks.

* Doors on one side mode:

* When a touch sensor is touched, the doors on the side of the touch sensor unlock. For example, when the driver door touch sensor is touched, the driver door and driver side rear door unlock.

(b) The certification ECU receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.

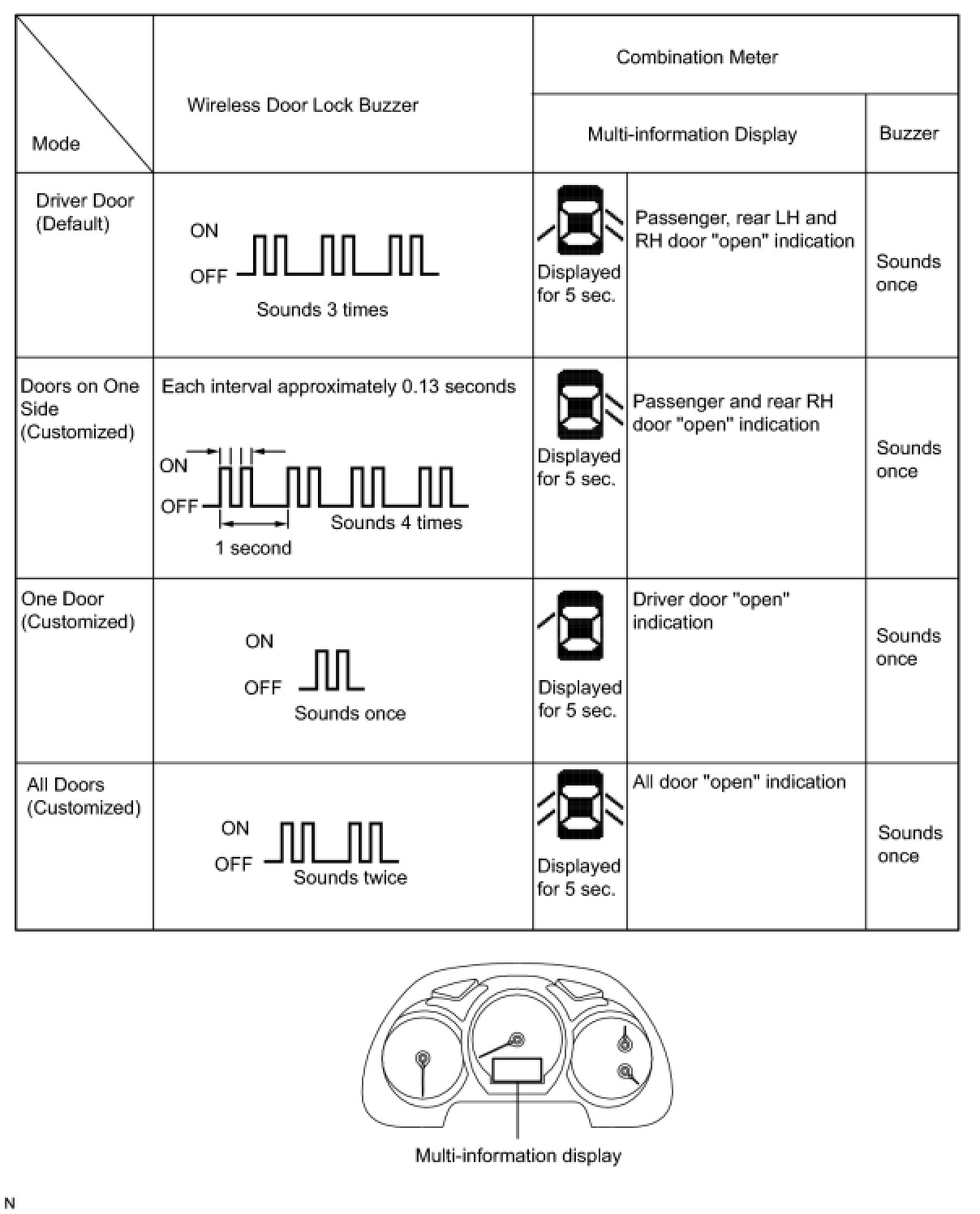

(c) The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.





HINT
The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.

3. KEY CANCEL

NOTICE:
Because the key (for card type) does not have a wireless transmitter function, it cannot be used to perform the key cancel operation.

The key cancel operation disables the following functions:

* Entry Ignition

* Entry Unlock / Lock

* Entry Luggage Compartment Open

* Key Lock-in Prevention

* Warning

* Memory Call

(a) The operation procedure is as follows:

Precondition:

Engine switch off, driver side door closed and unlocked

(1) Unlock the driver side door once with the UNLOCK switch of the key.

(2) Open the driver door within 5 seconds.

(3) Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.

(4) Close and open the driver door twice within 30 seconds.

(Driver door: Close -> Open -> Close -> Open)

(5) Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.

(6) Close and open the driver door within 30 seconds.

(Driver door: Close -> Open)

(7) Close the driver door within 5 seconds.

When key cancel is activated, the wireless door lock buzzer sounds twice.

To return to the original condition, perform this procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.
