Installation
AUDIO / VISUAL: AMPLIFIER ANTENNA: INSTALLATION
1. INSTALL AMPLIFIER ANTENNA ASSEMBLY
(a) Use white gasoline to clean the area on the glass where the antenna will be installed.
NOTICE:
Do not use white gasoline to clean the antenna's contact points. Doing so may cause improper contact between the antenna and glass.

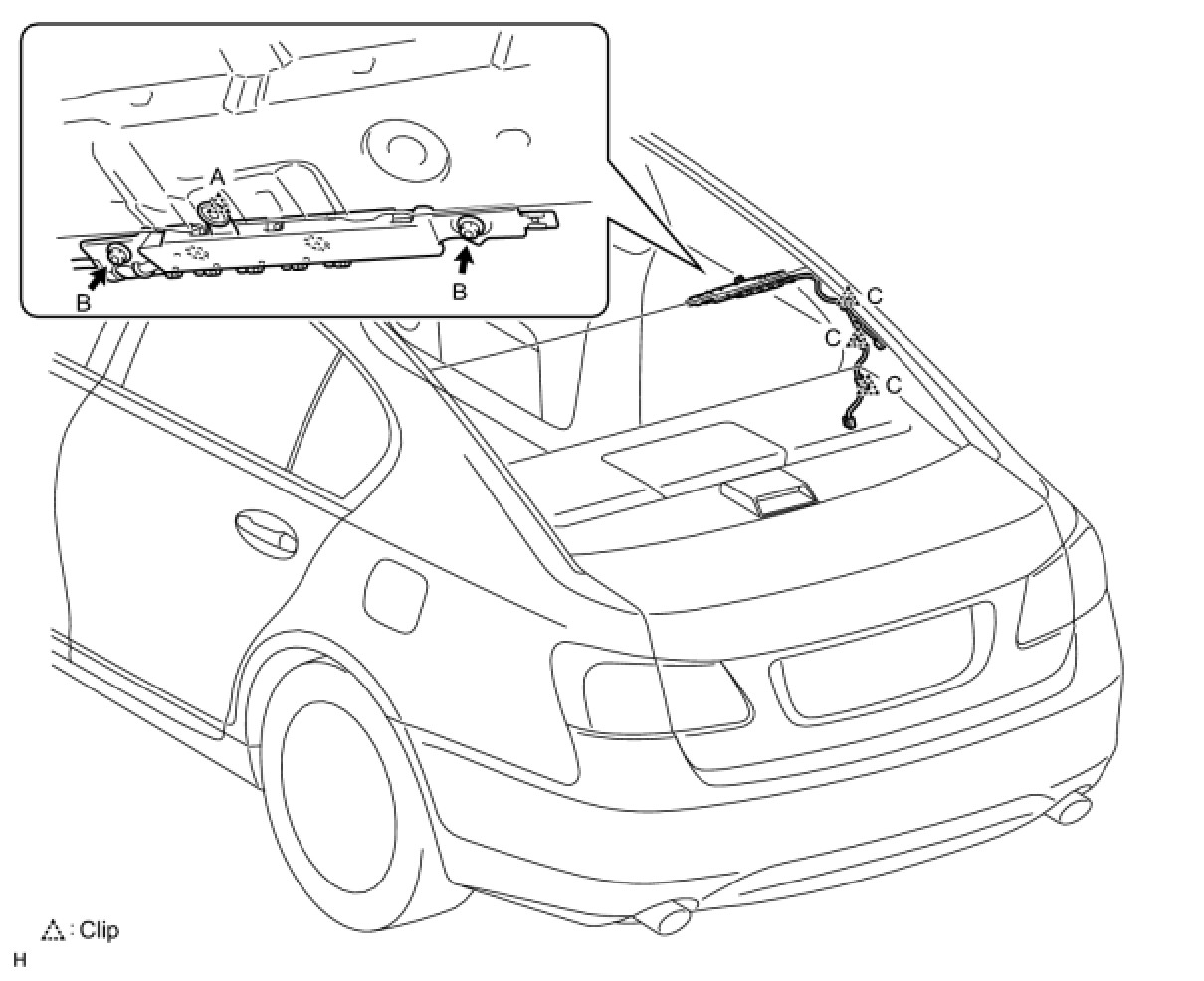

(b) Temporarily install the antenna with the clip labeled A, and then install the antenna with the 2 nuts labeled B.
Torque : 14 Nm (143 kgf-cm, 10 ft-lbf)
NOTICE:
* Just before installing the antenna to the glass, remove the protective cover of the antenna's contact points.
* When removing the protective cover of the antenna's contact points, make sure the cover does not touch the contact points.
* Never touch the contact points after removing the protective cover.
* After removing the protective cover, return it to the manufacturer for recycling.
* Do not reuse the clip labeled A.
(c) Attach the 3 clips labeled C.
(d) Connect the connectors.
2. INSTALL ROOF HEADLINING ASSEMBLY Installation
3. INSTALL VISOR HOLDER
4. INSTALL LH VISOR ASSEMBLY Installation
5. INSTALL RH VISOR ASSEMBLY Installation
6. INSTALL VISOR BRACKET COVER Installation
7. INSTALL STEERING SPOT LIGHT ASSEMBLY Installation
8. INSTALL ASSIST GRIP ASSEMBLY
9. INSTALL REAR ROOM LIGHT ASSEMBLY Installation
10. INSTALL INNER REAR VIEW MIRROR ASSEMBLY Installation
11. INSTALL PERSONAL LIGHT ASSEMBLY Installation
12. INSTALL ROOF TOP GARNISH FRONT Installation
13. INSTALL INNER REAR VIEW MIRROR COVER
14. INSTALL ROOF SIDE GARNISH INNER LH Installation
15. INSTALL ROOF SIDE GARNISH INNER RH Installation
16. INSTALL REAR SEAT SIDE GARNISH LH Installation
17. INSTALL REAR SEAT SIDE GARNISH RH Installation
18. INSTALL CENTER PILLAR GARNISH LH Installation
19. INSTALL CENTER PILLAR GARNISH RH Installation
20. INSTALL CENTER PILLAR GARNISH LOWER LH Installation
21. INSTALL CENTER PILLAR GARNISH LOWER RH Installation
22. INSTALL REAR DOOR SCUFF PLATE LH Installation
23. INSTALL REAR DOOR SCUFF PLATE RH Installation
24. INSTALL FRONT PILLAR GARNISH LH Installation
25. INSTALL FRONT PILLAR GARNISH RH Installation
26. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
27. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation
28. INSTALL FRONT DOOR SCUFF PLATE LH Installation
29. INSTALL FRONT DOOR SCUFF PLATE RH Installation
30. INSTALL CONSOLE BOX Installation
31. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation
32. INSTALL CONSOLE BOX PLATE Installation
33. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
34. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
35. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation
36. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation
37. INSTALL REAR SEATBACK ASSEMBLY Installation
38. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER
39. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH
40. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
41. INSTALL FRONT SEAT ASSEMBLY Installation
42. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH Installation
43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
44. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
45. INSPECT FRONT POWER SEAT CONTROL SYSTEM
(a) Inspect front power seat control system Front Power Seat Control System.
(b) Inspect front power seat control system (w/ seat position memory system) On-Vehicle Inspection.
46. INSPECT SEAT HEATER CONTROL
(a) Inspect seat heater control Testing and Inspection.
47. INSPECT CLIMATE CONTROL SEAT SYSTEM
(a) Inspect climate control seat system On-Vehicle Inspection.
48. INSPECT SEAT BELT WARNING SYSTEM
(a) Inspect seat belt warning system On-Vehicle Inspection.
