Dynamic Radar Cruise Control System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: U0126: Lost Communication with Steering Angle Sensor Module

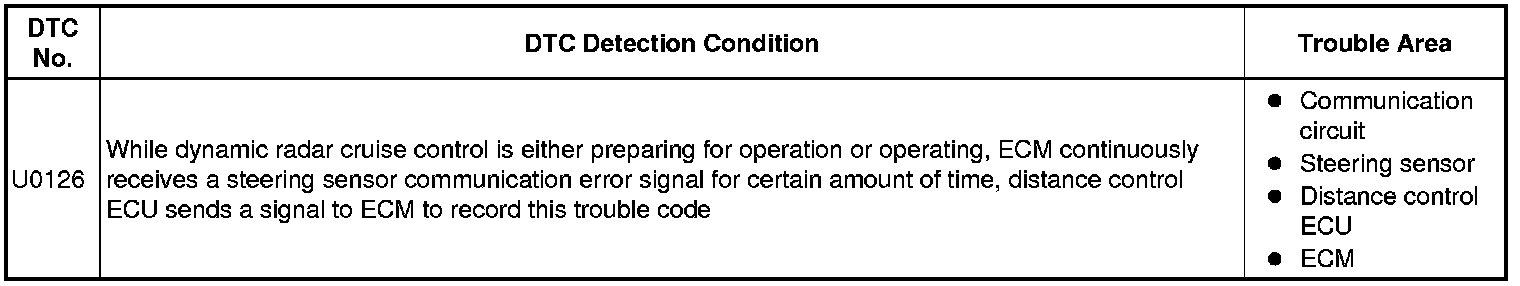

U0126 - Lost Communication with Steering Angle Sensor Module

DESCRIPTION

This circuit detects the angle and direction of the steering wheel and automatically transmits a signal to the skid control ECU and distance control ECU.





INSPECTION PROCEDURE

HINT
This circuit uses CAN communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system are output.

0. GO TO CAN COMMUNICATION SYSTEM

Refer to how to proceed with troubleshooting How to Proceed With Troubleshooting.
