A760E Automatic Transmission

A760E AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: U0100: Lost Communication with ECM / PCM "A"
U0100 - Lost Communication with ECM / PCM "A"

DESCRIPTION

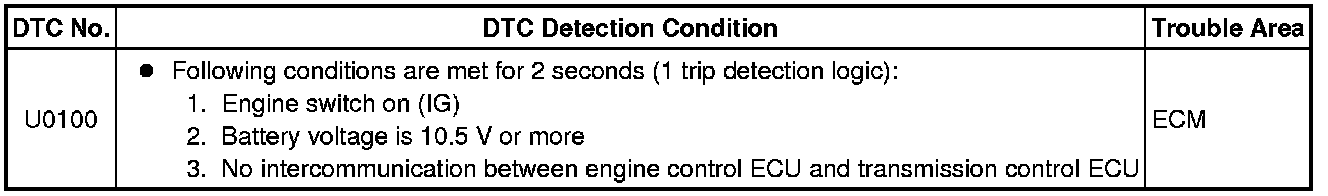

The engine control unit and the transmission control unit are located inside the ECM. The engine control unit intercommunicates with the transmission control ECU through the Controller Area Network (CAN).

If there is a problem in this intercommunication, the ECM sets a DTC.

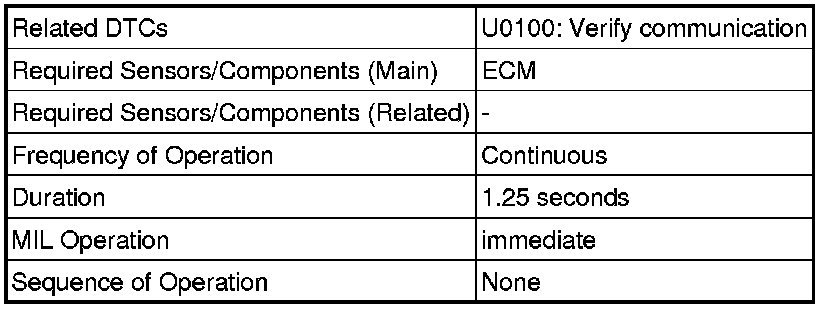

MONITOR STRATEGY

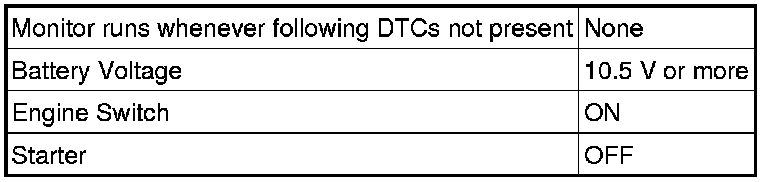

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear.

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC U0100)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the tester ON.

(d) Enter the following menus: Powertrain / ECT / Trouble Codes.

(e) Read DTCs.

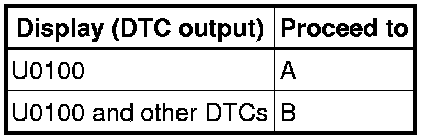

Result:





B -- GO TO DTC CHART

A -- REPLACE ECM
