AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0771: Shift Solenoid "E" Performance (Shift Solenoid Valve SR)
P0771 - Shift Solenoid "E" Performance (Shift Solenoid Valve SR)

SYSTEM DESCRIPTION

HINT

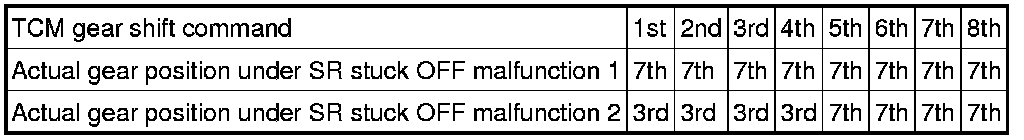

Gear shift position when a problem occurs in shift solenoid valve SR:









MONITOR DESCRIPTION

This DTC indicates a stuck ON malfunction or stuck OFF malfunction of the shift solenoid valve SR.

The TCM commands gear shifts by turning the shift solenoid valves ON/OFF. When the gear position commanded by the TCM and the actual gear position are not the same, the TCM illuminates the MIL and stores the DTC.

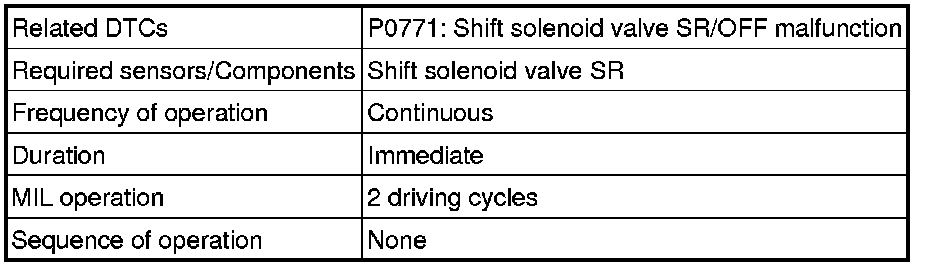

MONITOR STRATEGY

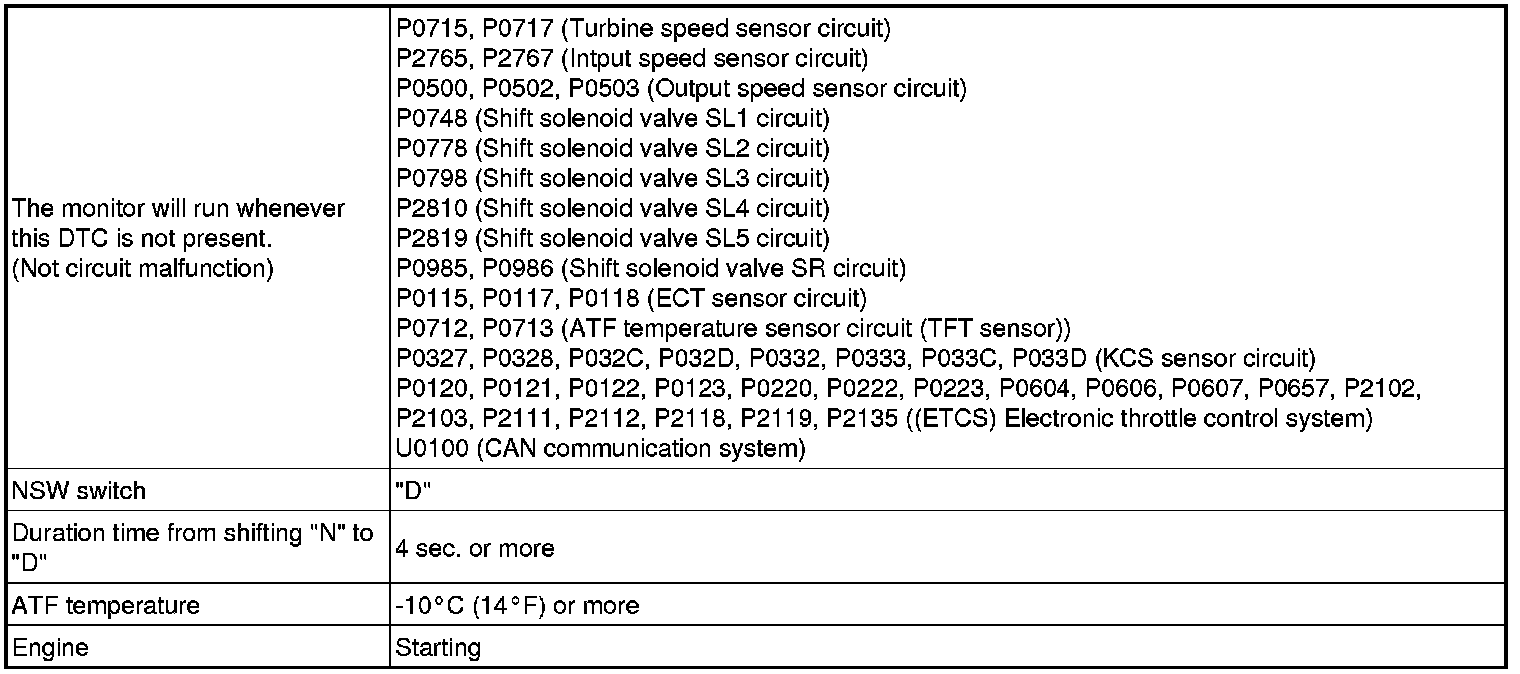

TYPICAL ENABLING CONDITIONS

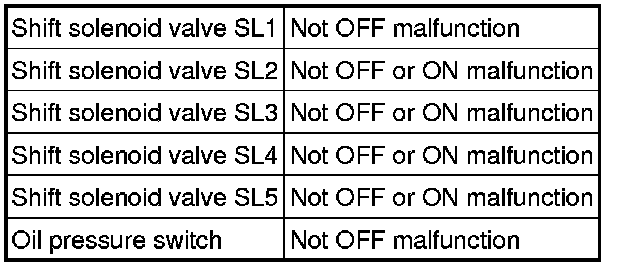

OFF malfunction

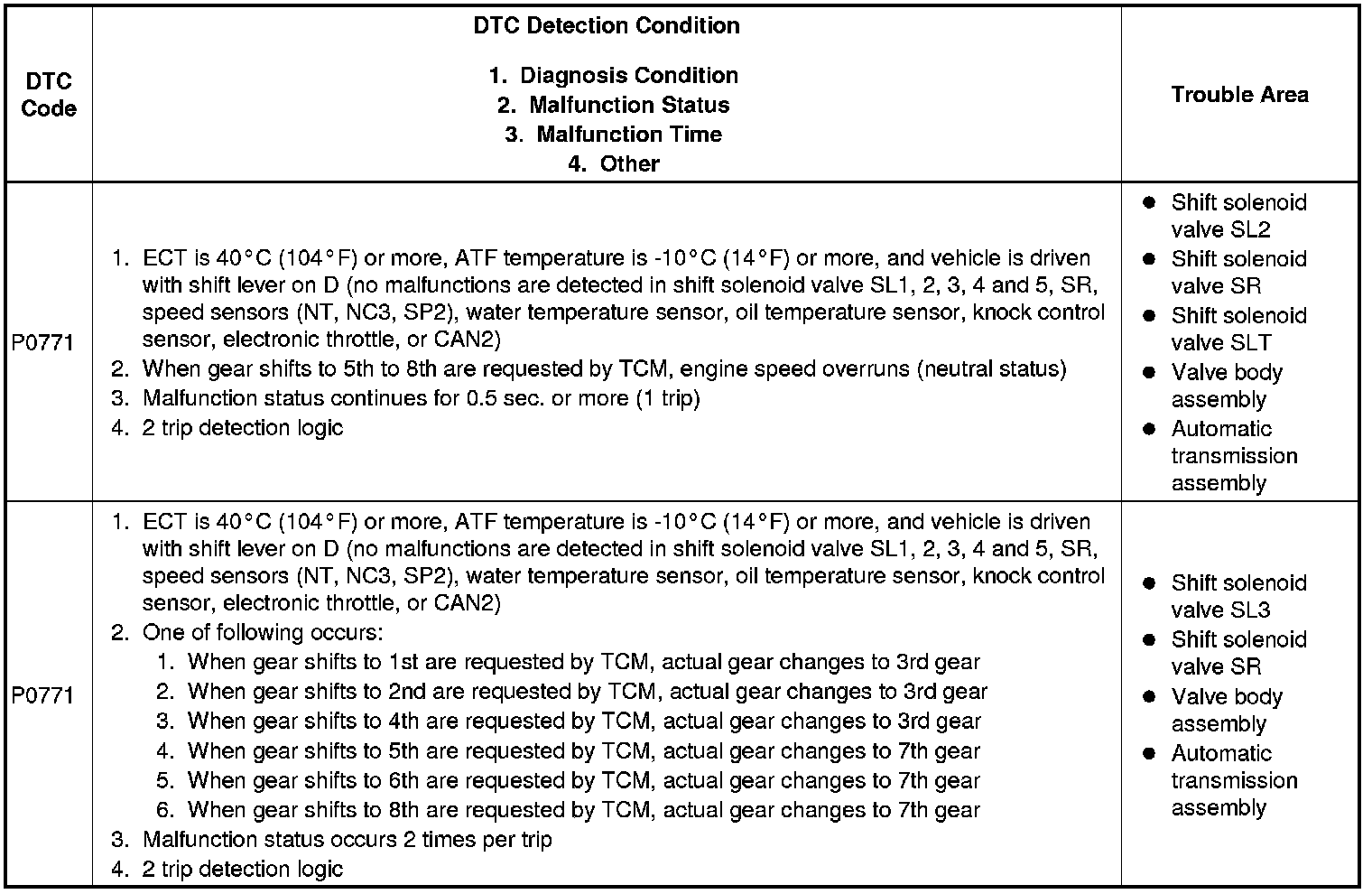

TYPICAL MALFUNCTION THRESHOLDS

When either condition below is met: OFF malfunction (A) or (B)

OFF malfunction (A)





OFF malfunction (B)





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear.

PROCEDURE

1. CHECK DTC OUTPUT (IN ADDITION TO DTC P0771, P0776, P0796 AND P2714)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / ECT / Trouble Codes.

(e) Read the DTCs using the Techstream.

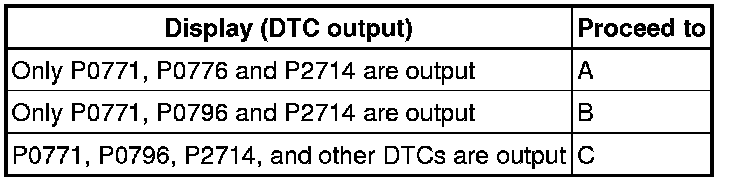

Result:





HINT
If any other codes besides P0771, P0776, P0796 and P2714 are output, perform troubleshooting for those DTCs first.

C -- GO TO DTC CHART Automatic Transmission System - AA80E

B -- GO TO DTC P0796 FLOWCHART

A -- GO TO DTC P0776 FLOWCHART
