P060A

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P060A: Internal Control Module Monitoring Processor Performance
P060A - Internal Control Module Monitoring Processor Performance

MONITOR DESCRIPTION

The main CPU and sub CPU of the ECM perform data communication between each other. The main CPU monitors the communications and WDC pulses from the sub CPU. When the malfunction below is detected, the DTC is stored.

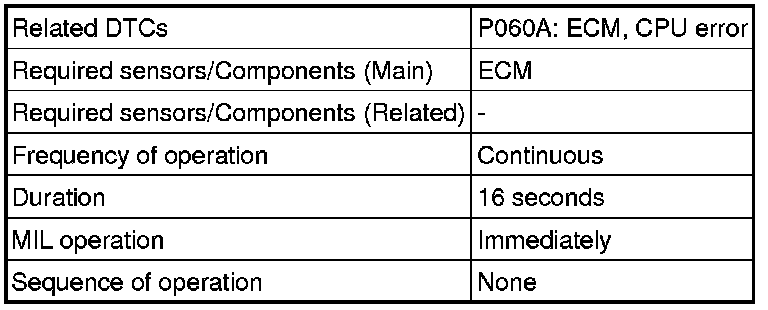

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

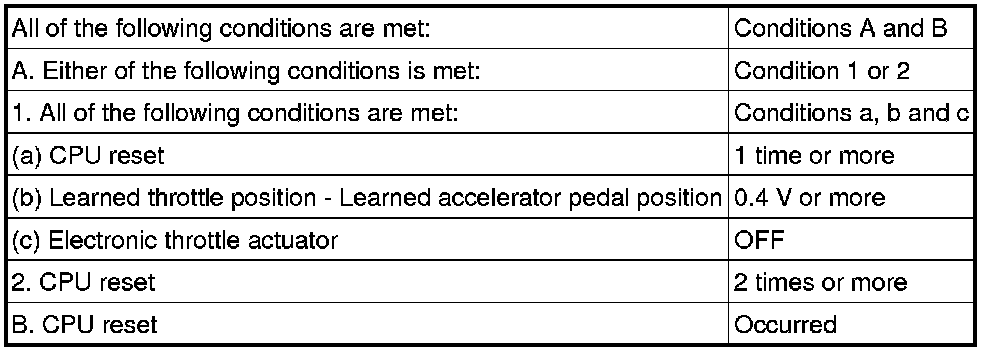

TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN





- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

- Turn the engine switch off.

- Turn the engine switch on (IG) and turn the Techstream on [A].

- Wait 16 seconds or more.

- Enter the following menus: Powertrain / Engine / Trouble Codes.

- Read the DTCs [B].

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.

- Input the DTC: P060A.

- Check the DTC judgment result [B].





HINT
If the judgment result shows ABNORMAL, the system has a malfunction.

INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (DTC P060A)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the engine switch off.

(f) Turn the Techstream off.

(g) Disconnect the Techstream.

(h) Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.

(i) Connect the cable to the negative (-) battery terminal.

(j) Connect the Techstream to the DLC3.

(k) Turn the engine switch on (IG).

(l) Turn the Techstream on.

(m) Enter the following menus: Powertrain / Engine / Trouble Codes.

(n) Read the DTCs.

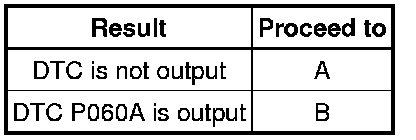

Result:





B -- REPLACE ECM Removal

A -- CHECK FOR INTERMITTENT PROBLEMS
