2 GR-FSE Engine Control System
2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500: Vehicle Speed Sensor "A"
P0500 - Vehicle Speed Sensor "A"

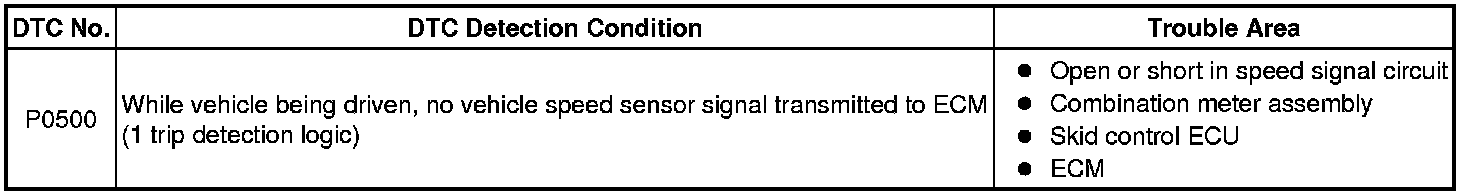

DESCRIPTION
The wheel speed sensors monitor the wheel rotation speed and send signals to the skid control ECU. The skid control ECU converts the wheel speed signal into a 4-pulse signal and transmits it to the ECM via the combination meter assembly. The ECM determines the vehicle speed based on the frequency of the pulse signal.
HINT
- A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter assembly. The signal is changed to a pulse signal at the transistor in the combination meter assembly. Each ECU controls the respective system based on the pulse signal.
- If a short occurs in any of the ECUs or in the wire harness connected to an ECU, all systems in the wiring diagram below will not operate normally.
MONITOR DESCRIPTION
If there is no speed signal from the combination meter assembly even though the ECM determines that the vehicle is being driven, the ECM interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and sets the DTC.

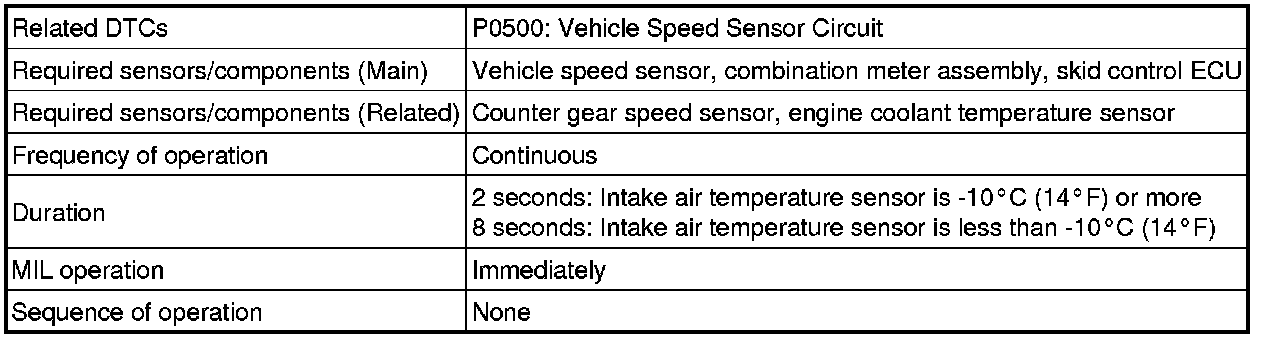

MONITOR STRATEGY

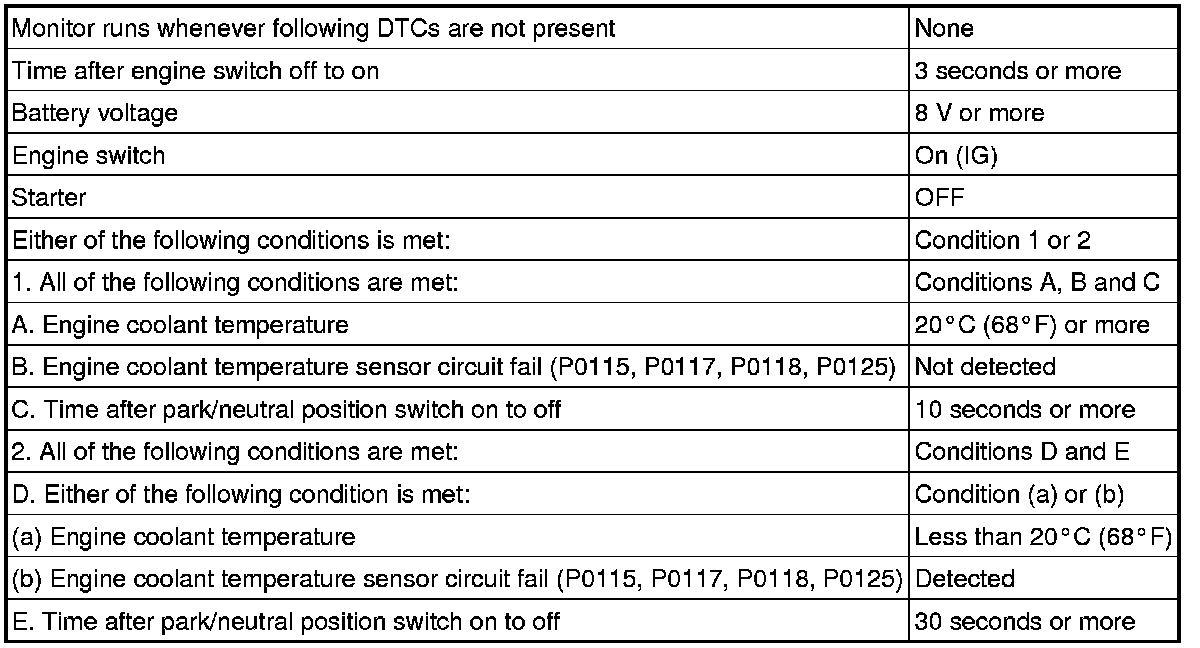

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS

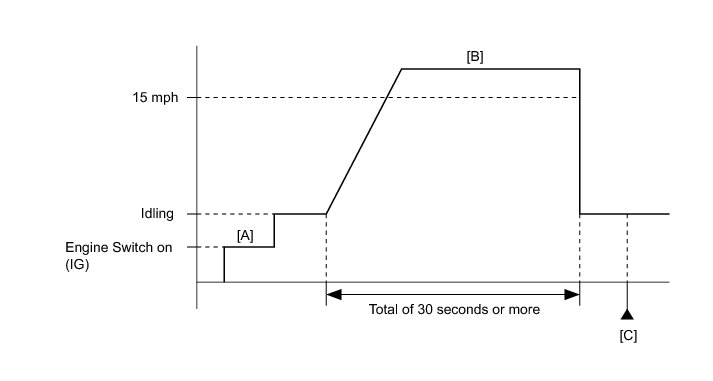

CONFIRMATION DRIVING PATTERN
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.
- Turn the engine switch off.
- Turn the engine switch on (IG) and turn the Techstream on [A].
- Start the engine.
- Drive the vehicle at 15 mph (24 km/h) or more for a total of 30 seconds or more [B].
- Stop the vehicle.
- Enter the following menus: Powertrain / Engine / Trouble Codes.
- Read the DTCs [C].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Input the DTC: P0500.
- Check the DTC judgment result.
HINT
If the judgment result shows ABNORMAL, the system has a malfunction.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. READ VALUE USING TECHSTREAM (VEHICLE SPEED)
(a) Drive the vehicle and check whether the operation of the speedometer in the combination meter assembly is normal.
HINT
- The vehicle speed sensor is operating normally if the speedometer reading is normal.
- If the speedometer does not operate, check it by following the procedure described for a speedometer malfunction.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG).
(d) Turn the Techstream on.
(e) Enter the following menus: Powertrain / Engine / Data List / Vehicle Speed.
(f) Drive the vehicle.
(g) Read the value displayed on the Techstream.
OK:
Vehicle speeds displayed on the Techstream and speedometer display are equal.
NG -- CHECK COMBINATION METER ASSEMBLY (SPD SIGNAL WAVEFORM)
OK -- CHECK FOR INTERMITTENT PROBLEMS
2. CHECK COMBINATION METER ASSEMBLY (SPD SIGNAL WAVEFORM)
(a) Inspect the combination meter assembly using an oscilloscope.
(1) Jack up the vehicle.
(2) Move the shift lever to N.
(3) Turn the engine switch on (IG).
(4) Measure the voltage between the terminal of the combination meter assembly and the body ground while the wheel is being turned slowly.
Standard Voltage:
HINT
The output voltage should fluctuate up and down, similarly to the diagram, while the wheel is being turned slowly.
NG -- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
(a) Disconnect the K31 combination meter assembly connector.
(b) Disconnect the A6 ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):
(d) Reconnect the combination meter assembly connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM Removal
4. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
(a) Disconnect the K31 combination meter assembly connector.
(b) Disconnect the A6 ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Short):
(d) Reconnect the combination meter assembly connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE COMBINATION METER ASSEMBLY
