SFI System

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
* Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
* If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.
* *: MIL flashes when a catalyst damaged misfire is detected.

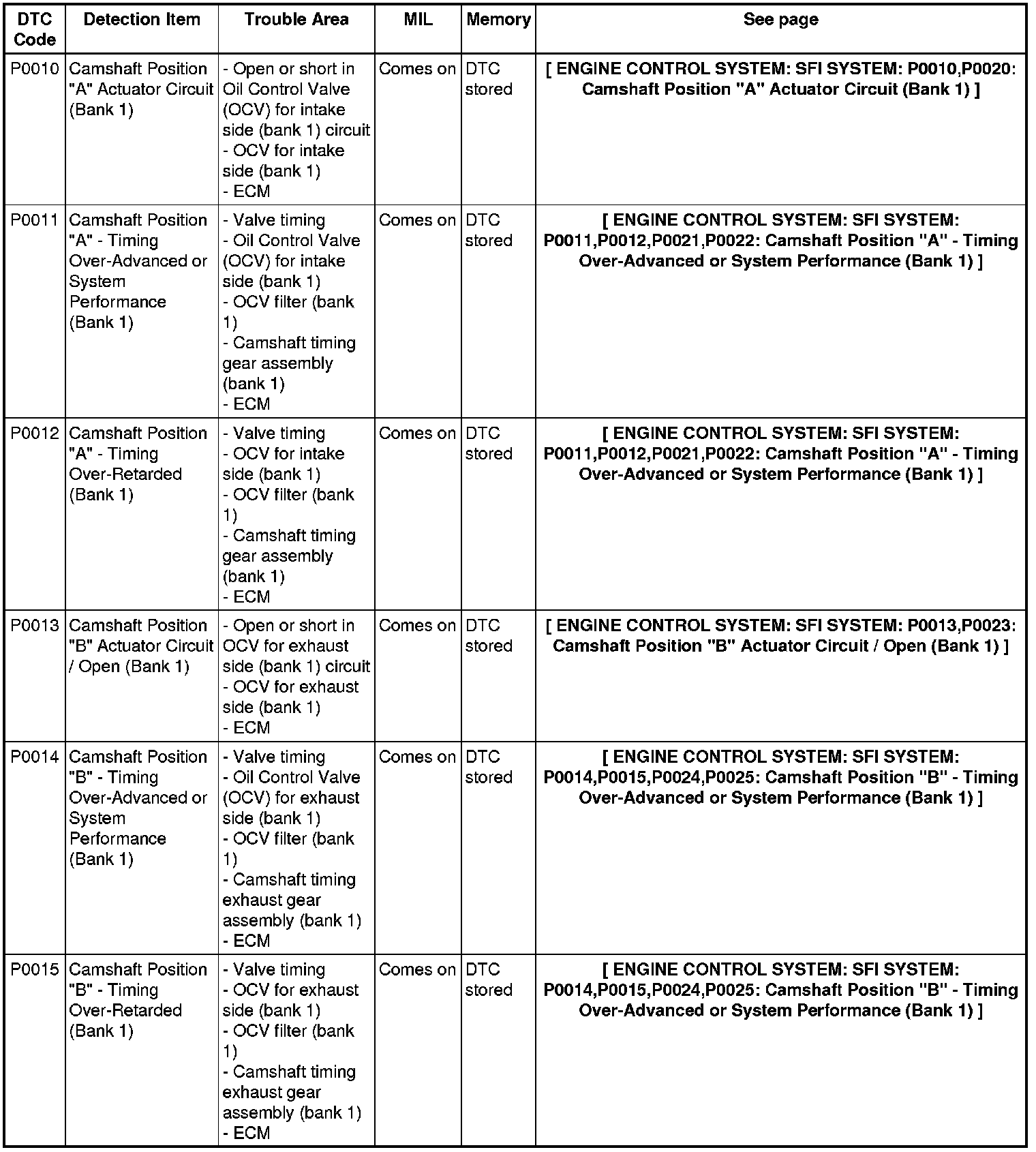

P0010 - P0015:

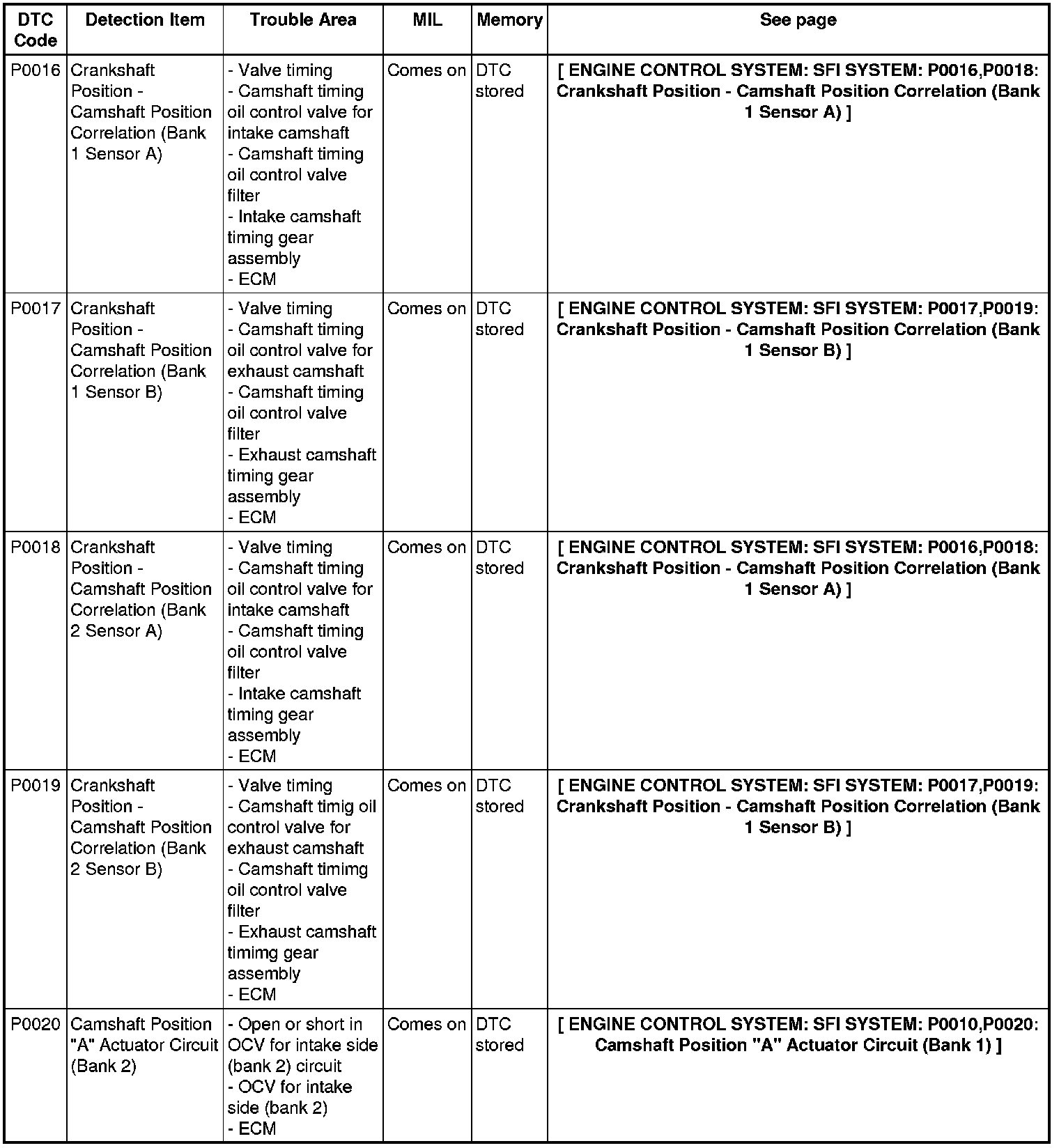

P0016 - P0020:

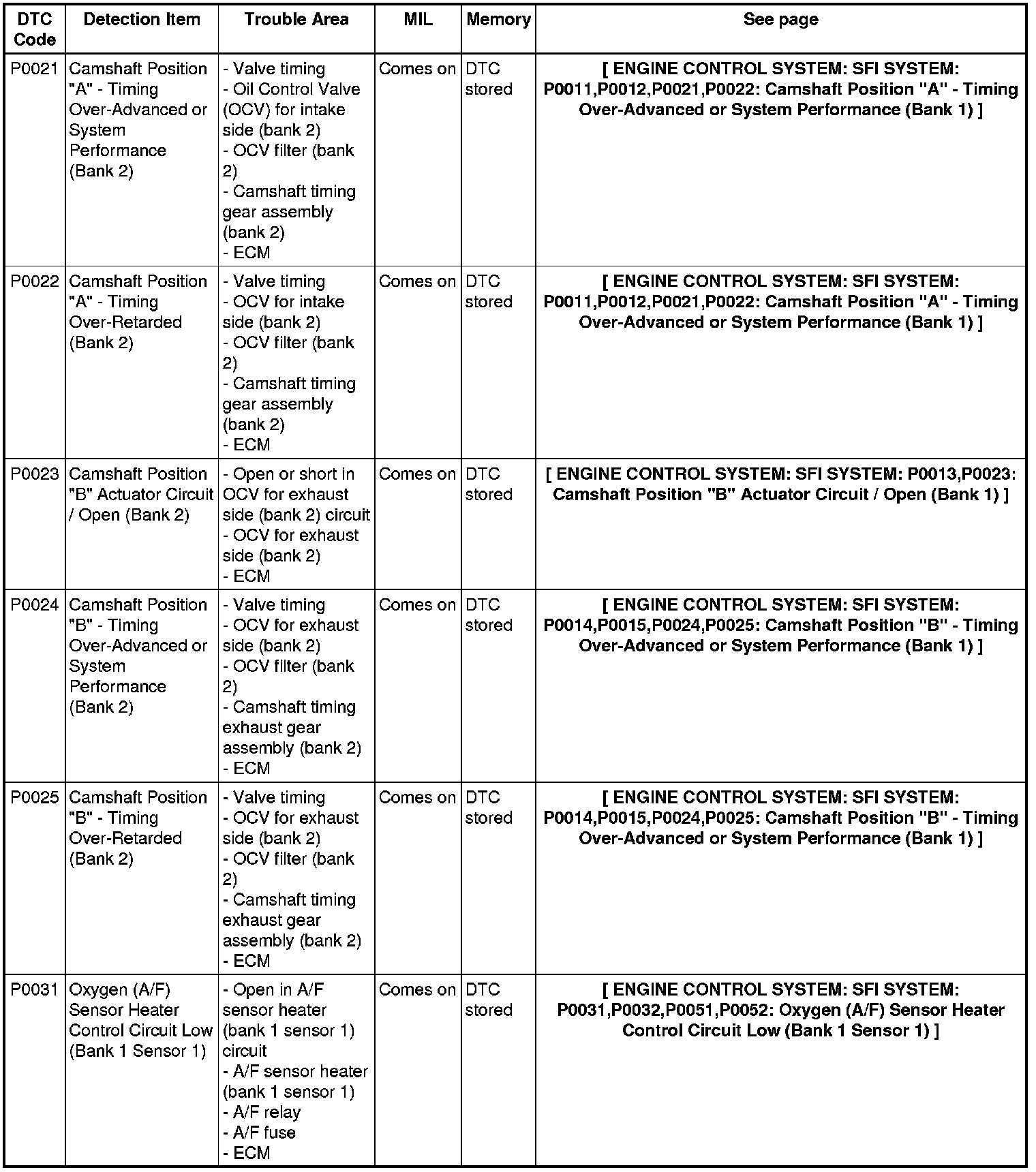

P0021 - P0031:

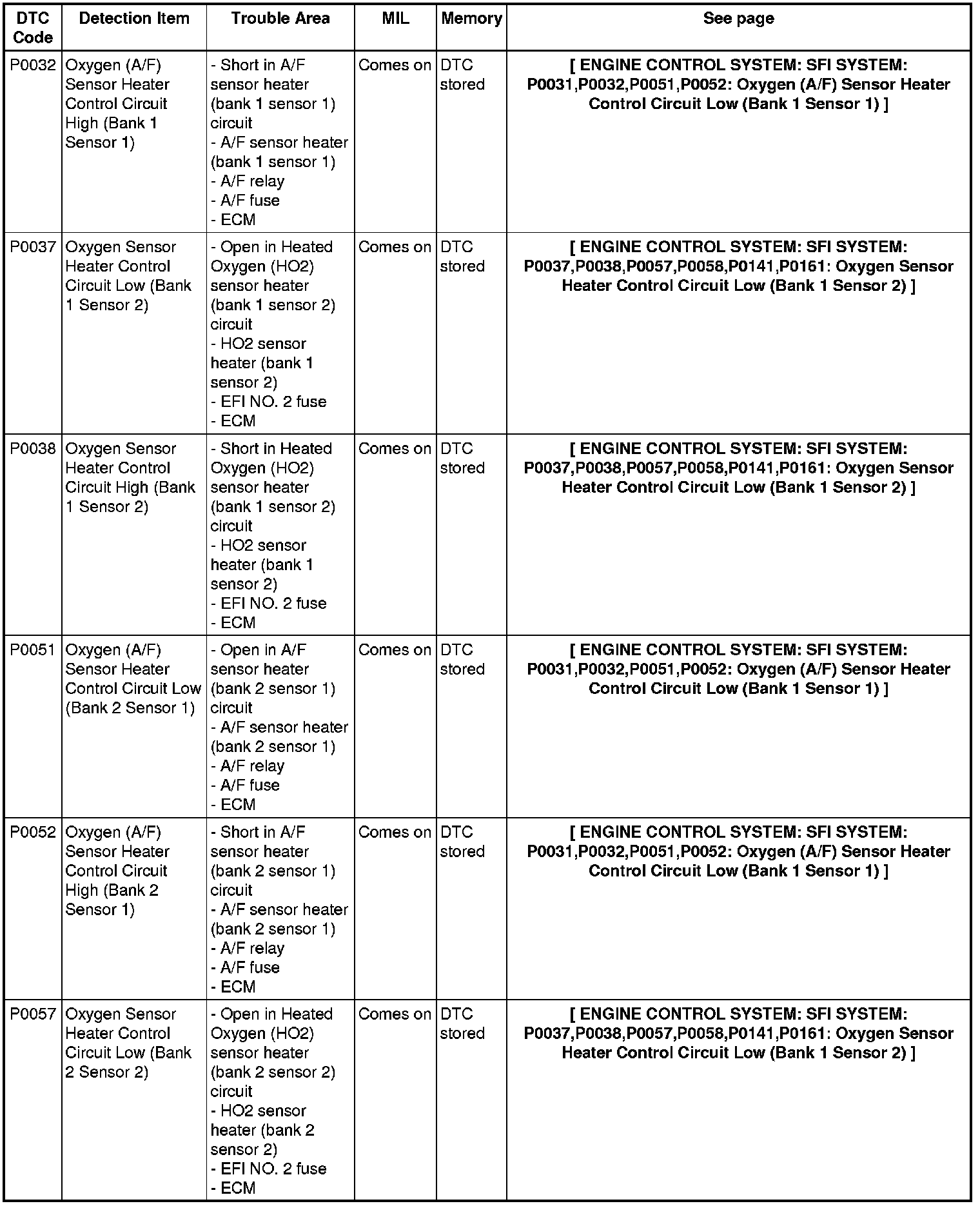

P0032 - P0057:

P0058 - P0111:

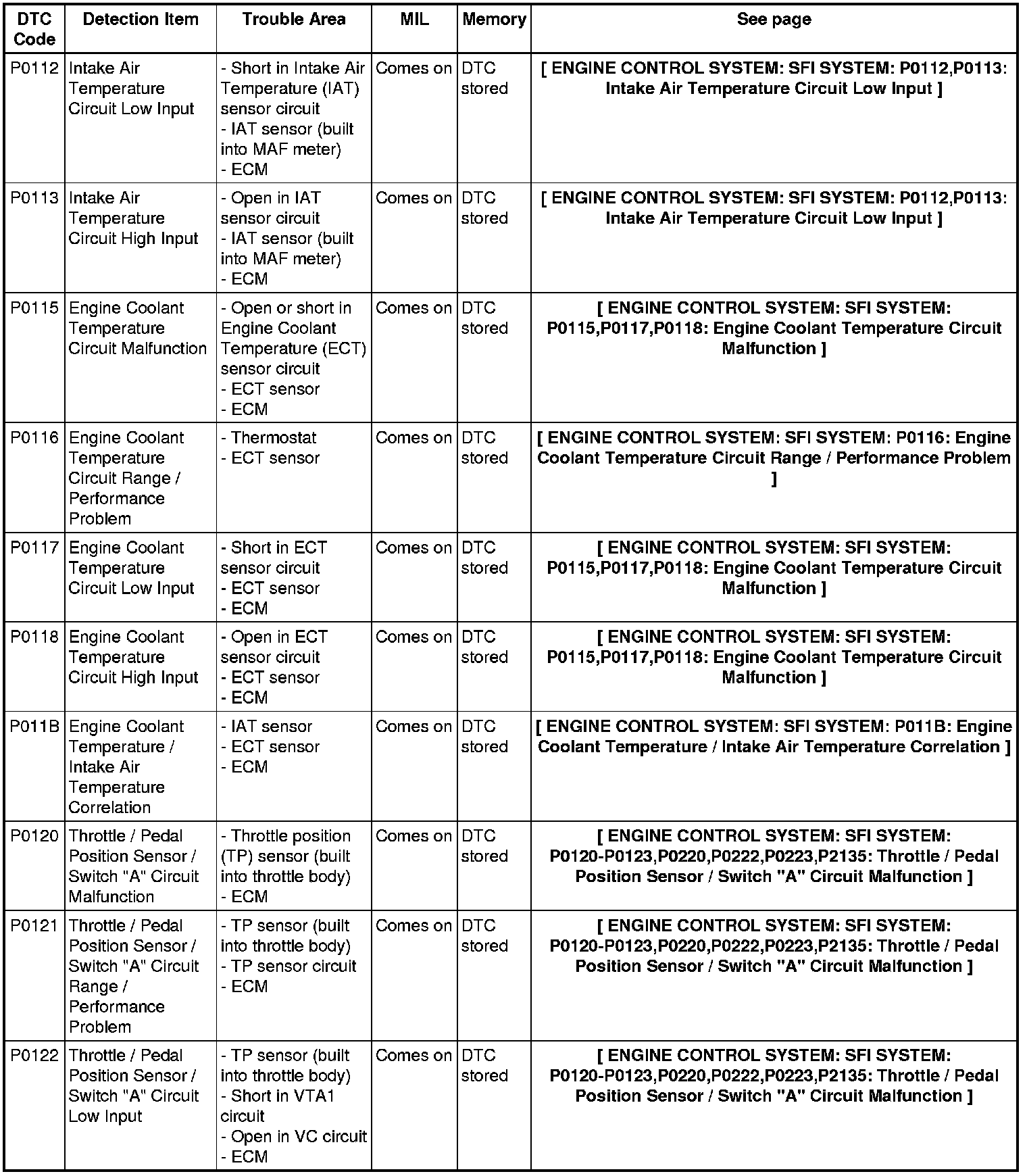

P0112 - P0122:

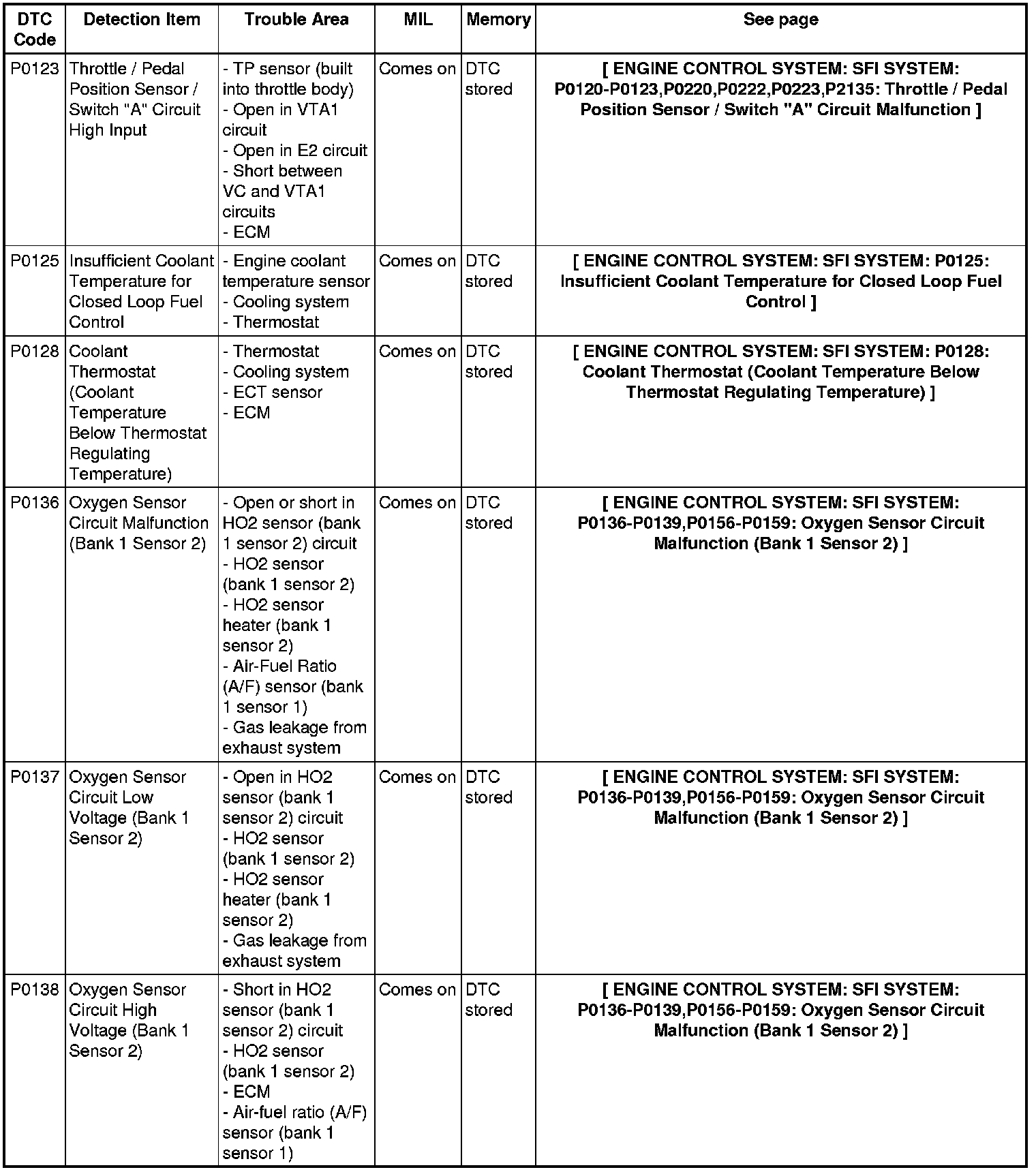

P0123 - P0138:

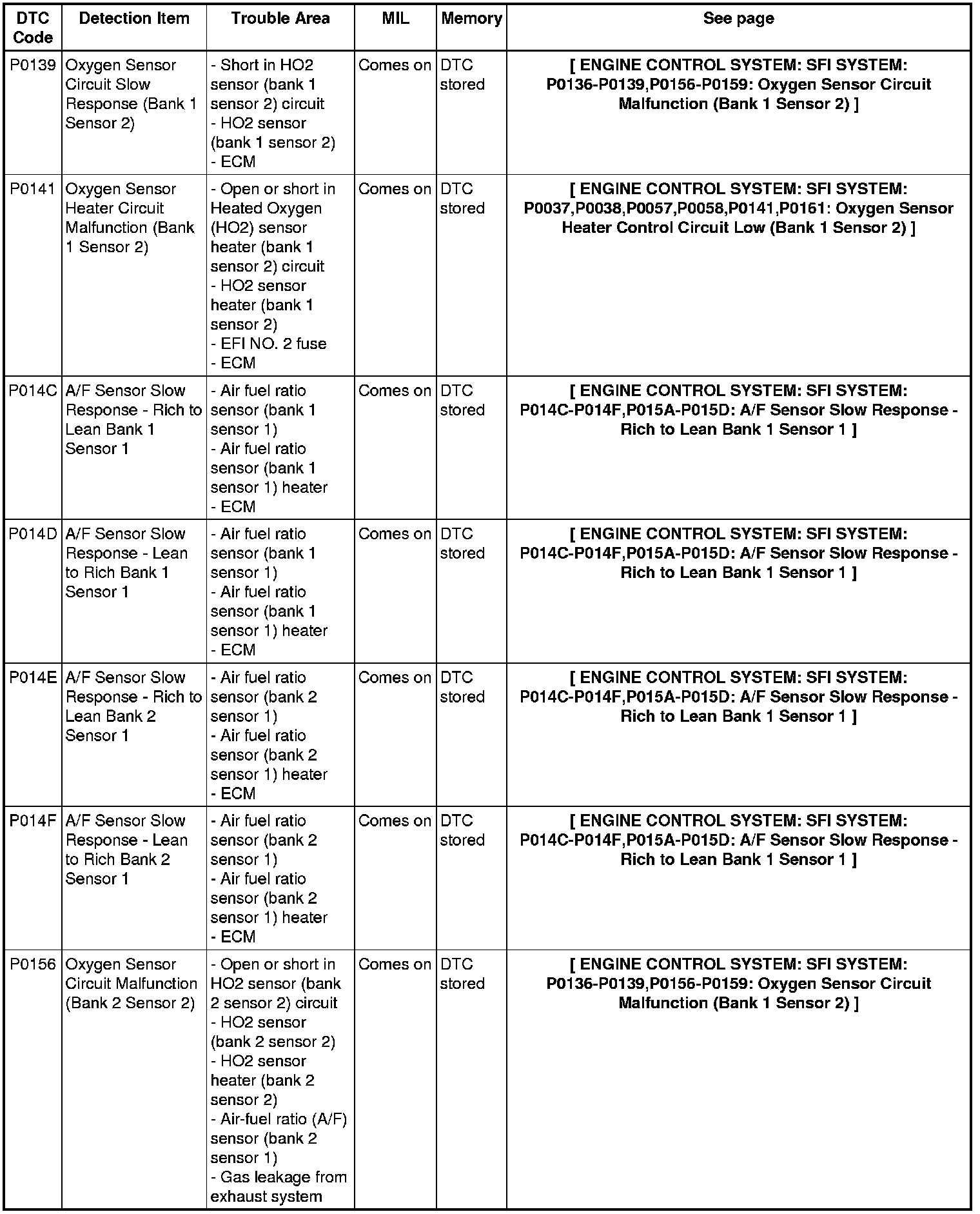

P0139 - P0156:

P0157 - P015D:

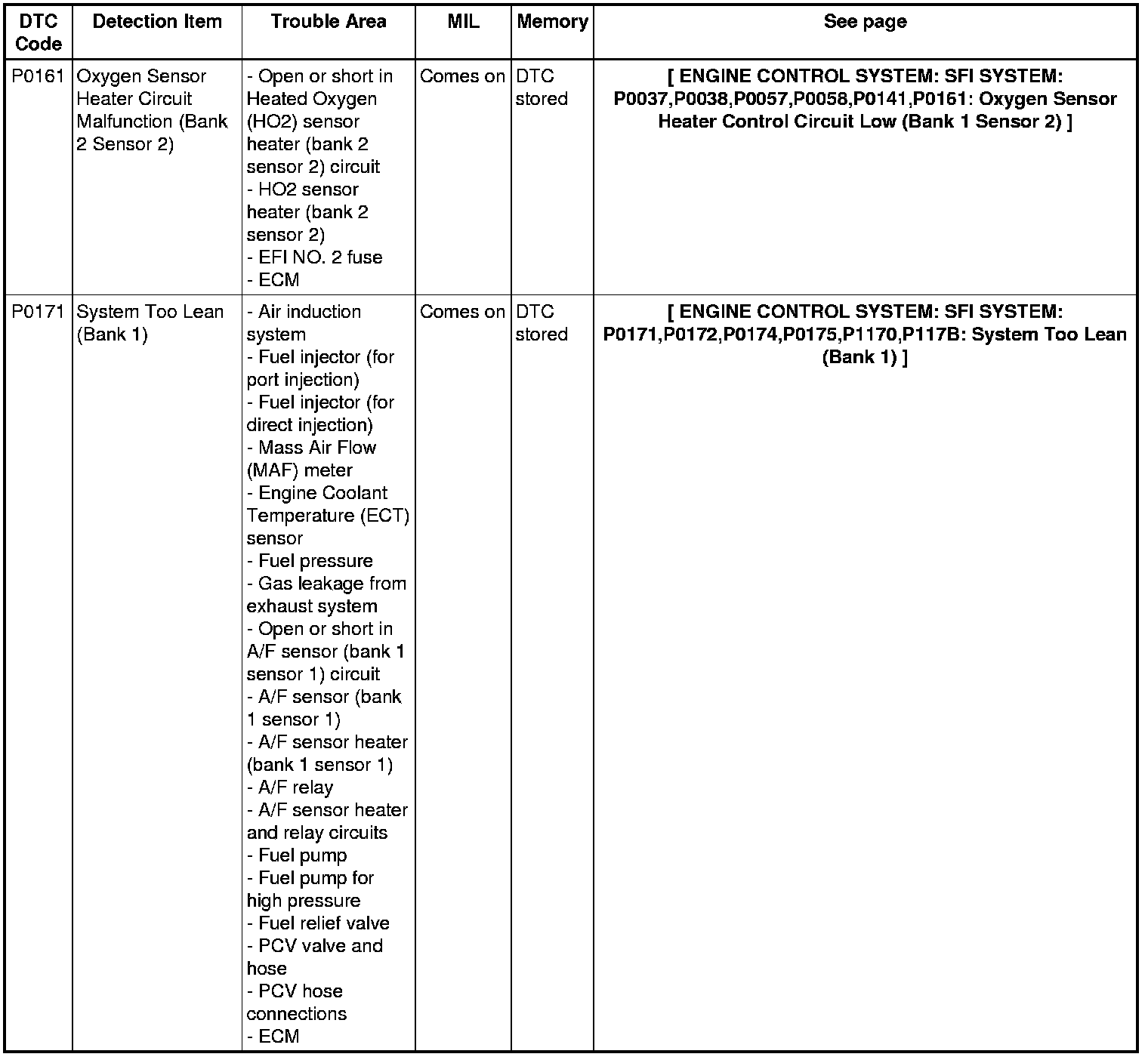

P0161 - P0171:

P0172 - P0174:

P0175 - P0202:

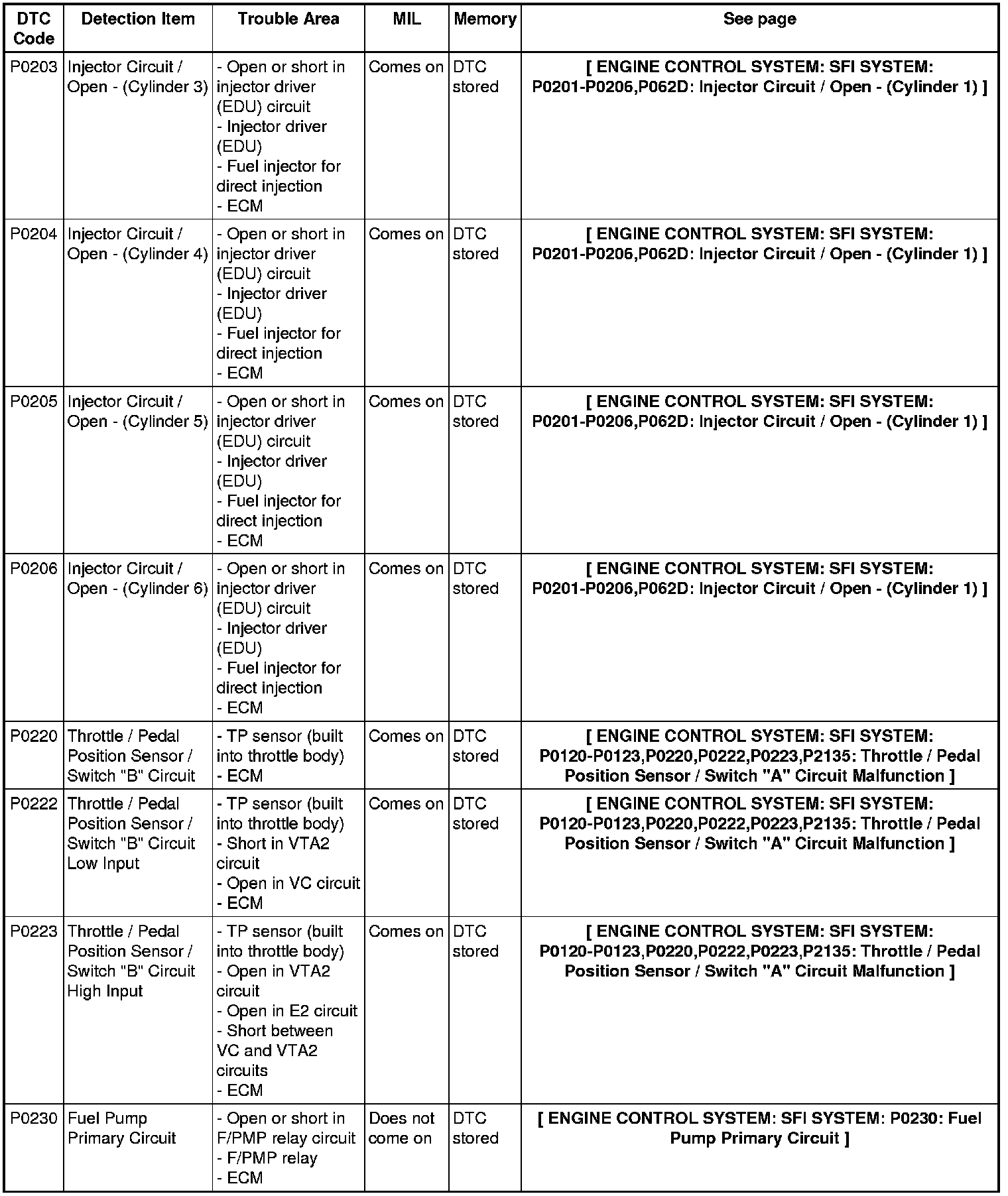

P203 - P0230:

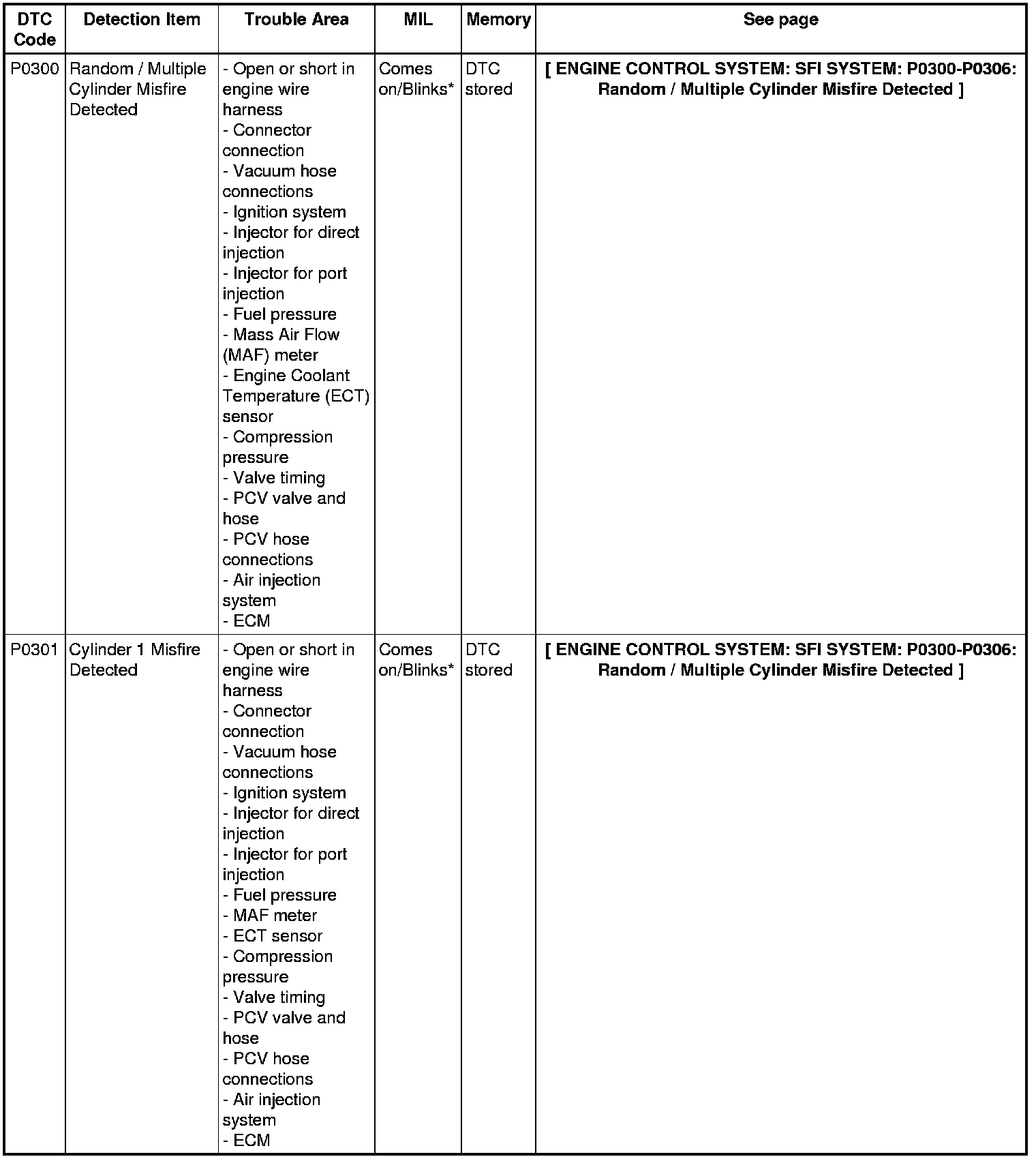

P0300 - P0301:

P0302 - P0303:

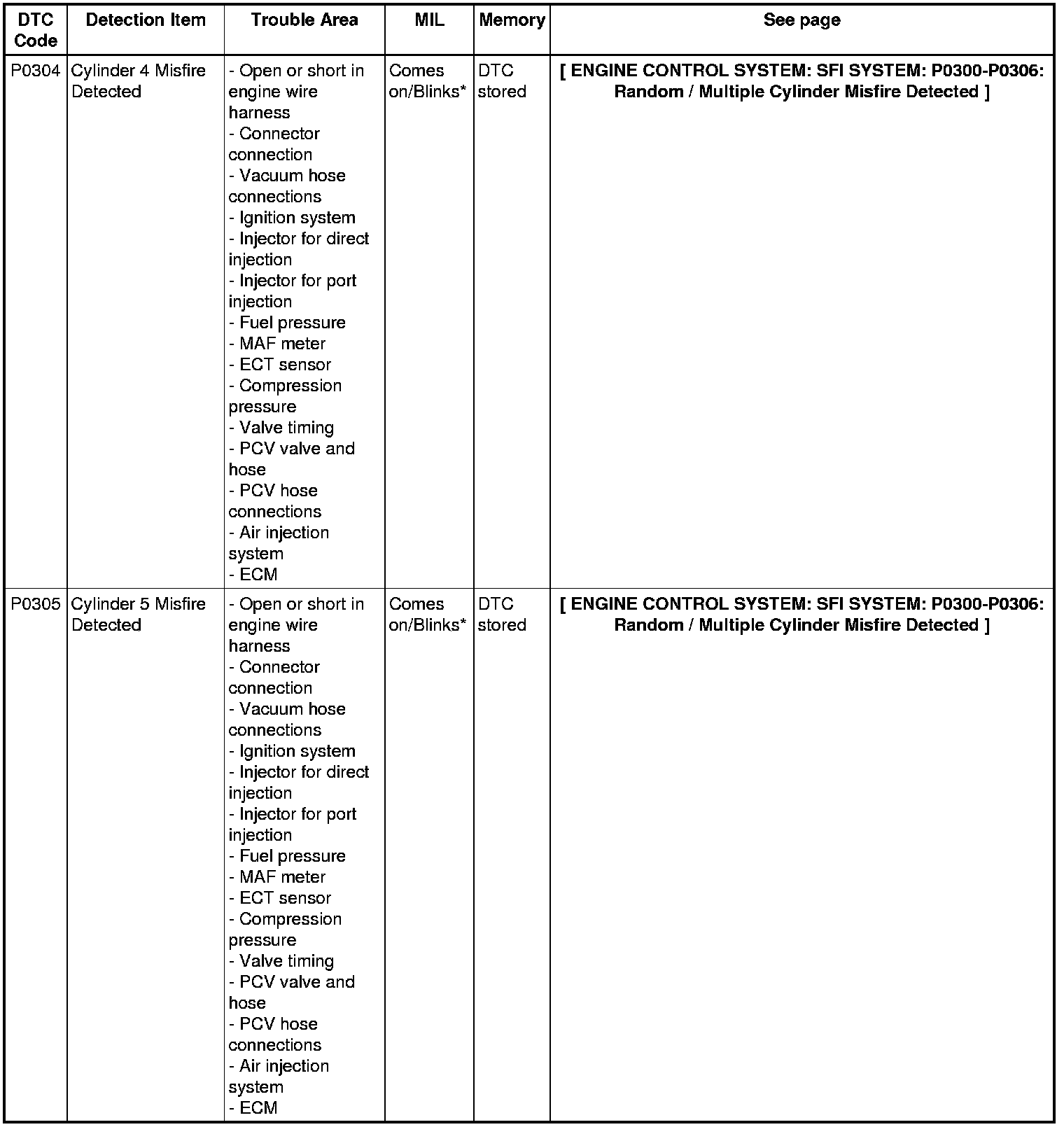

P0304 - P0305:

P0306 - P0339:

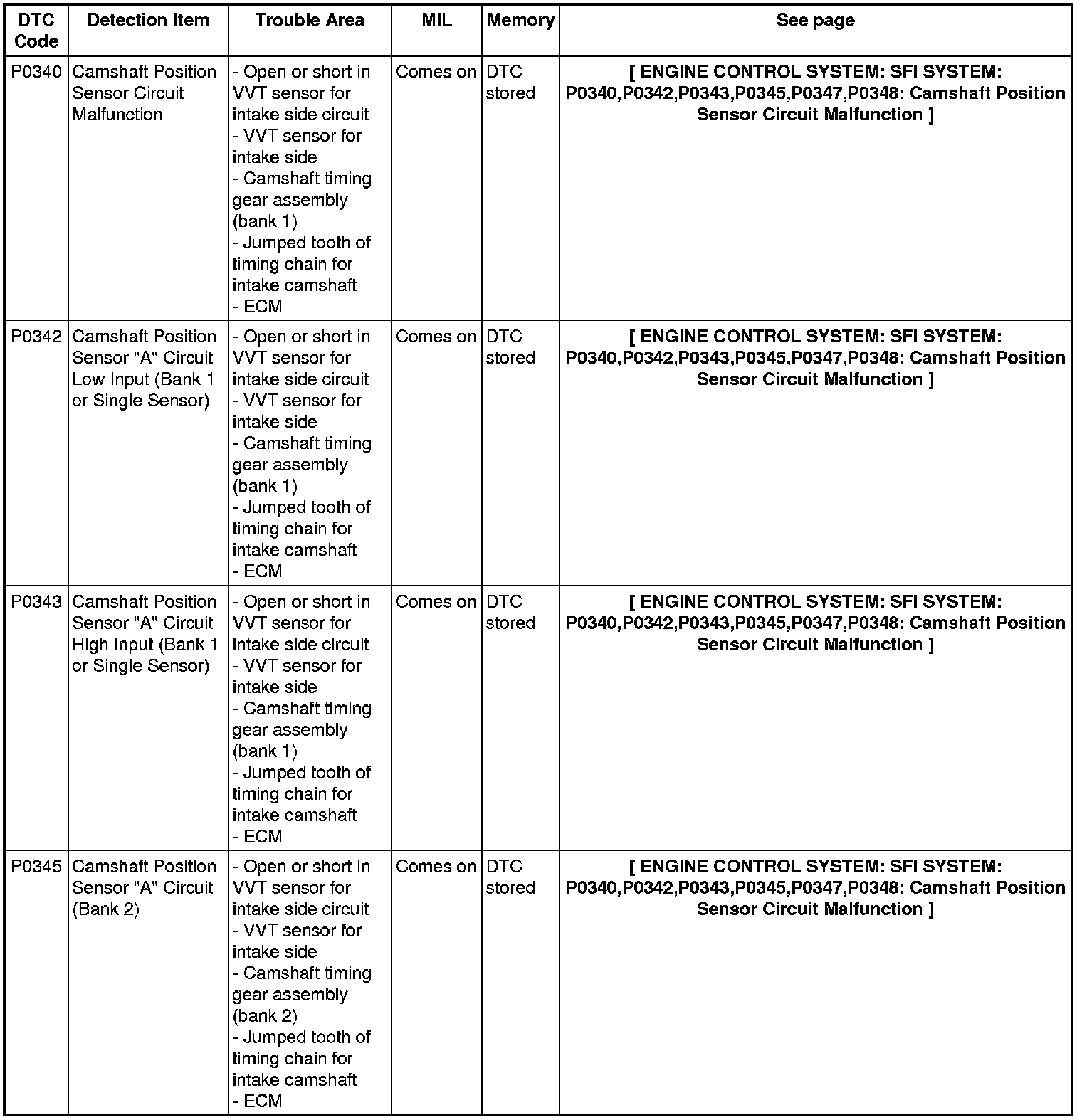

P0340 - P0345:

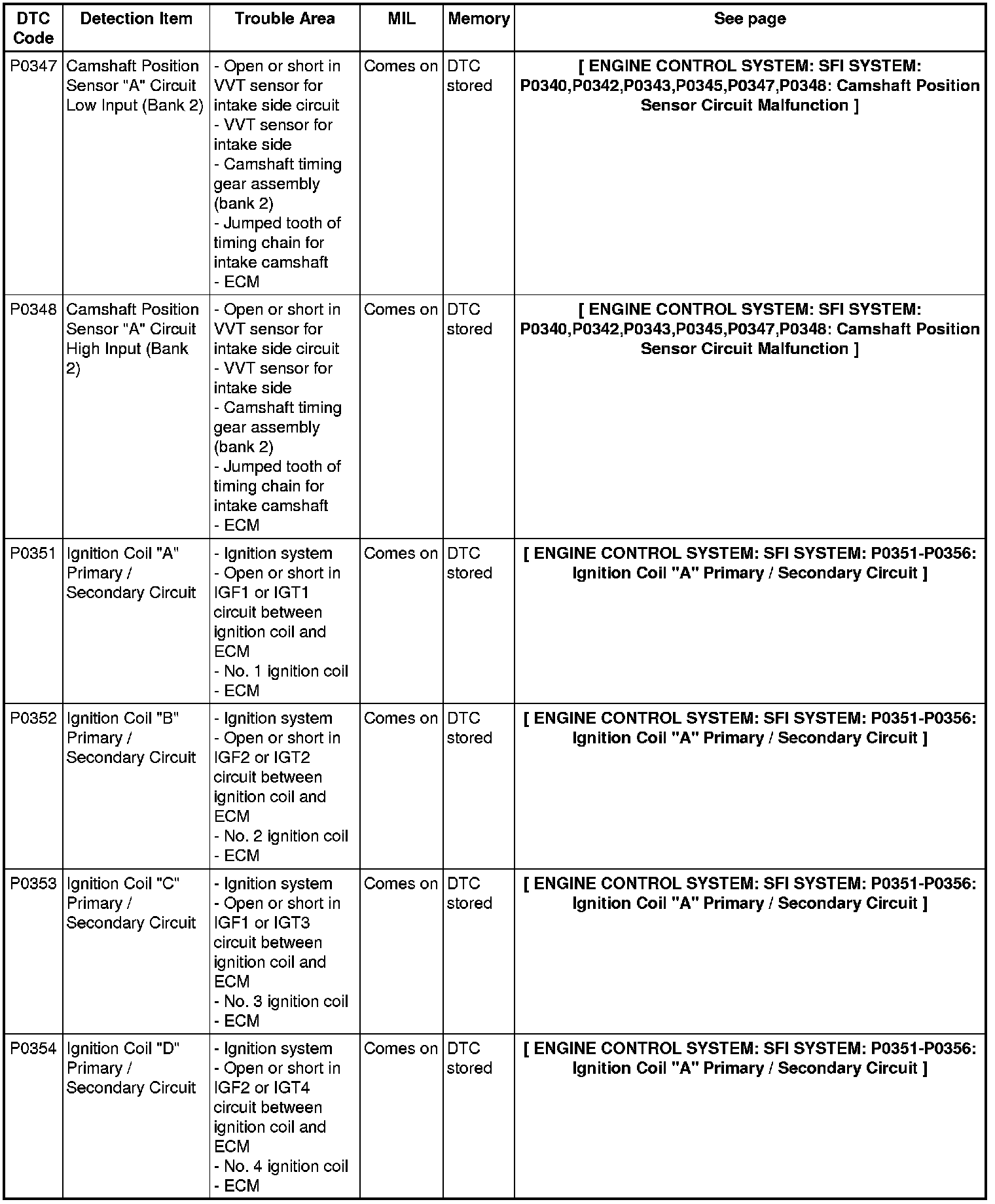

P0347 - P0354:

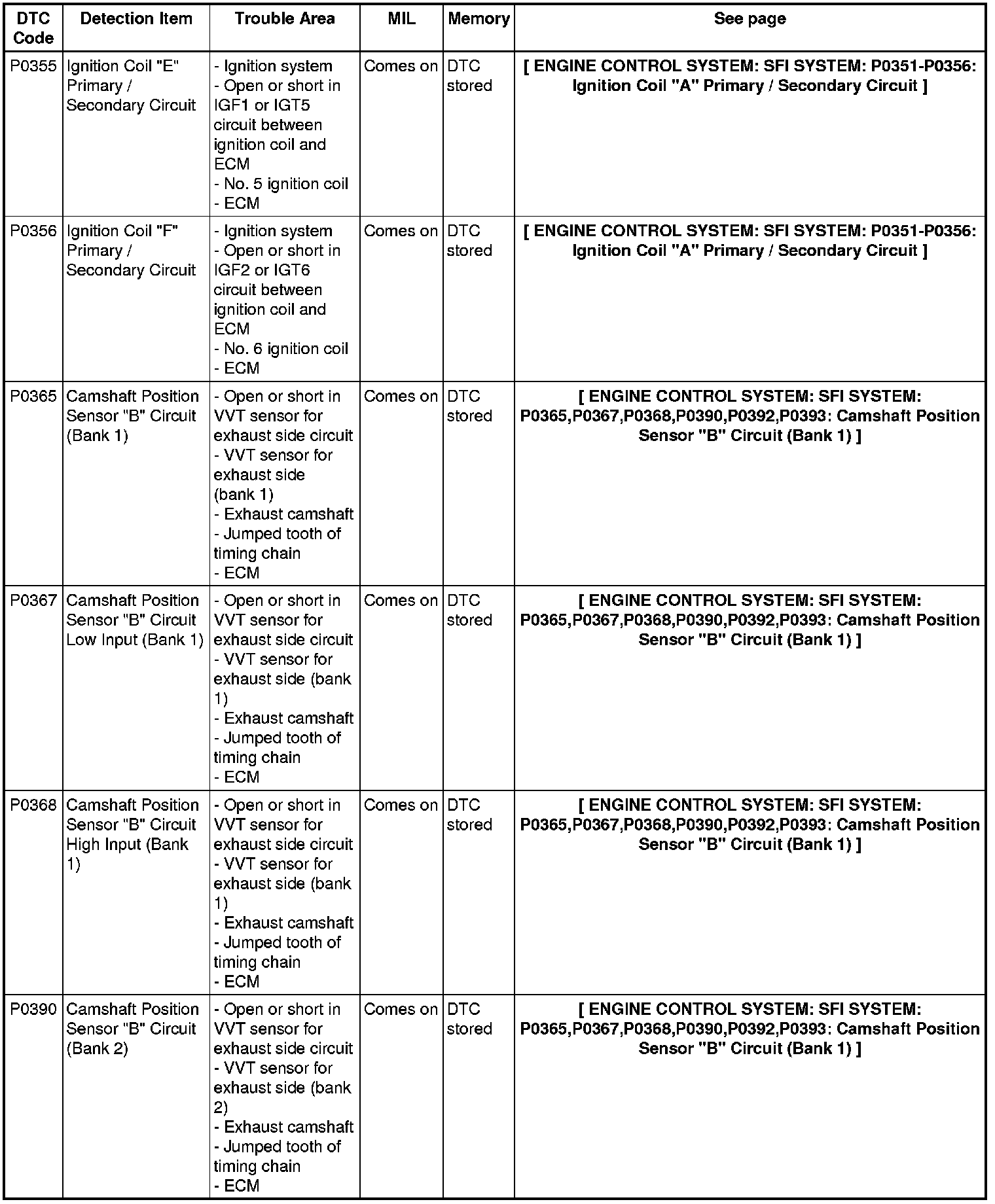

P0355 - P0390:

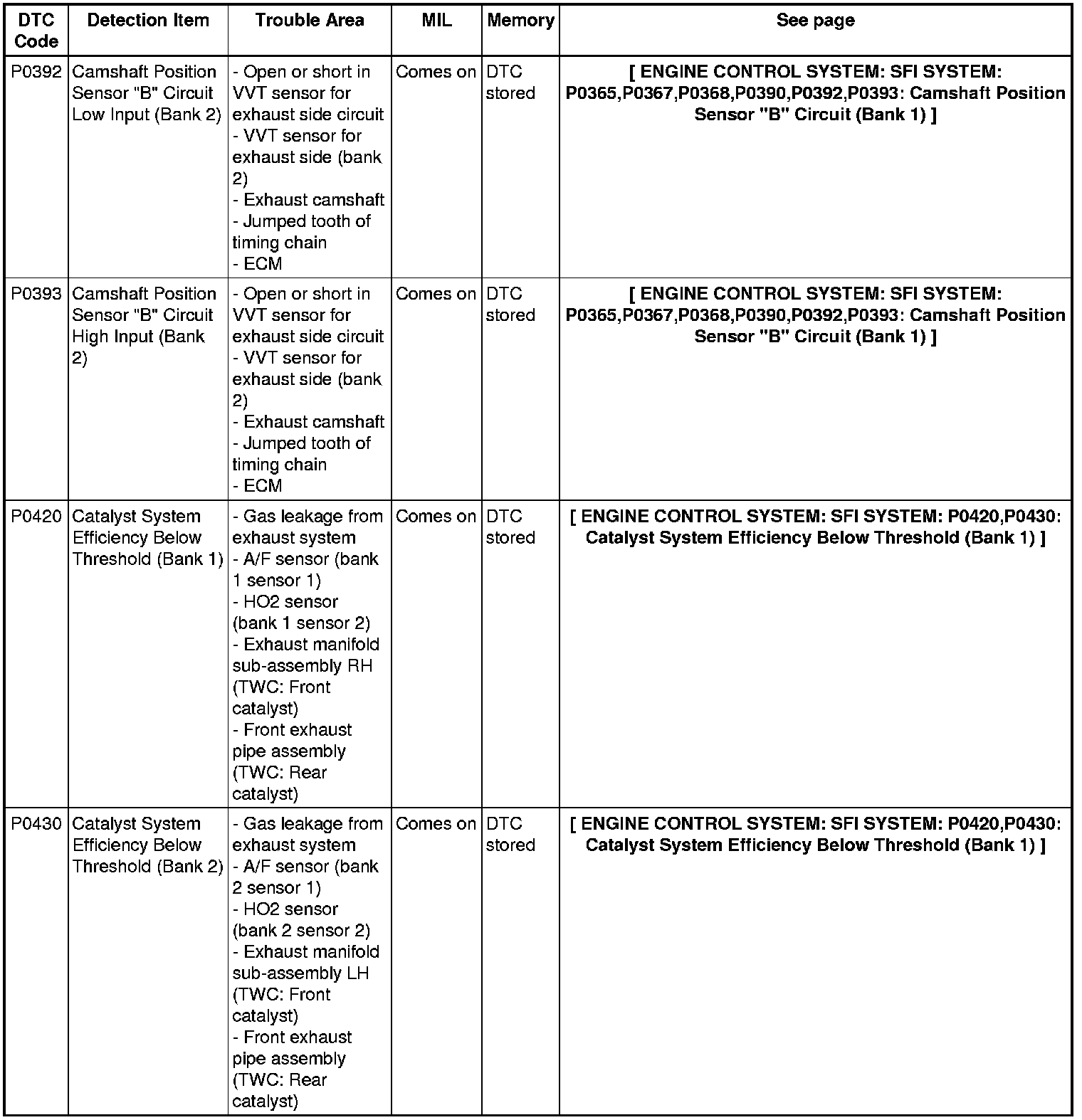

P0392 - P0430:

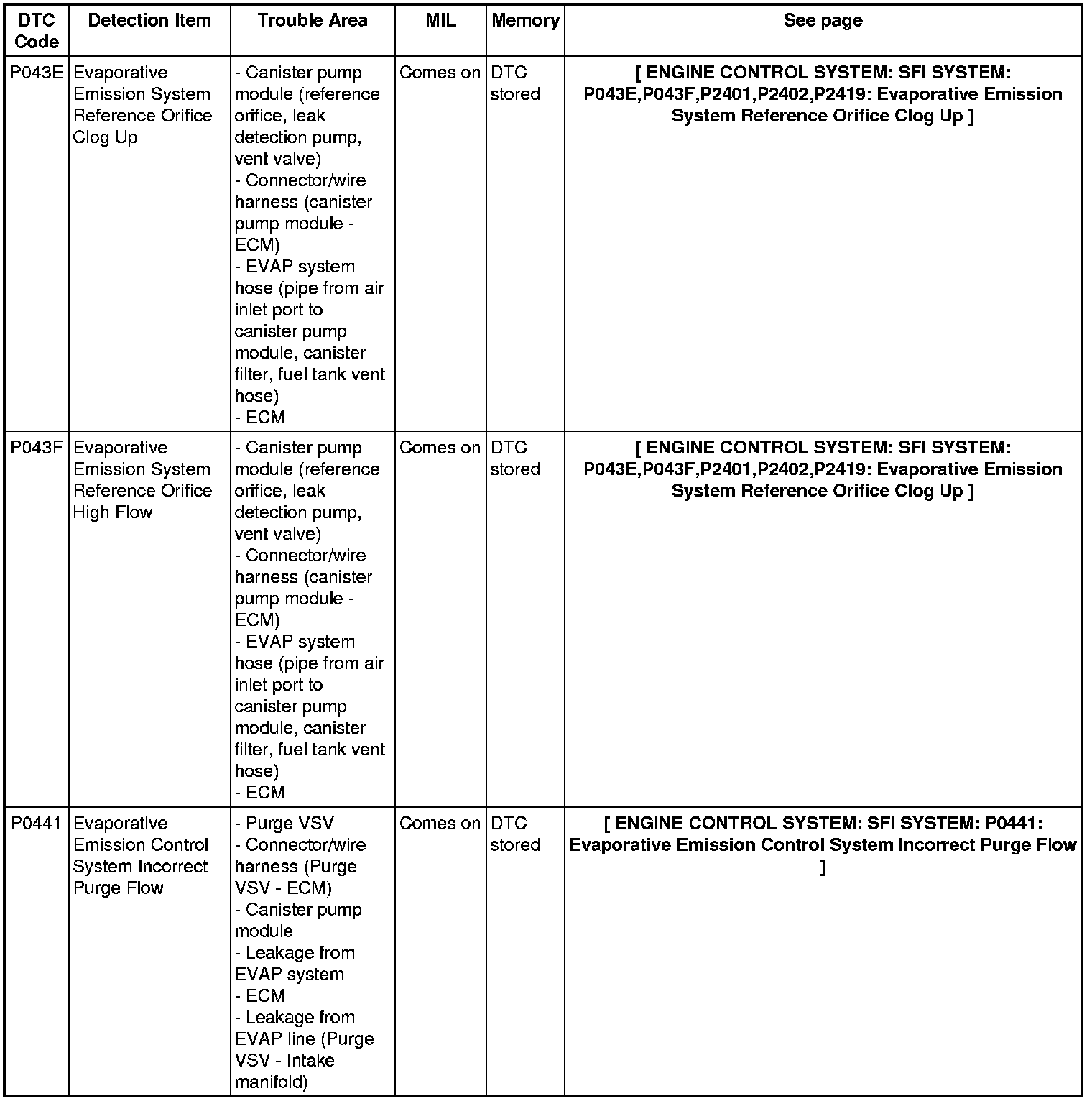

P043E - P0441:

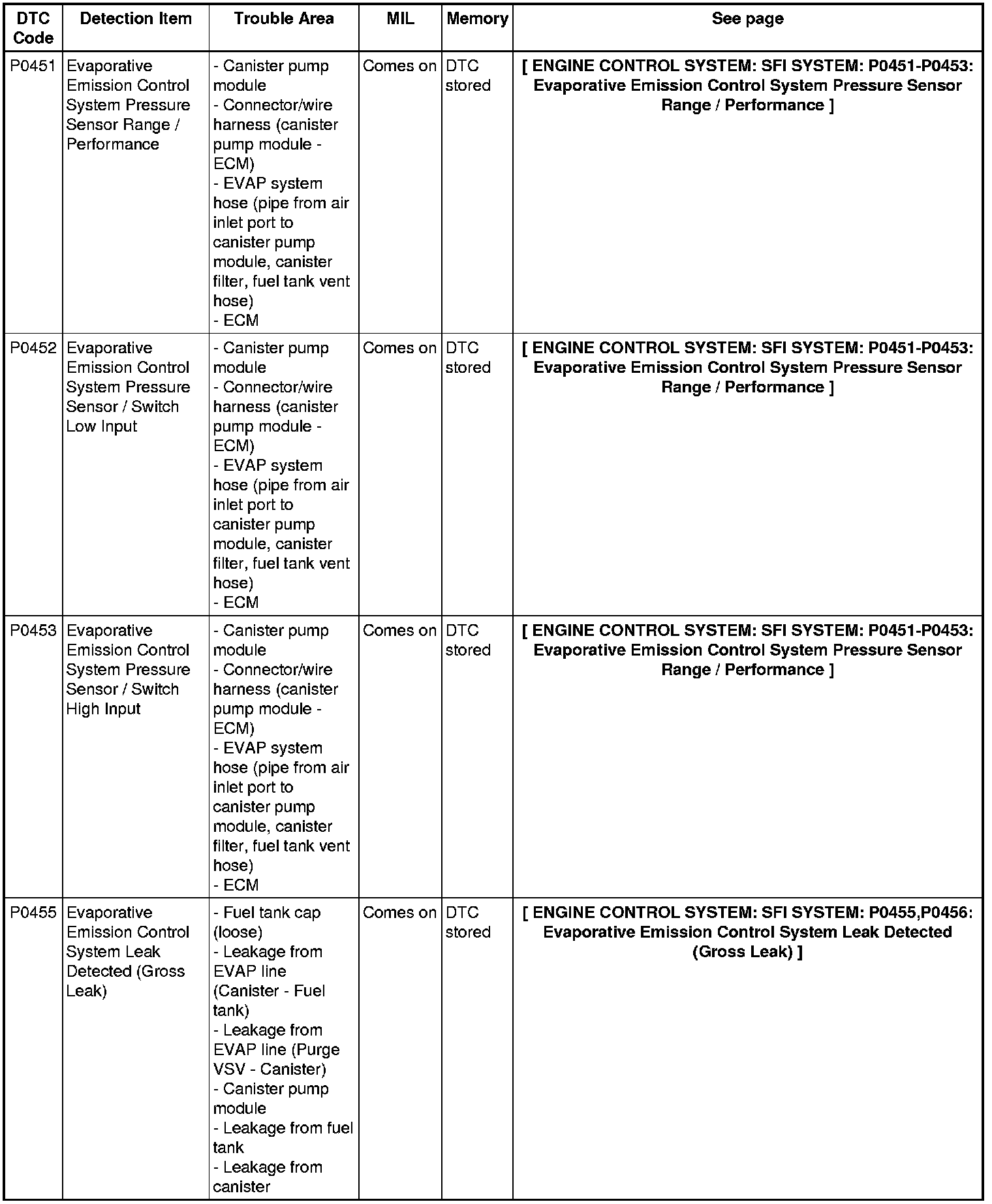

P0451 - P0455:

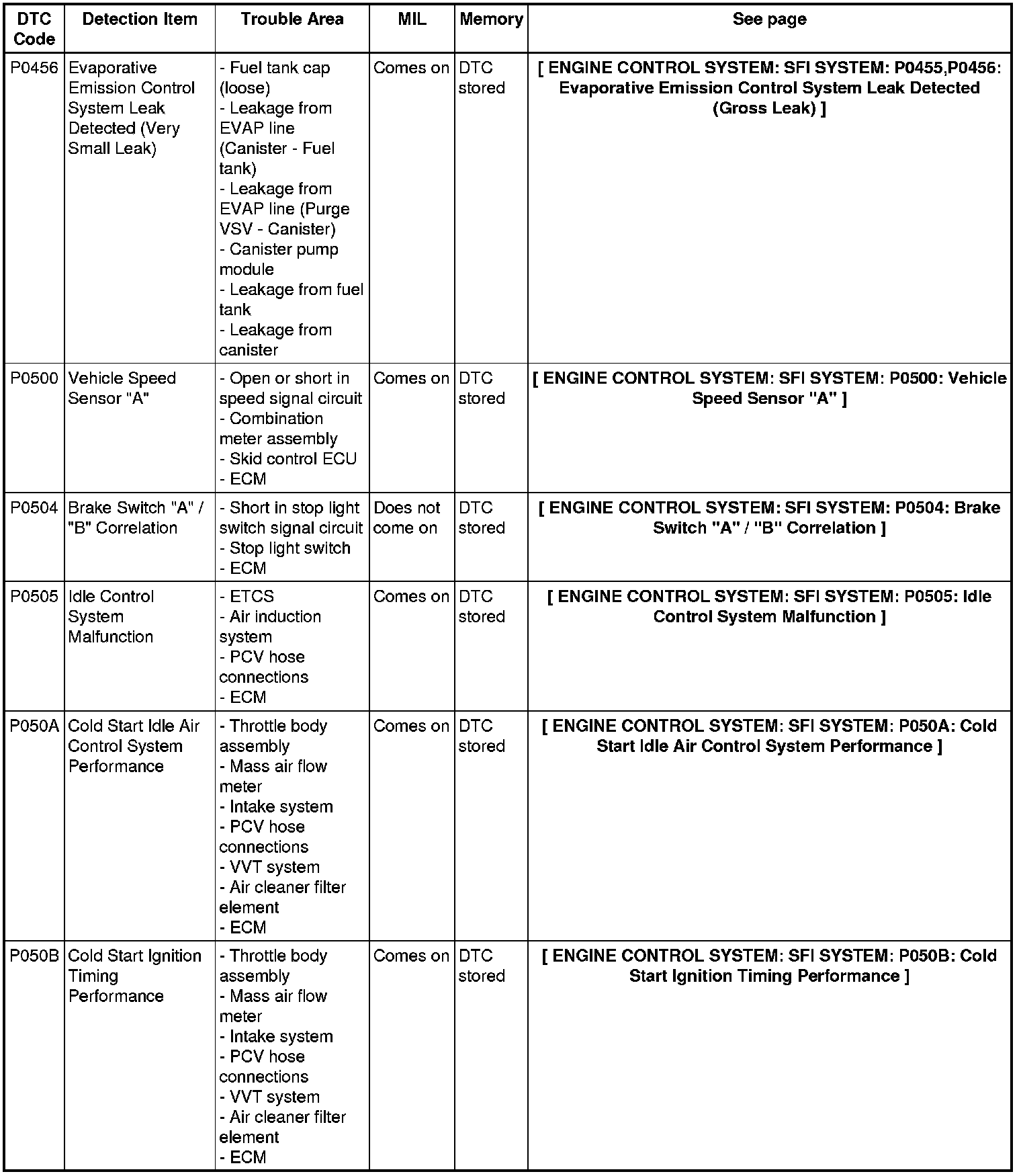

P0456 - P050B:

P0560 - P0657:

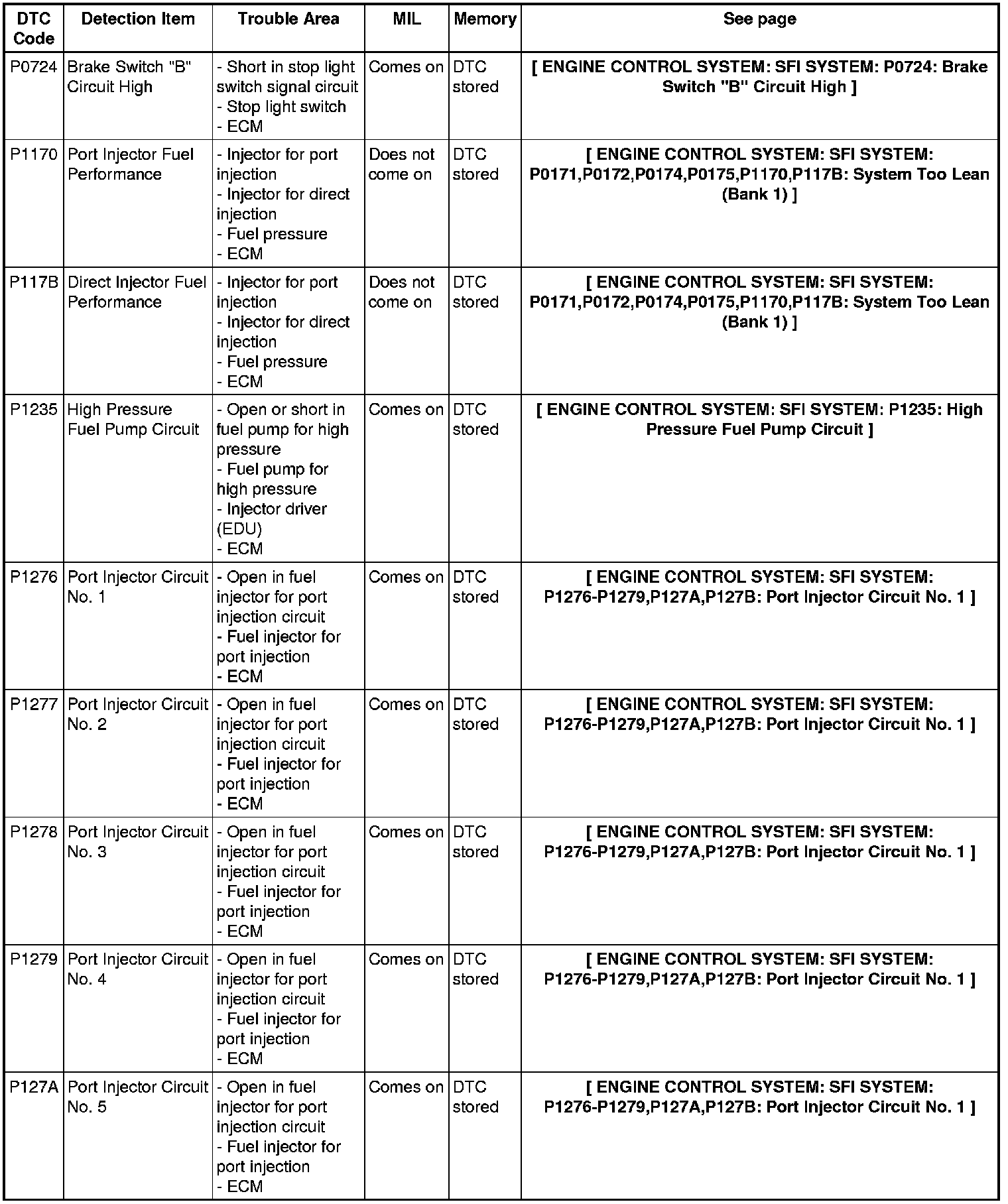

P0724 - P127A:

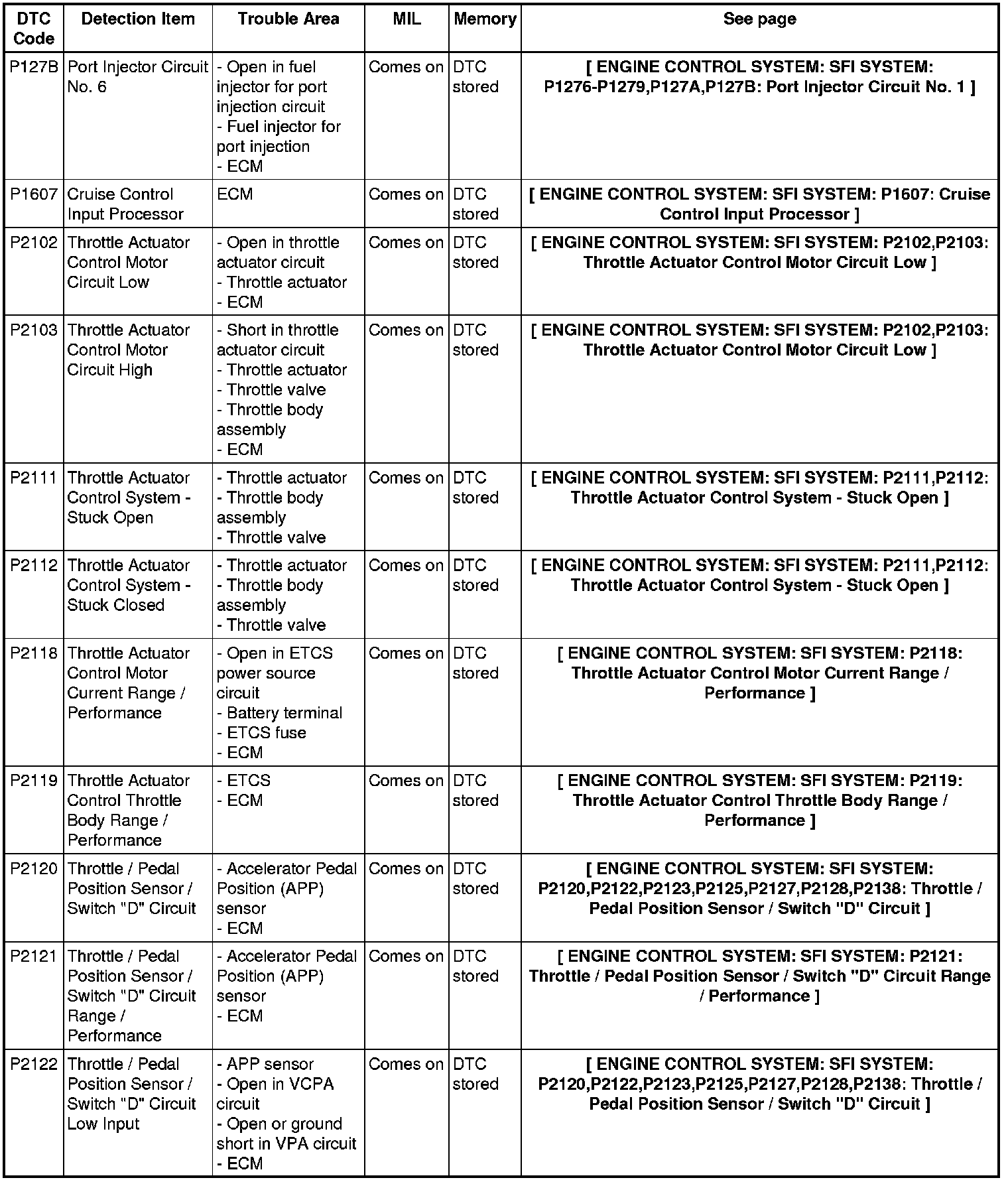

P127B - P2122:

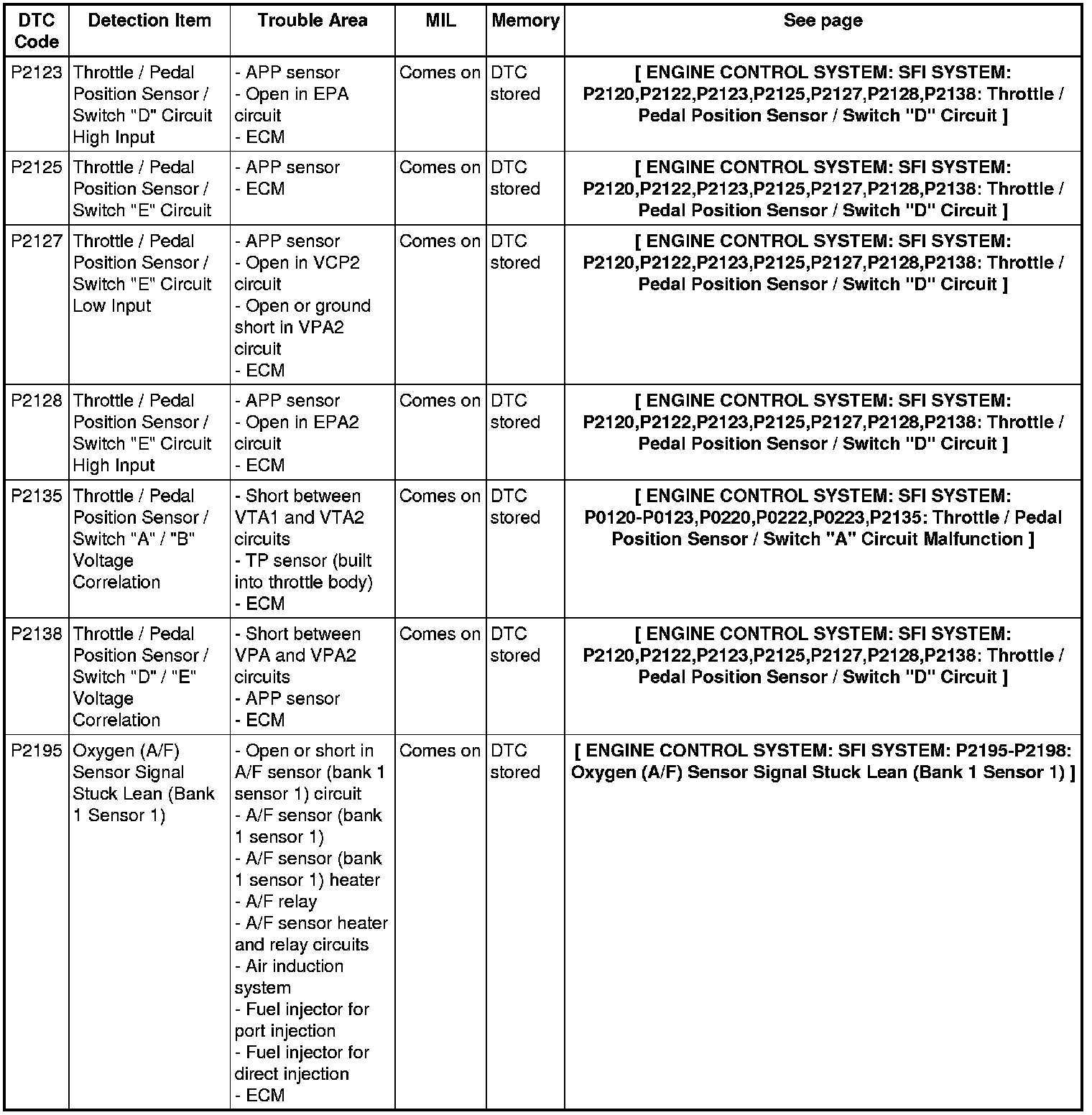

P2123 - P2195:

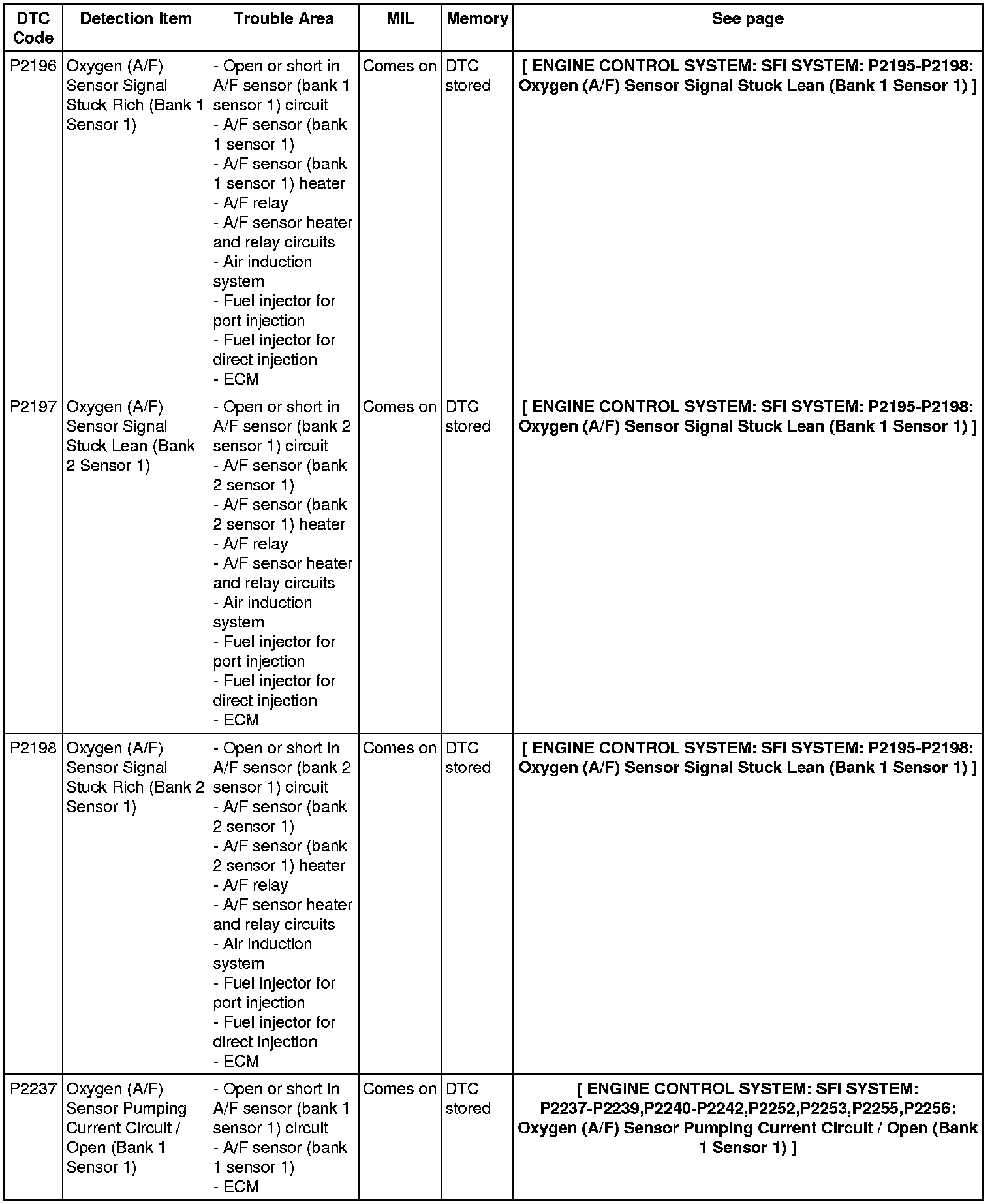

P2196 - P2237:

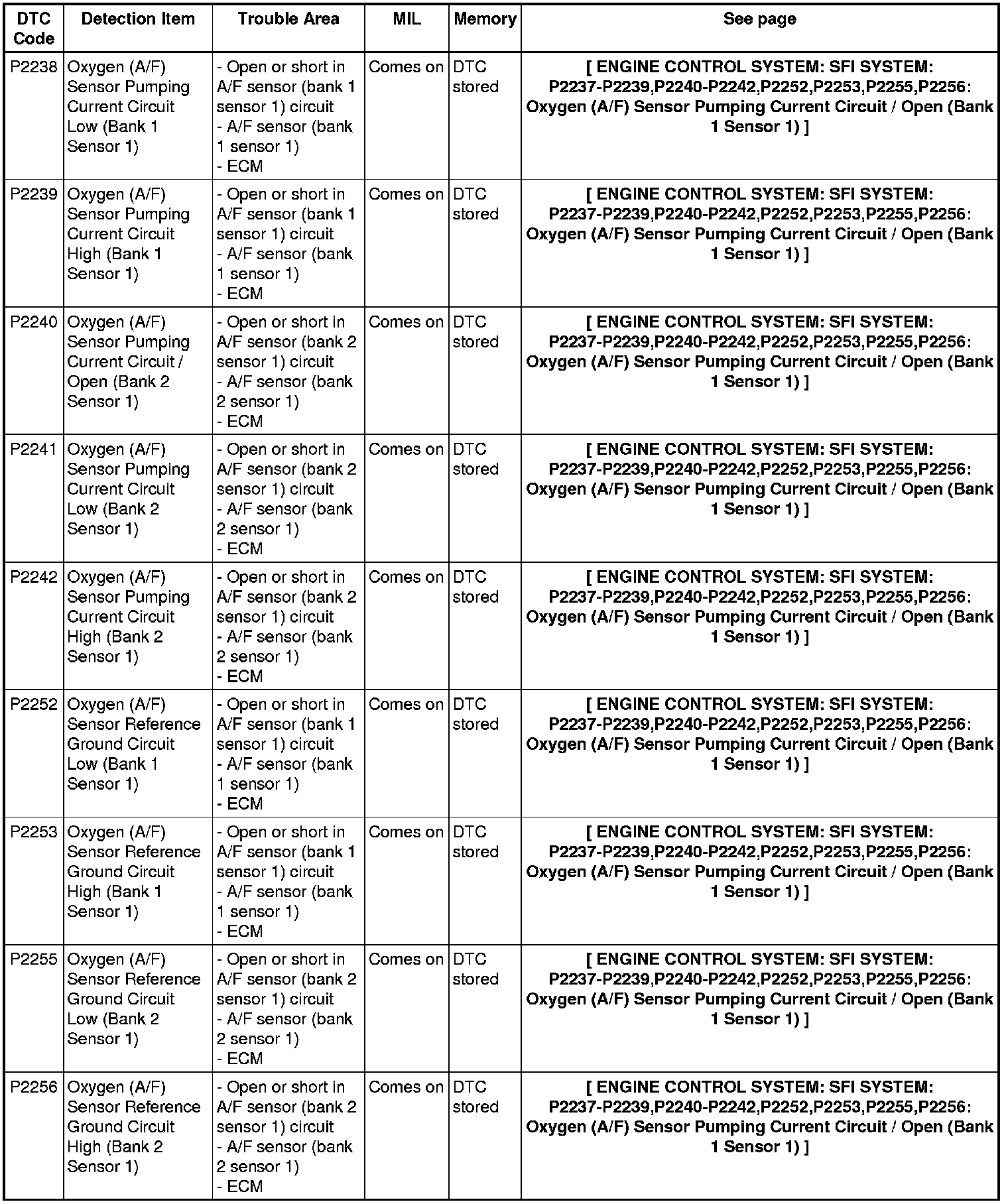

P2238 - P2256:

P2401 - P2419:

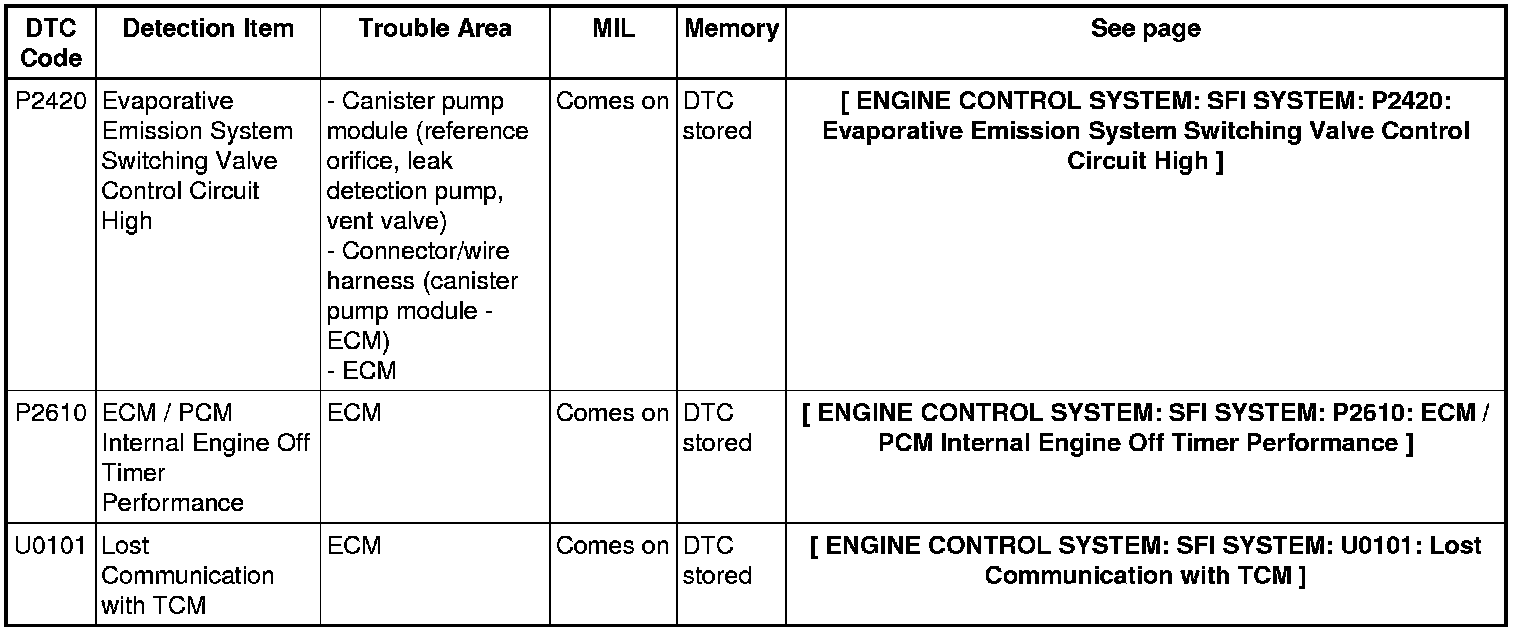

P2420 - U0101:
