Home
>>
Lexus
>>
2010
>>
GS 350 RWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Power Tilt and Power Telescopic Steering Column System
Power Tilt and Power Telescopic Steering Column System

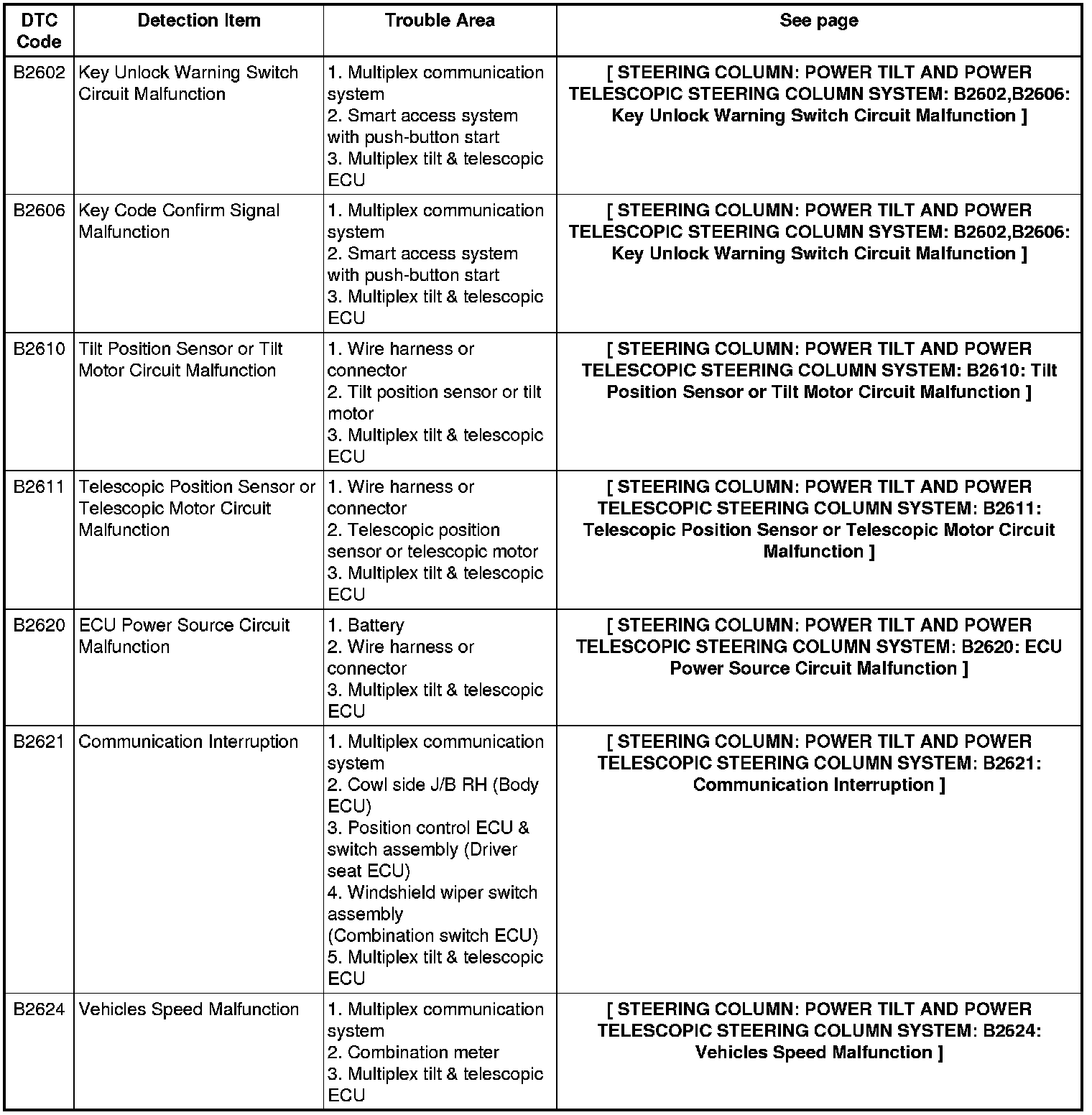

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed, check the circuit for that code listed in the table below.
B2602 - B2624:
