AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

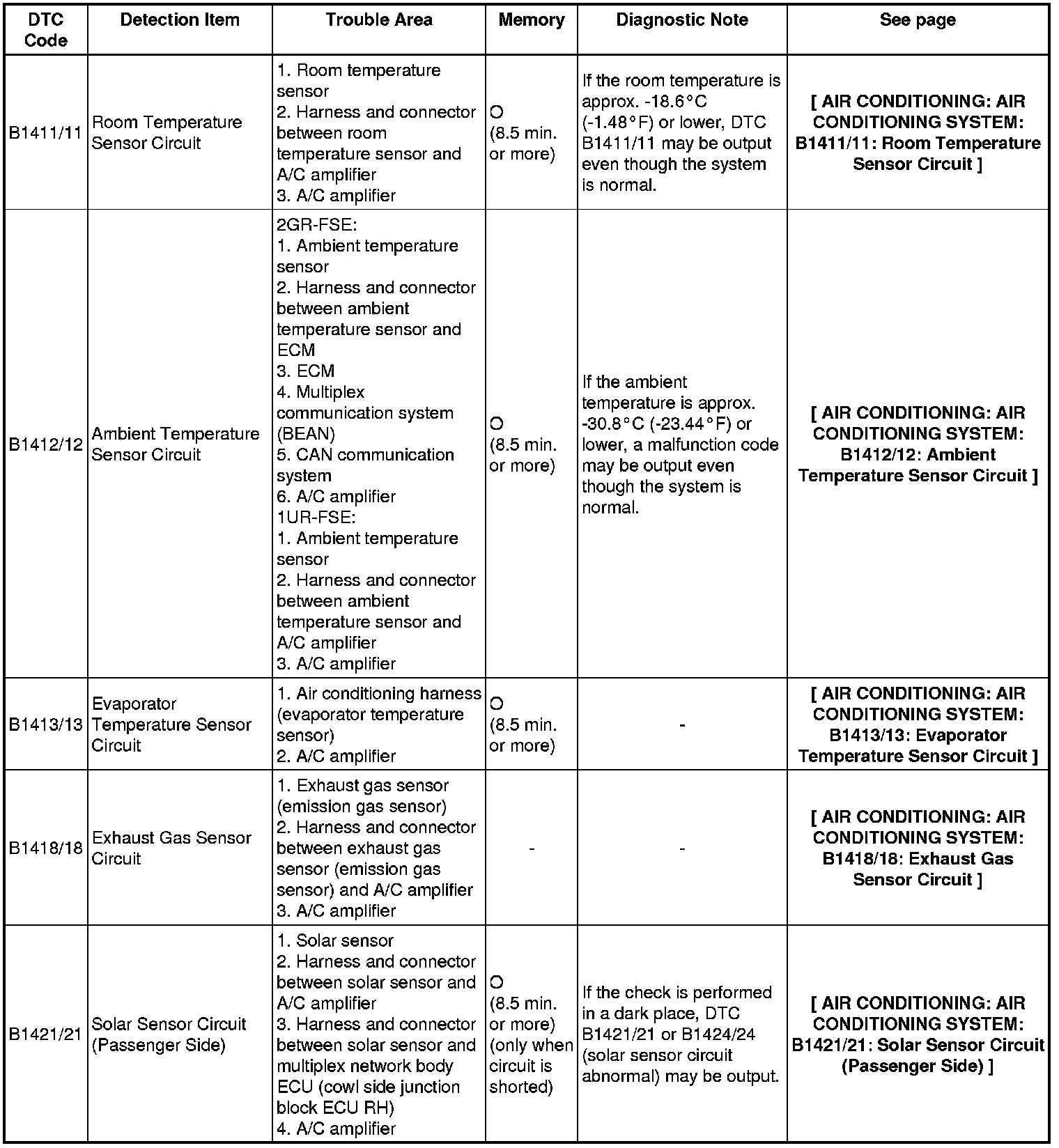

B1411/11 - B1421/21:

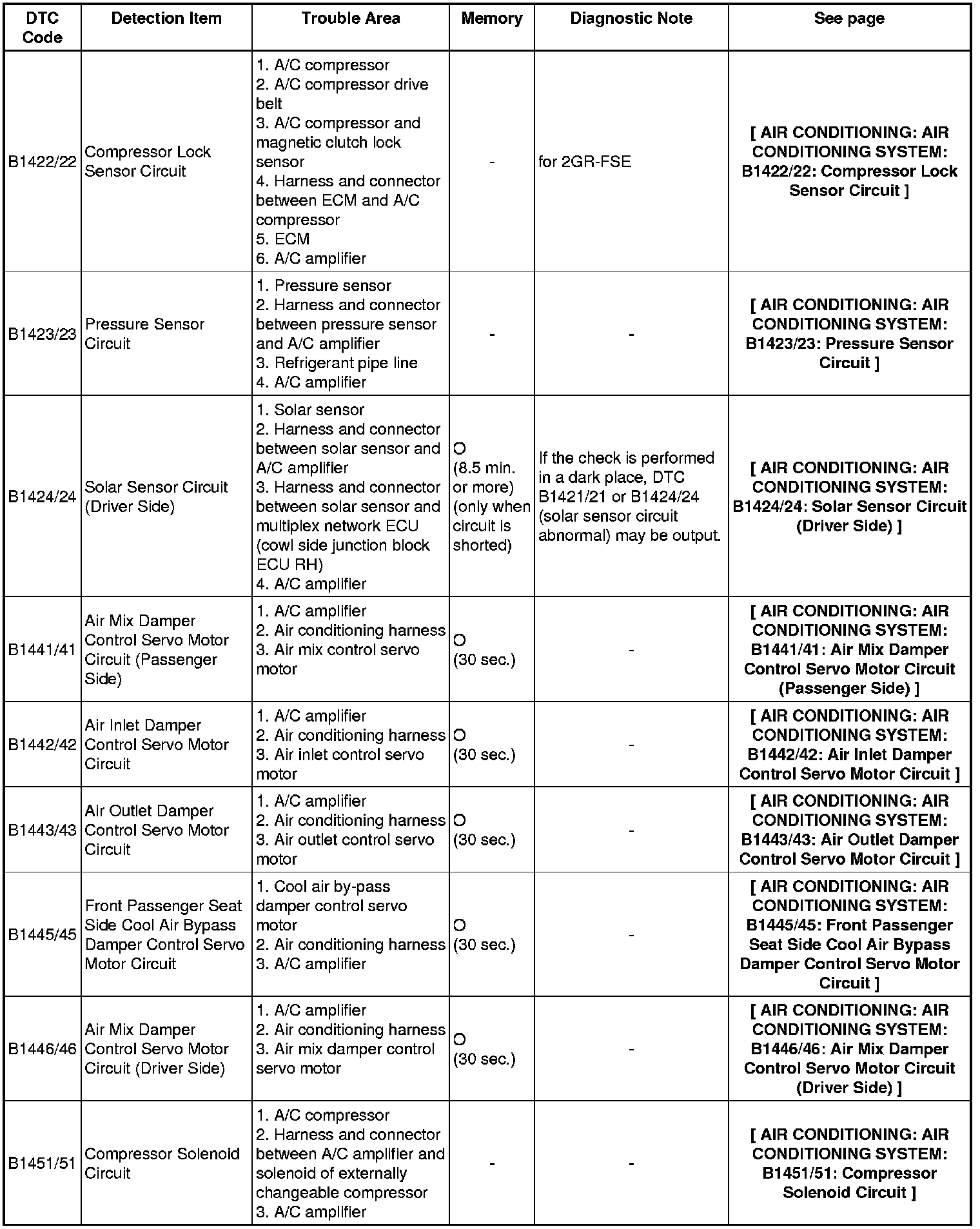

B1422/22 - B1451/51:
B1461/61 - B1497/97:
