C194F

SUSPENSION CONTROL: ACTIVE STABILIZER SUSPENSION SYSTEM: C194F: Operation of Static Test Mode is Incomplete (Test Mode DTC)
C194F - Operation of Static Test Mode is Incomplete (Test Mode DTC)

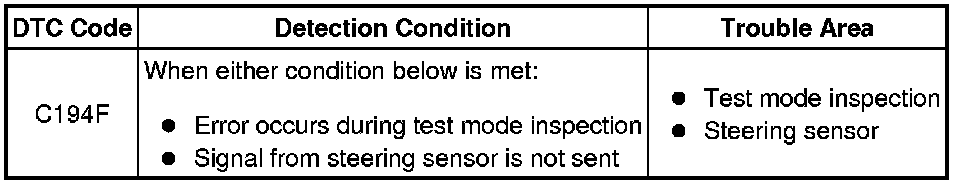

DESCRIPTION

This DTC is output when the test mode inspection ends despite it being incomplete.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC (CAN COMMUNICATION)

(a) Check for DTC Active Stabilizer Suspension System.

OK:

DTC is not output.

NG -- PROCEED TO DTC FLOWCHART Diagnosis System

OK -- PERFORM TEST MODE AGAIN Active Stabilizer Suspension System
