Replacement

AXLE: FRONT AXLE HUB BOLT: REPLACEMENT

1. REMOVE FRONT WHEEL

2. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY Removal

3. REMOVE FRONT DISC Disassembly

4. REMOVE FRONT AXLE HUB BOLT

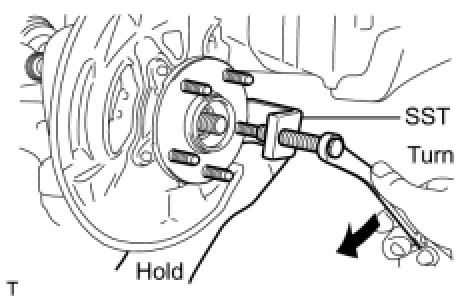

(a) Using SST, remove the front axle hub bolt.





SST : 09628-10011

NOTICE:
Do not damage the threads of the hub bolts.

5. INSTALL FRONT AXLE HUB BOLT

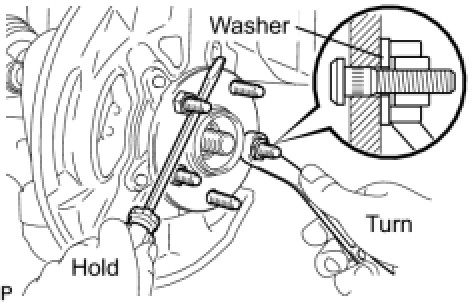

(a) Install a washer and nut to a new bolt as shown in the illustration.





(b) Using a screwdriver or an equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.

NOTICE:
Do not damage the threads of the hub bolts.

6. INSTALL FRONT DISC Reassembly

7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Installation

8. INSTALL FRONT WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
