Removal

AIR CONDITIONING: WATER HOSE JOINT (for 2GR-FSE): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE V-BANK COVER Removal

3. REMOVE ENGINE REAR COVER

4. DISCONNECT HEATER BLOWER WIRE Removal

5. REMOVE WATER BY-PASS GLOW PLUG Removal

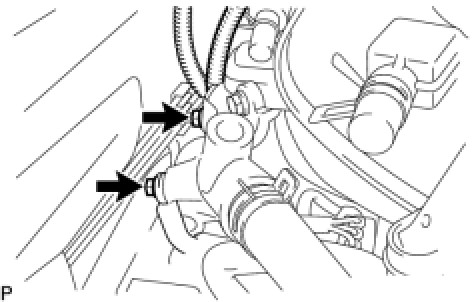

6. REMOVE HEATER BLOWER WIRE

(a) Disconnect the connector.





HINT
If the engine block heater bracket needs to be replaced, disconnect it from the connector.

NOTICE:
Be careful not to damage the plastic connector's lock tab.

(b) Remove the 2 bolts and wire.

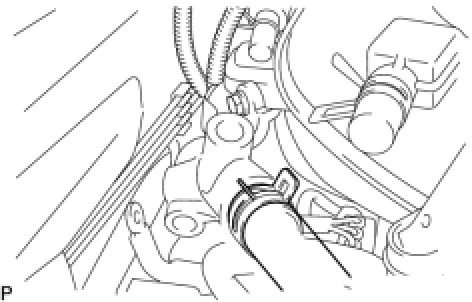

7. DISCONNECT NO. 7 WATER BY-PASS HOSE

(a) Using pliers, grip the claws of the clamp and slide the clamp to disconnect the water hose.





HINT
* Before disconnecting the hose, check the clamp position so that it can be reinstalled in the same position.
* Collect the engine coolant in a container.

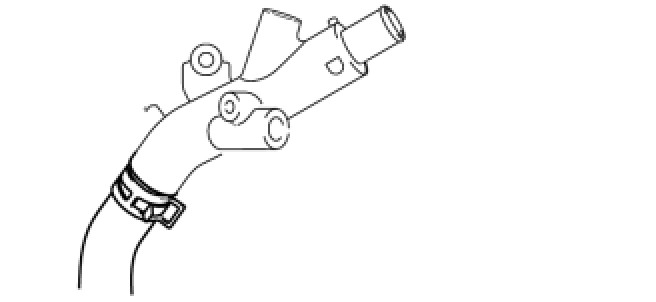

8. DISCONNECT NO. 8 WATER BY-PASS HOSE

(a) Using pliers, grip the claws of the clamp and slide the clamp to disconnect the water hose.





HINT
* Before removing the hose, check the clamp position so that it can be reinstalled in the same position.
* Collect the engine coolant in a container.

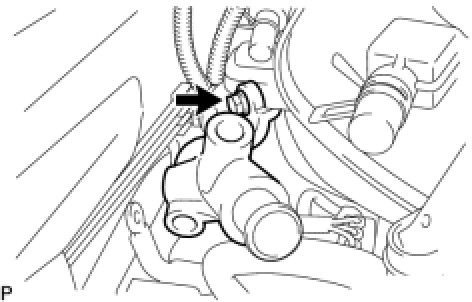

9. REMOVE WATER HOSE JOINT

(a) Remove the bolt and hose joint.
