Installation

BRAKE: BRAKE BOOSTER (for 2GR-FSE): INSTALLATION

1. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS

(a) Temporarily install the push rod clevis with the lock nut.

(b) Adjust and tighten the push rod clevis with the lock nut Adjustments.

2. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

(a) Install the grommet and check valve assembly.

3. INSTALL BRAKE BOOSTER GASKET

(a) Install a new brake booster gasket to the brake booster assembly.

4. INSTALL BRAKE BOOSTER ASSEMBLY

(a) Install the brake booster assembly with the 4 nuts.





Torque : 12.7 Nm (130 kgf-cm, 9 ft-lbf)

NOTICE:
Do not damage the brake tubes.

(b) Connect the vacuum hose with the clip.





5. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS

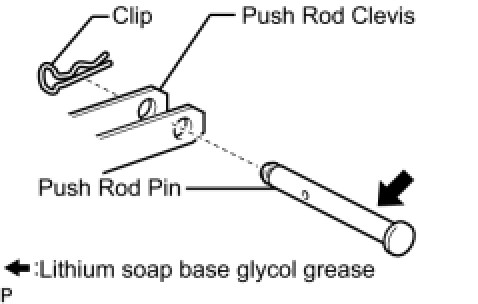

(a) Apply lithium soap base glycol grease to the clevis pin.





(b) Install the push rod clevis to the brake pedal support assembly with the clevis pin and a new clip.

6. INSTALL BRAKE PEDAL RETURN SPRING

(a) Install the brake pedal return spring.

7. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY Installation

8. INSTALL BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY Installation

9. INSTALL ENGINE ROOM RELAY BLOCK NO.3 Installation

10. ADD BRAKE FLUID Service and Repair

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

13. INSTALL FRONT FENDER TO COWL SIDE SEAL LH Installation

14. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation

15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation

16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation

17. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH Installation

18. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH Installation

19. ADD RESERVOIR WITH BRAKE FLUID Service and Repair

20. BLEED MASTER CYLINDER Service and Repair

21. BLEED BRAKE LINE Service and Repair

22. BLEED ABS AND TRACTION ACTUATOR ASSEMBLY Service and Repair

23. INSPECT FLUID LEVEL IN THE RESERVOIR Service and Repair

24. INSPECT FOR BRAKE FLUID LEAK

25. INSPECT ABS AND TRACTION ACTUATOR ASSEMBLY

Testing and Inspection

26. INSTALL COOL AIR INTAKE DUCT SEAL Installation

27. INSPECT BRAKE PEDAL HEIGHT Adjustments

28. INSPECT PEDAL FREE PLAY Adjustments

29. INSPECT PEDAL RESERVE DISTANCE Adjustments

30. INSTALL INSTRUMENT PANEL AIR BAG ASSEMBLY NO.1 LOWER Installation

31. INSTALL INSTRUMENT PANEL SAFETY PAD NO.1 SUB-ASSEMBLY Installation

32. INSTALL INSTRUMENT PANEL UNDER COVER NO.1 SUB-ASSEMBLY Installation

33. INSTALL INSTRUMENT SIDE PANEL LH Installation

34. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

35. INSTALL FRONT DOOR SCUFF PLATE LH Installation

36. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

37. INSTALL CONSOLE UPPER PANEL SUB-ASSEMBLY Installation

38. INSTALL CONSOLE UPPER PANEL GARNISH FRONT Installation

39. INSTALL ENGINE ROOM COVER SIDE Installation

40. INSTALL ENGINE ROOM SIDE COVER LH Installation

41. INSPECT VSC SENSOR SIGNAL

Test Mode Procedure

42. INSPECT SRS WARNING LIGHT

Diagnosis System
