Installation

BRAKE CONTROL: BRAKE ACTUATOR (for 2GR-FSE): INSTALLATION

1. INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET

(a) Install the actuator assembly with bracket to the body with the 2 bolts and nut.





Torque : 19 Nm (195 kgf-cm, 14 ft-lbf)

NOTICE:
Do not to damage the brake tubes.

(b) Using SST, connect the brake No.3 tube to the flexible hose.





SST : 09023-00101

Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

(c) Install the grommet to the body.

NOTICE:
Make sure that the grommet is installed correctly.

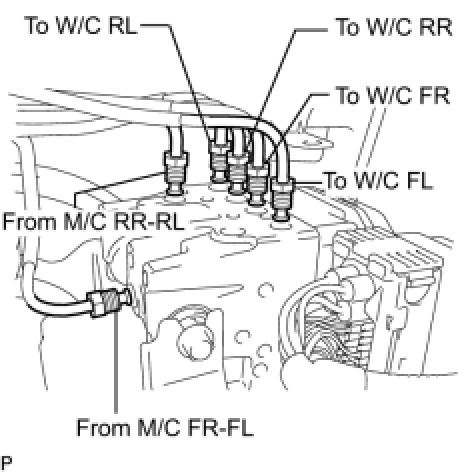

(d) Temporarily tighten each brake tube to the connect positions of the actuator assembly with bracket as shown in the illustration.

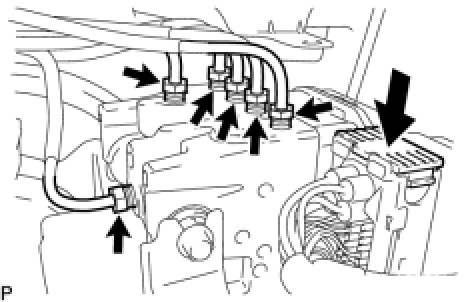

(e) Using SST, fully tighten each brake tube to the connect positions of the actuator assembly with bracket as shown in the illustration.

SST : 09023-00101

Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)





(f) Connect the actuator connector.

NOTICE:
Make sure that the connector is locked securely.

2. INSTALL BRAKE MASTER WITH PLATE CYLINDER SUB- ASSEMBLY Removal

3. INSTALL ENGINE ROOM RELAY NO.3 BLOCK

4. ADD RESERVOIR WITH BRAKE FLUID Service and Repair

5. BLEED BRAKE MASTER CYLINDER SUB-ASSEMBLY Service and Repair

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Repair Instruction - Initialization

7. BLEED BRAKE LINE Service and Repair

8. INSTALL FRONT WHEEL

9. INSPECT DTC

Vehicle Stability Control System

10. BLEED ABS AND TRACTION ACTUATOR ASSEMBLY Service and Repair

11. INSPECT FLUID LEVEL IN RESERVOIR Service and Repair

12. INSPECT BRAKE FLUID LEAKAGE

13. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

14. INSTALL FRONT FENDER TO COWL SIDE SEAL LH Installation

15. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation

16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY Installation

17. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY Installation

18. INSTALL ENGINE ROOM SIDE COVER LH Installation

19. INSTALL ENGINE ROOM COVER SIDE Installation

20. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH Installation

21. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH Installation

22. INSTALL COOL AIR INTAKE DUCT SEAL Installation

23. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION

Diagnosis System

24. INSPECT VSC SENSOR SIGNAL

Test Mode Procedure

25. INSPECT ACTUATOR WITH TECHSTREAM

Testing and Inspection
