Installation

BRAKE: REAR BRAKE FLEXIBLE HOSE: INSTALLATION

1. INSTALL REAR BRAKE FLEXIBLE HOSE

(a) Connect the rear brake flexible hose with the union bolt and a new gasket.





Torque : 30 Nm (306 kgf-cm, 22 ft-lbf)

NOTICE:
Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly rear

(b) Connect the brake tube to rear brake flexible hose with a SST while holding rear brake flexible hose with a wrench.

SST : 09023-00101

Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

NOTICE:
* Do not bend or damage the brake tube.
* Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

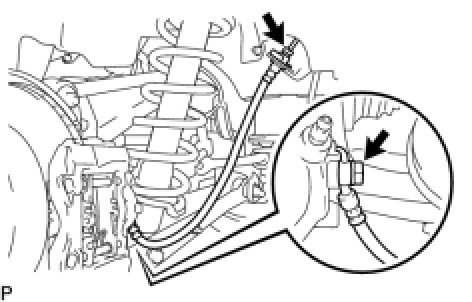

(c) Install the flexible hose with a new clip.

NOTICE:
* When installing the rear brake flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
* Install the clip as it will go.
2. DISABLE BRAKE CONTROL (for 1UR-FSE) Service and Repair

3. ADD RESERVOIR WITH BRAKE FLUID (for 2GR-FSE) Service and Repair

4. ADD RESERVOIR WITH BRAKE FLUID (for 1UR-FSE) Service and Repair

5. BLEED BRAKE LINE (for 2GR-FSE) Service and Repair

6. BLEED REAR BRAKE SYSTEM (for 1UR-FSE) Service and Repair

7. INSPECT FLUID LEVEL IN RESERVOIR (for 2GR-FSE) Service and Repair

8. CHECK BRAKE FLUID LEVEL (for 1UR-FSE) Service and Repair

9. CHECK AND CLEAR DTC (for 2GR-FSE)

Vehicle Stability Control System

10. CHECK AND CLEAR DTC (for 1UR-FSE)

Electronically Controlled Brake System

11. INSPECT FOR BRAKE FLUID LEAK

12. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
