Installation

BRAKE: FRONT BRAKE FLEXIBLE HOSE: INSTALLATION

1. INSTALL FRONT BRAKE FLEXIBLE HOSE

(a) Connect the front brake flexible hose with the union bolt and a new gasket.

Torque : 39 Nm (400 kgf-cm, 29 ft-lbf)





NOTICE:
Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly front

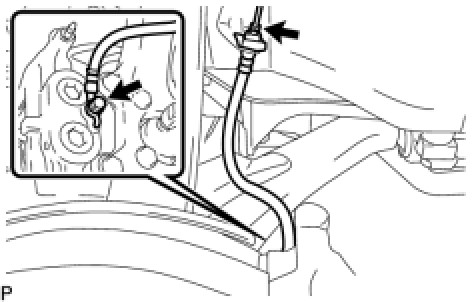

(b) Connect the brake tube to front brake flexible hose with a SST while holding flexible hose with a wrench.

SST : 09023-00101

Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

NOTICE:
* Do not bend or damage the brake tube
* Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.
(c) Install the front brake flexible hose with a new clip.

NOTICE:
* When installing the front brake flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
* Install the clip as it will go.
* Pay attention to the color of the identification mark (RH: white/white, LH: white/blue) because the front brake flexible hose is different between right and left (4WD vehicle).
2. DISABLE BRAKE CONTROL (for 1UR-FSE) Service and Repair

3. ADD RESERVOIR WITH BRAKE FLUID (for 2GR-FSE) Service and Repair

4. ADD RESERVOIR WITH BRAKE FLUID (for 1UR-FSE) Service and Repair

5. BLEED BRAKE LINE (for 2GR-FSE) Service and Repair

6. BLEED FRONT BRAKE SYSTEMS (for 1UR-FSE) Service and Repair

7. BLEED REAR BRAKE SYSTEM (for 1UR-FSE) Service and Repair

8. INSPECT FLUID LEVEL IN RESERVOIR (for 2GR-FSE) Service and Repair

9. CHECK BRAKE FLUID LEVEL (for 1UR-FSE) Service and Repair

10. CHECK AND CLEAR DTC (for 2GR-FSE)

Vehicle Stability Control System

11. CHECK AND CLEAR DTC (for 1UR-FSE)

Electronically Controlled Brake System

12. INSPECT FOR BRAKE FLUID LEAK

13. INSTALL FRONT WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
