Rear Package Tray Speaker

AUDIO / VISUAL: REAR PACKAGE TRAY SPEAKER: INSPECTION

1. INSPECT STEREO COMPONENT SPEAKER

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part, or other abnormalities.

(c) Measure the resistance of the speaker.

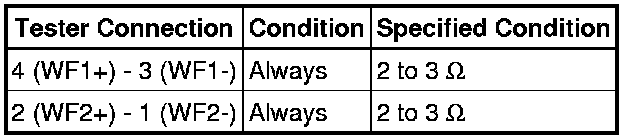

Standard Resistance:









(c) If the result is not as specified, replace the speaker.





2. INSPECT REAR HEADER SPEAKER (w/ Rear Header Speaker)

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part or other abnormalities.

(c) Measure the resistance of the speaker.





Standard Resistance:





(c) If the result is not as specified, replace the speaker.
