Installation

AUDIO / VISUAL: REAR PACKAGE TRAY SPEAKER: INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY





(a) Install the speaker with the 4 bolts.

HINT

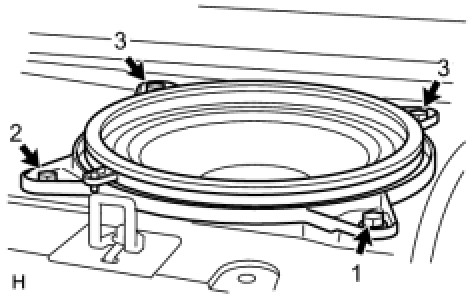

* Install the bolts in the order shown in the illustration.
* Do not touch the cone part of the speaker.
(b) Connect the connector.

2. INSTALL REAR HEADER SPEAKER ASSEMBLY

(a) Connect the connector.

(b) Install the speaker and attach the clip.





(c) Install the bolt.

HINT
Do not touch the cone part of the speaker.

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

4. INSTALL AUTOMATIC LIGHT CONTROL SENSOR Installation

5. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY Installation

6. INSTALL ROOF SIDE GARNISH INNER LH Installation

7. INSTALL ROOF SIDE GARNISH INNER RH Installation

8. INSTALL REAR SEAT SIDE GARNISH LH Installation

9. INSTALL REAR SEAT SIDE GARNISH RH Installation

10. INSTALL REAR DOOR SCUFF PLATE LH Installation

11. INSTALL REAR DOOR SCUFF PLATE RH Installation

12. INSTALL REAR SEAT OUTER BELT ASSEMBLY Installation

13. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH Installation

14. INSTALL REAR SEATBACK ASSEMBLY Installation

15. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH

16. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER

17. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
