Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.
1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

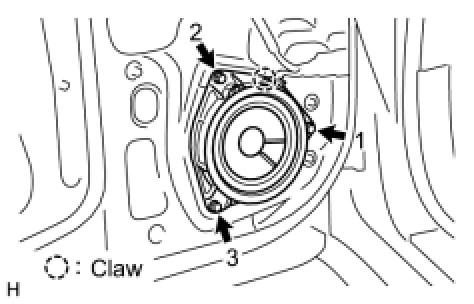

(a) Temporarily install the speaker by attaching the claws of the speaker to the door panel.

(b) Install the speaker with the 3 screws.

HINT
* Install the screws in the order shown in the illustration.
* Do not touch the cone part of the speaker.
(c) Connect the connector.

2. INSTALL FRONT DOOR TRIM PANEL ASSEMBLY Installation

3. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Installation
