Inspection

U660E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Measure the resistance between each terminal of the shift lever assembly when the shift lever is moved to each position.

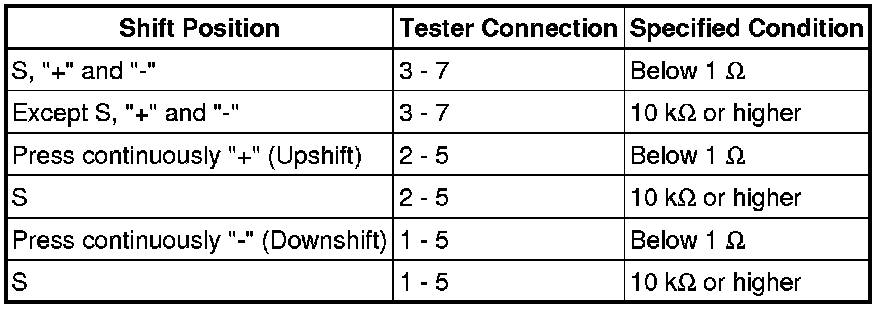

Standard resistance:





(b) If the resistance value is not as specified, replace the shift lock control ECU.
