Smart Access System With Push-Button Start
>>
System Diagram
System Diagram
2GR-FE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: SYSTEM DIAGRAM

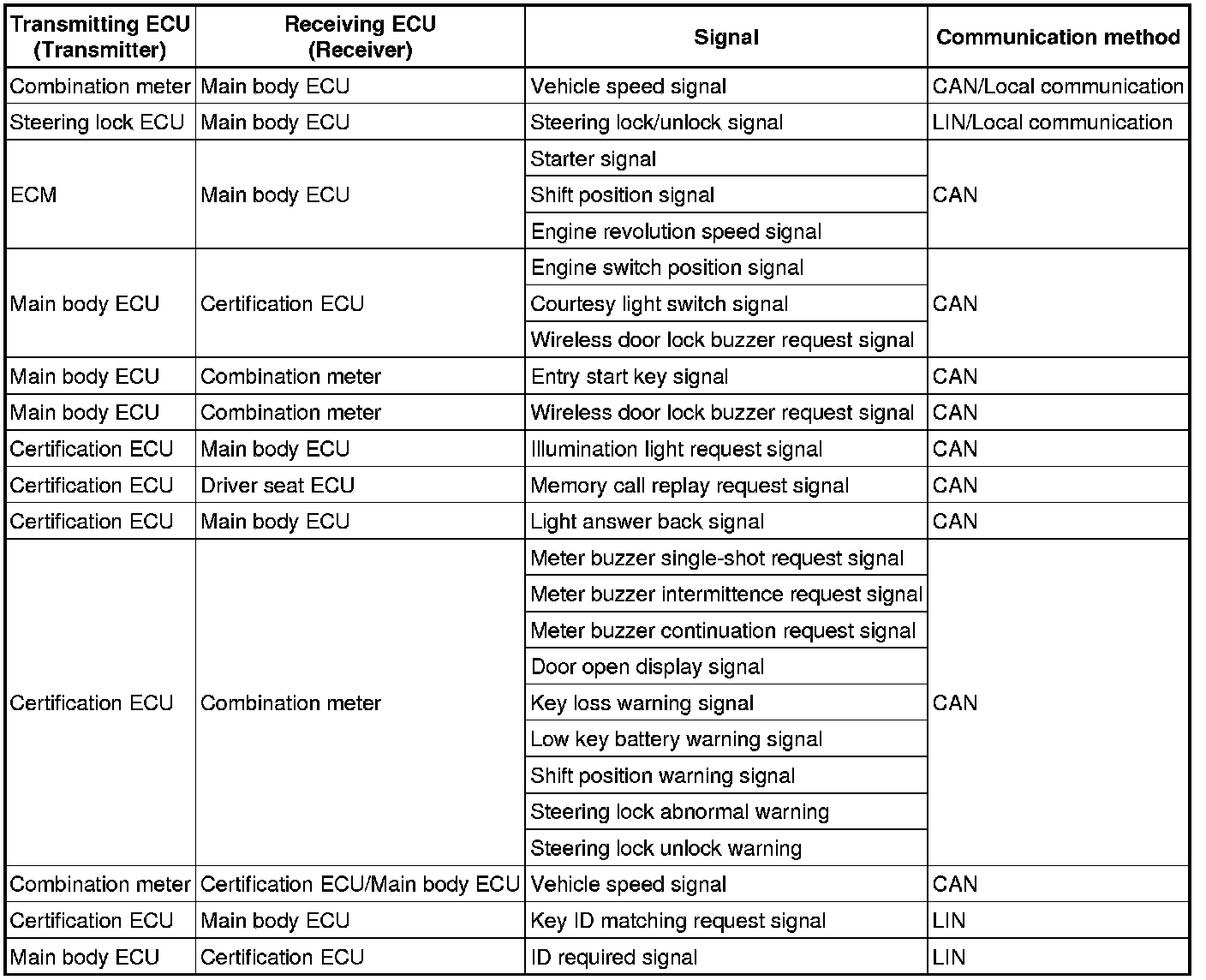

Communication table:
Communication table::
