Cooling System
Cooling System
SERVICE SPECIFICATIONS: 2GR-FE COOLING: SERVICE DATA

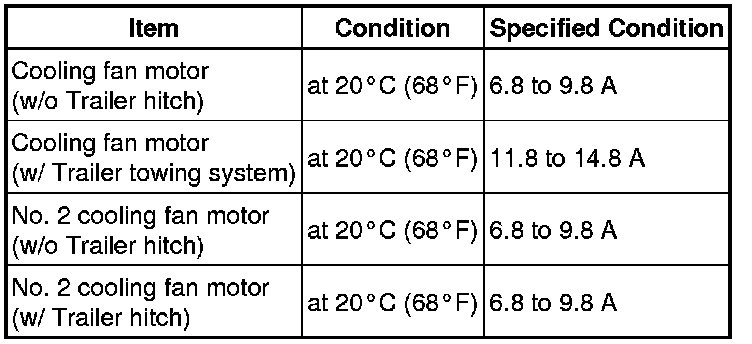

COOLING FAN MOTOR:

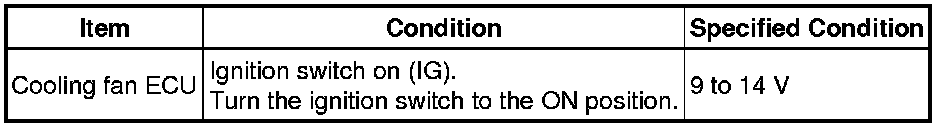

COOLING FAN ECU:

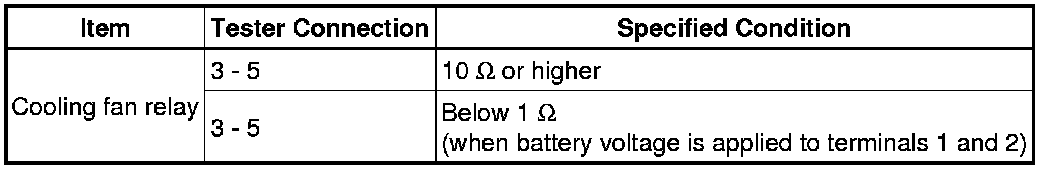

COOLING FAN RELAY:
