Home >> Lexus >> 2010 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Wire and Wire in Instrument Panel

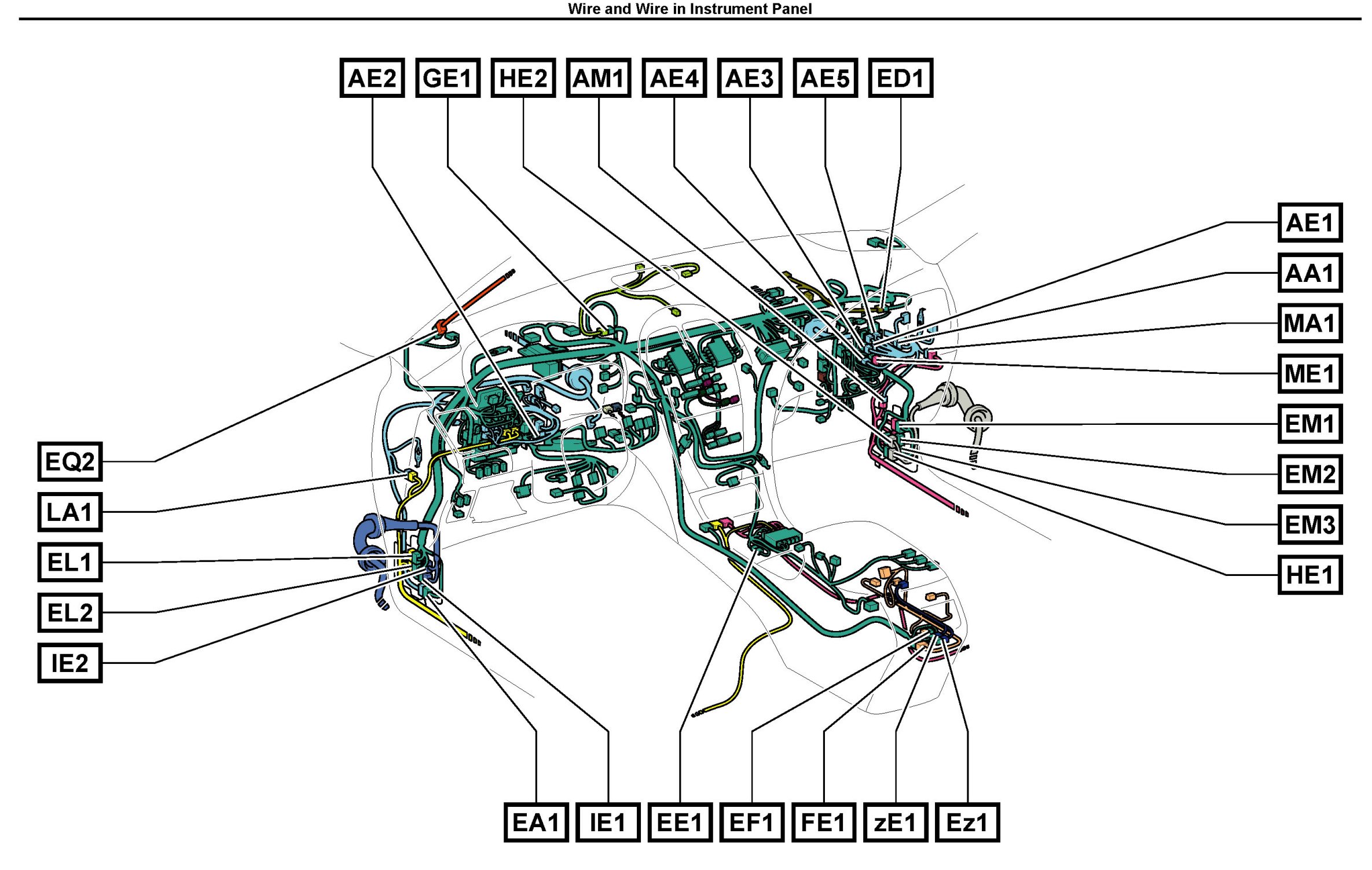

Wire and Wire in Instrument Panel

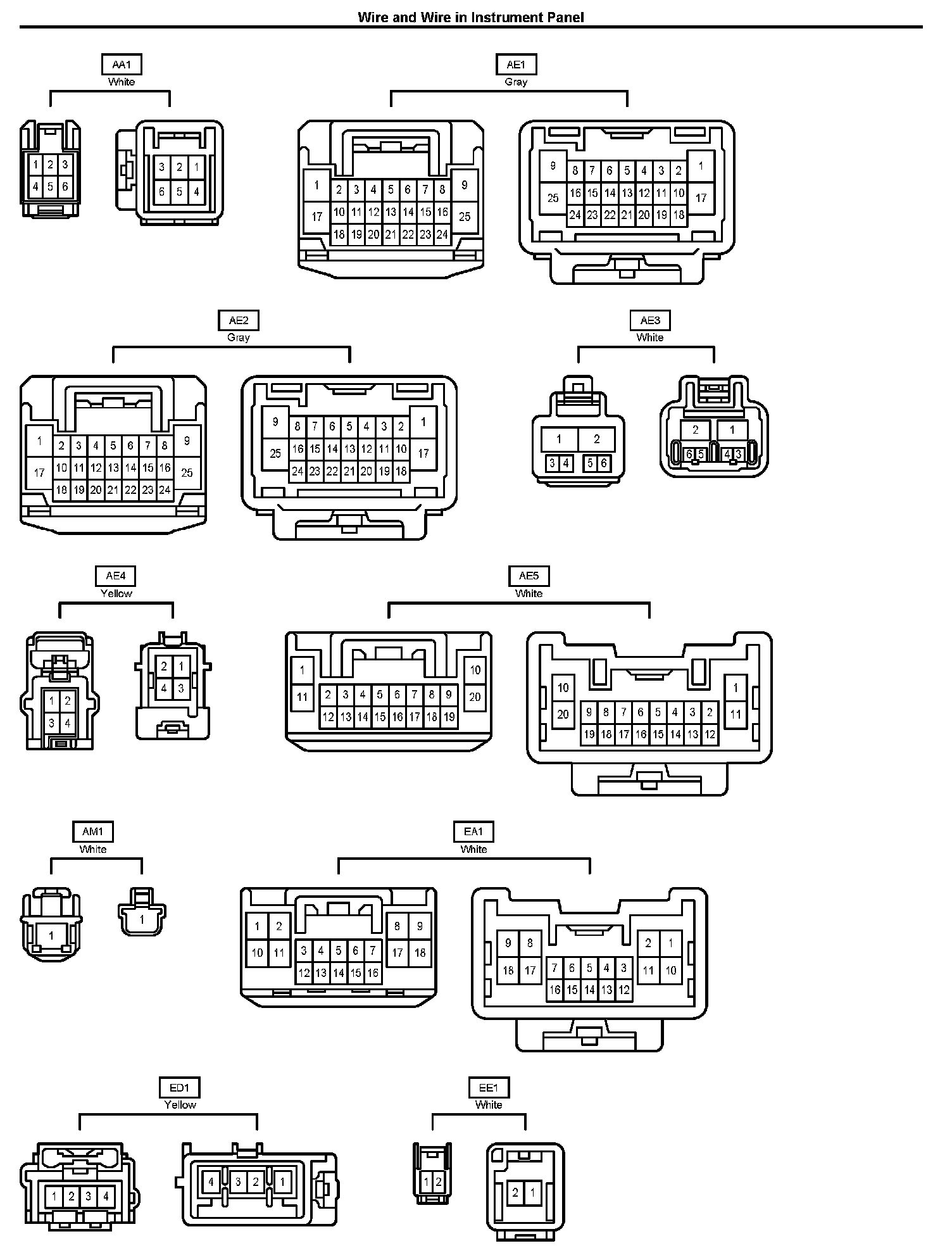

AA1-ZE1:




AA1-FF1:

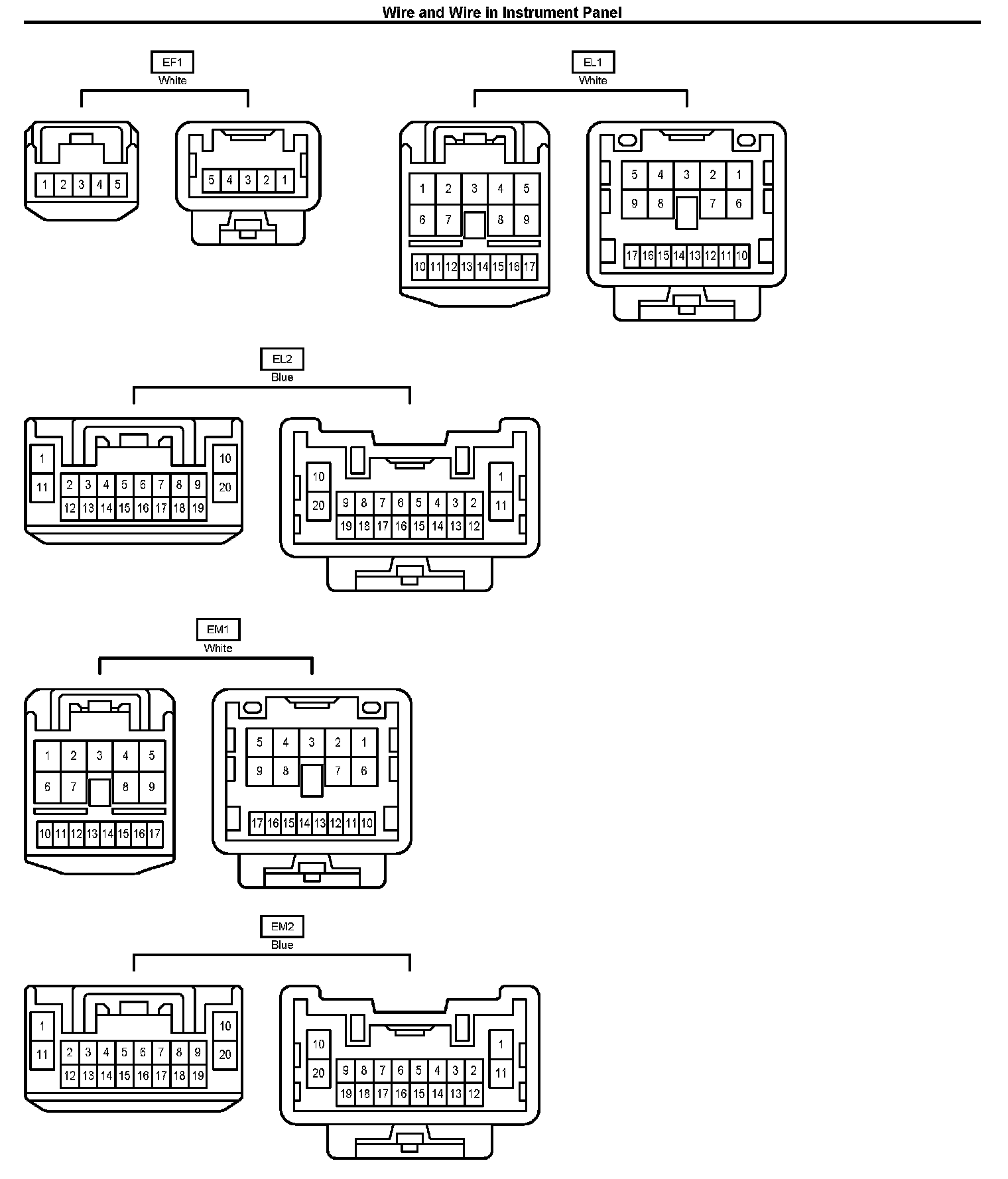

FF1-CM2:

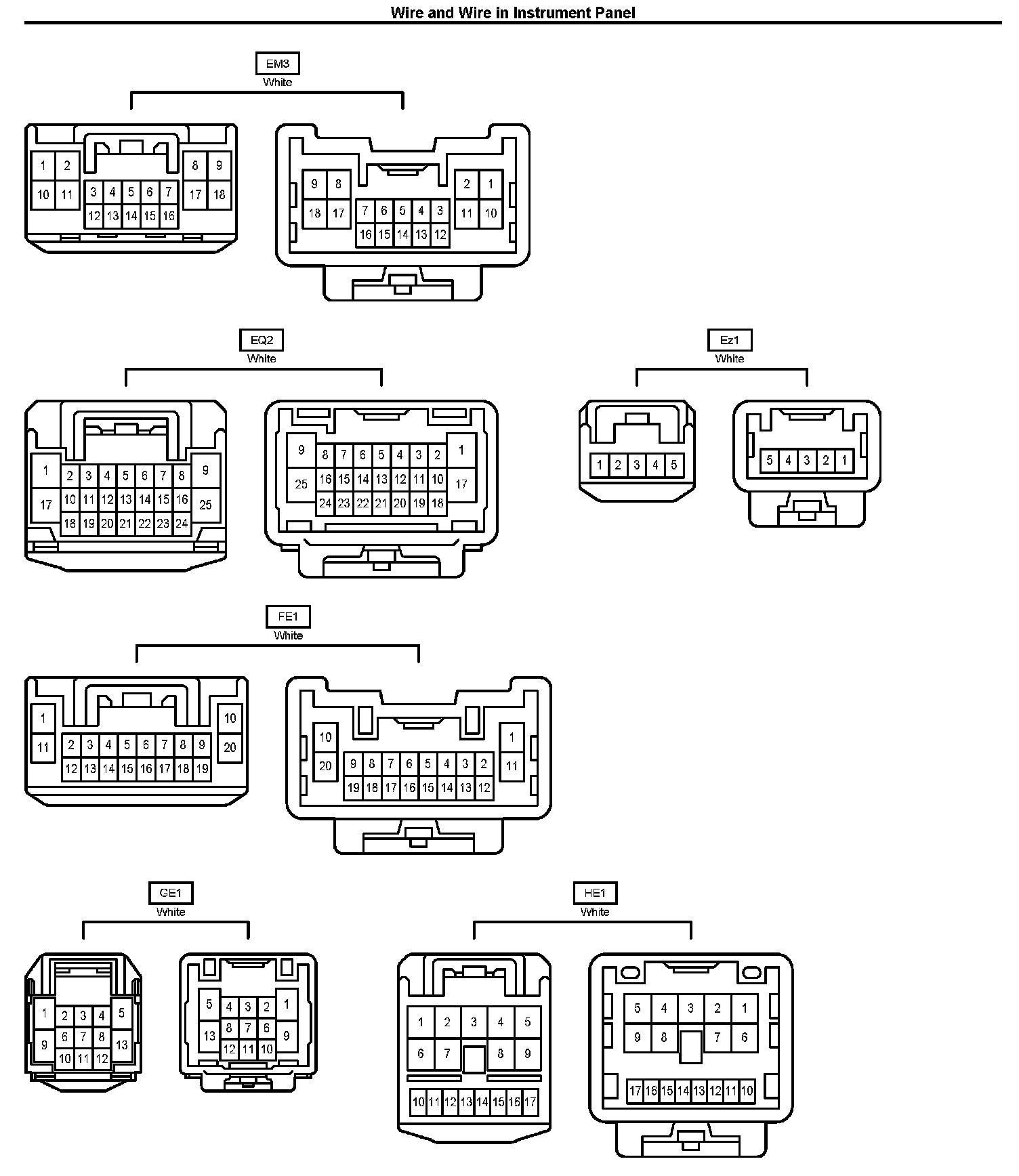

EM3-HE1:

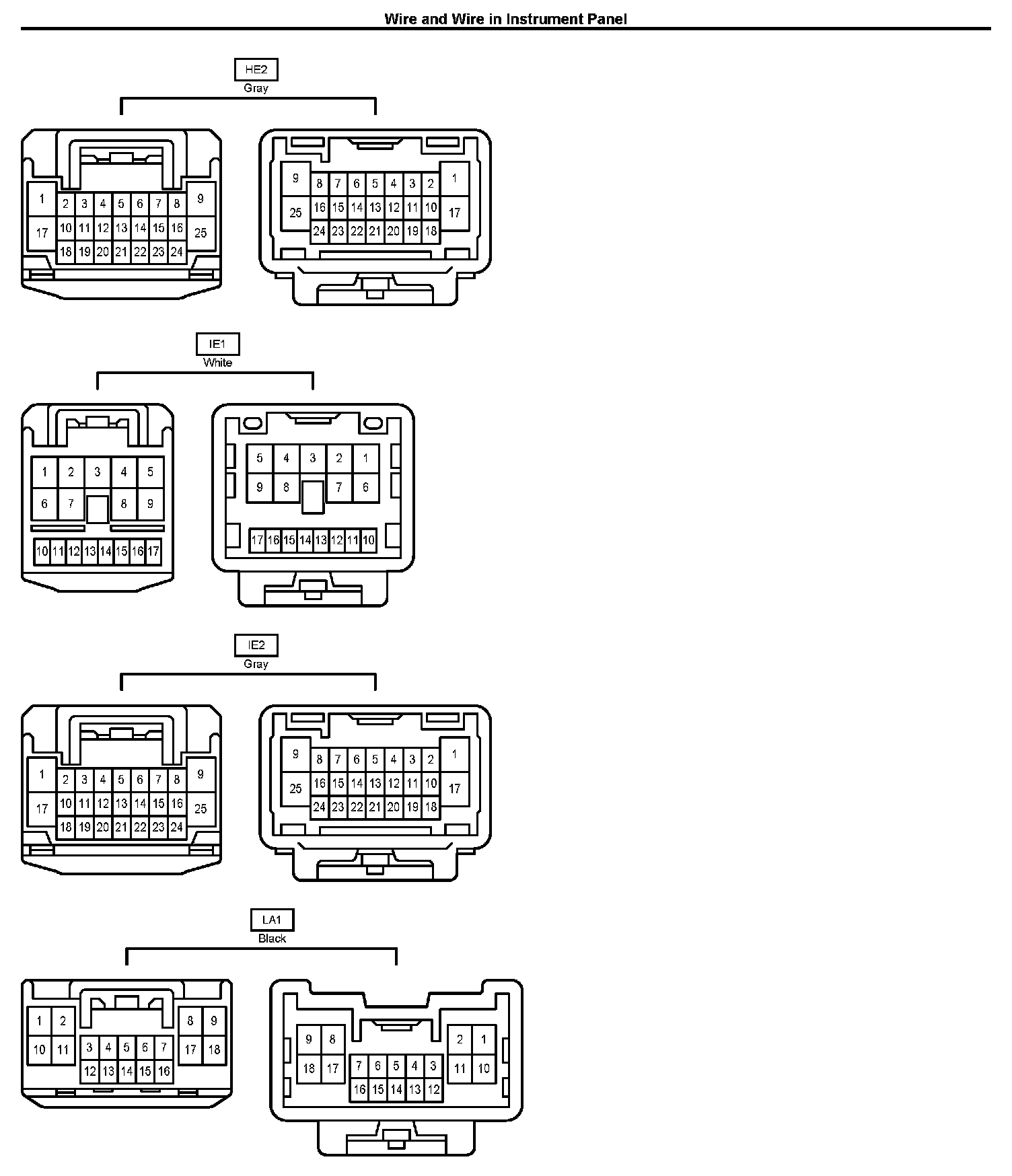

HE2-LA1:

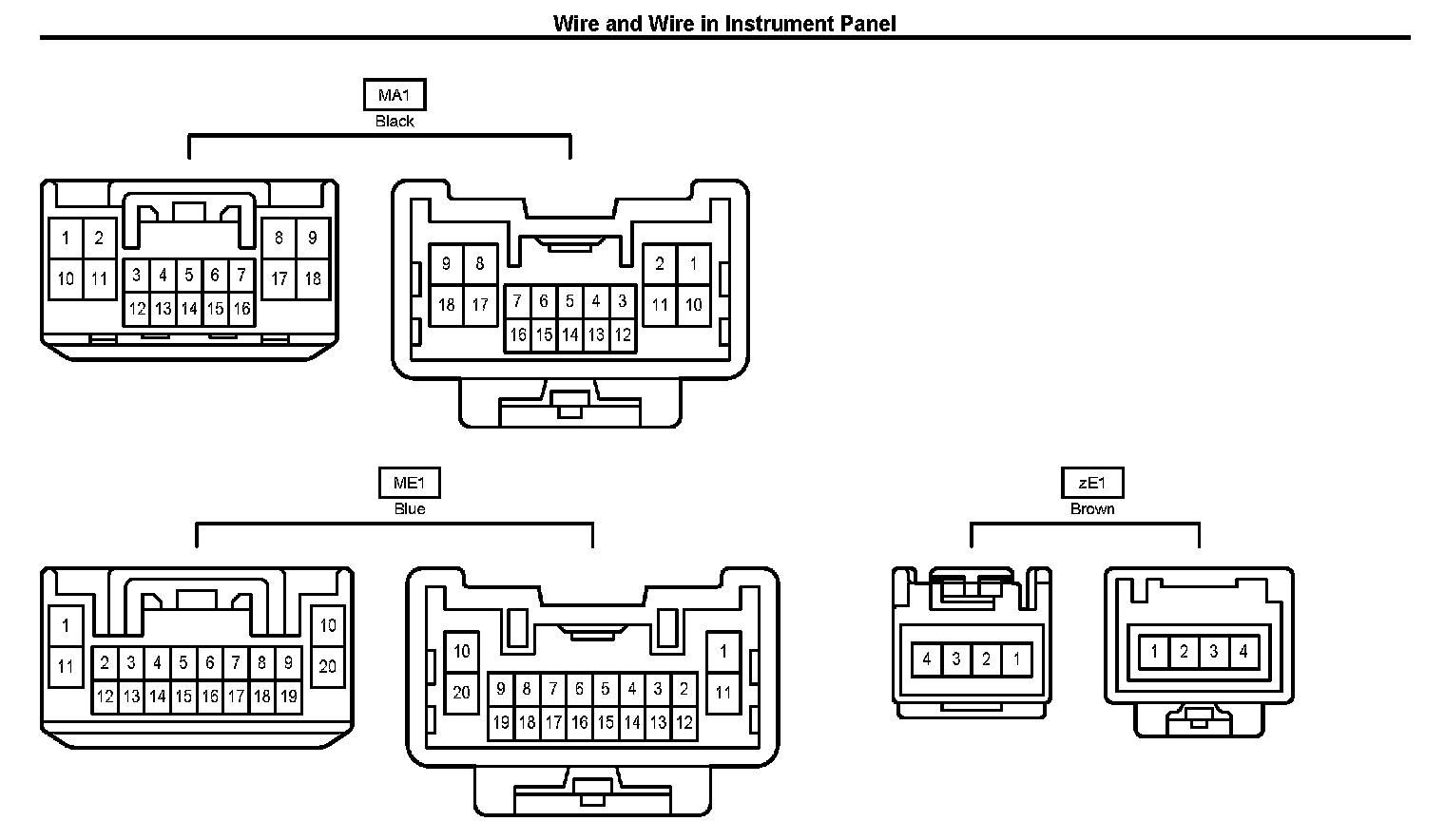

MA1-zE1:
