Home >> Lexus >> 2010 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector Views >> Floor Wire

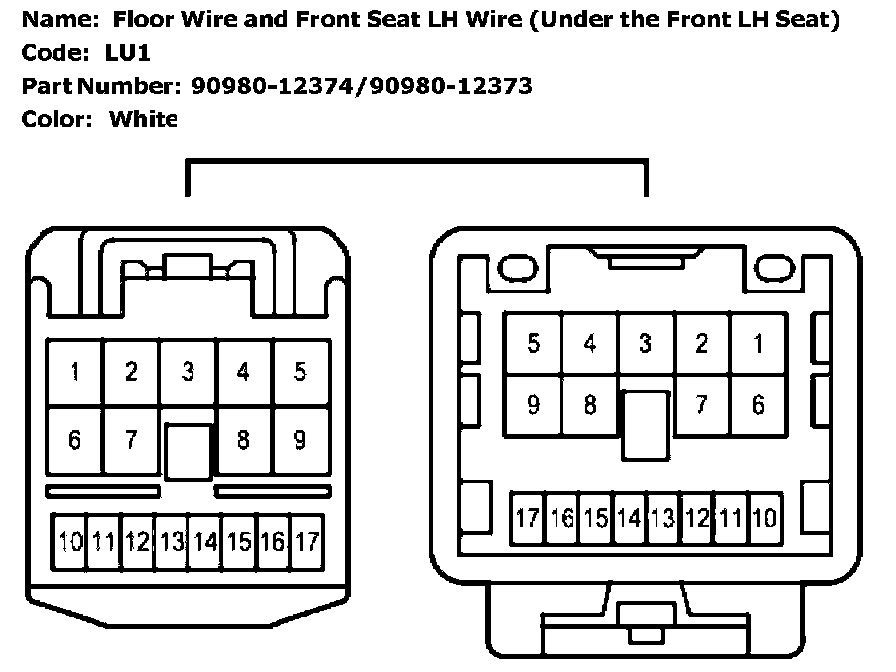

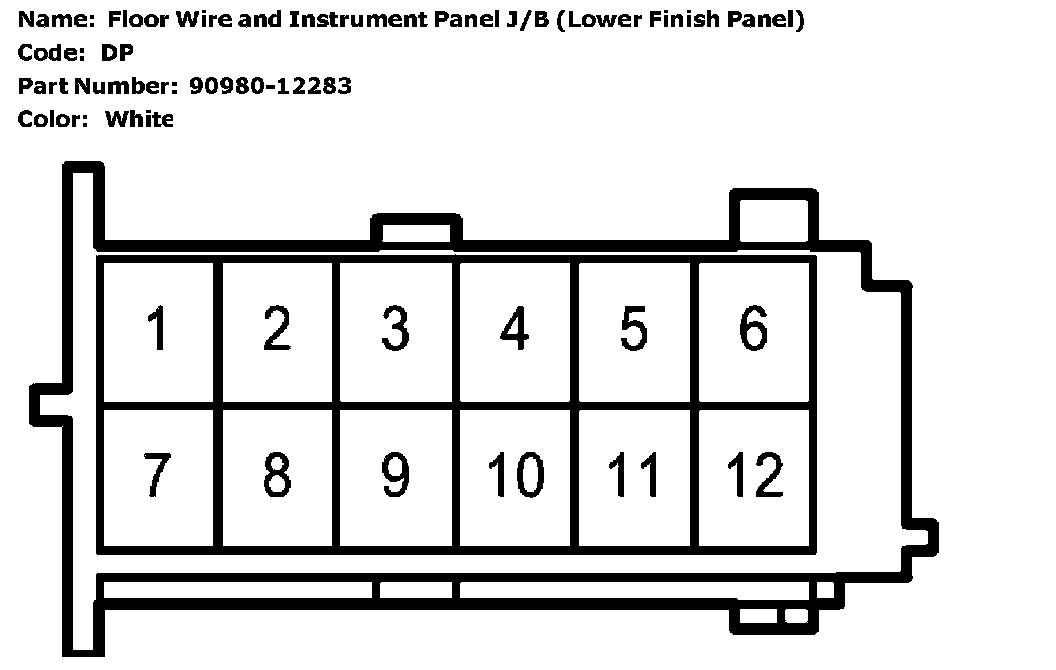

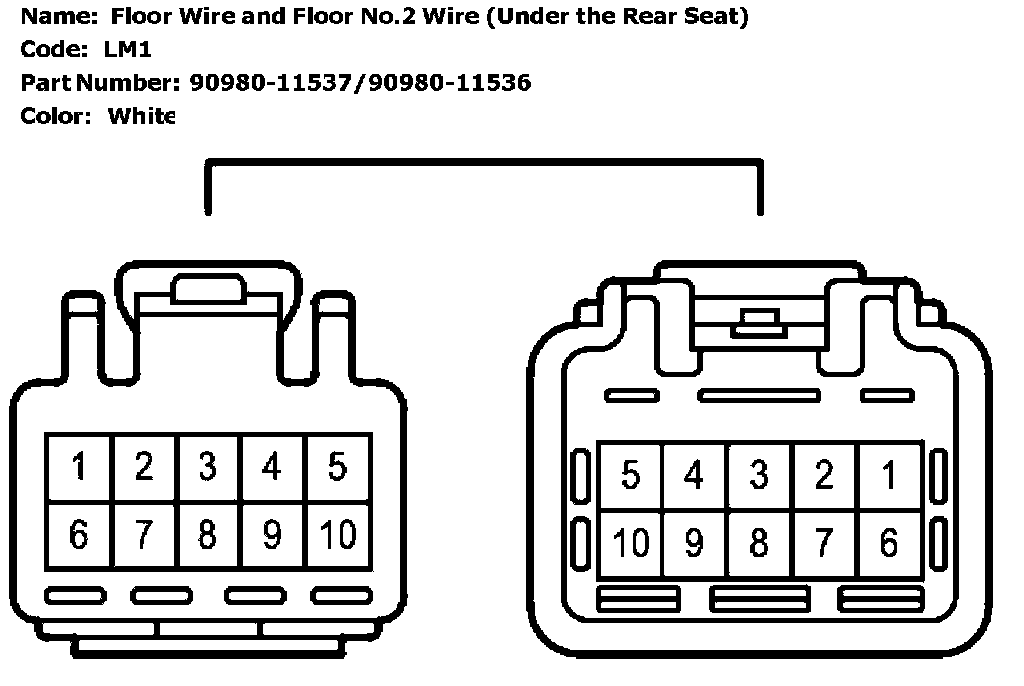

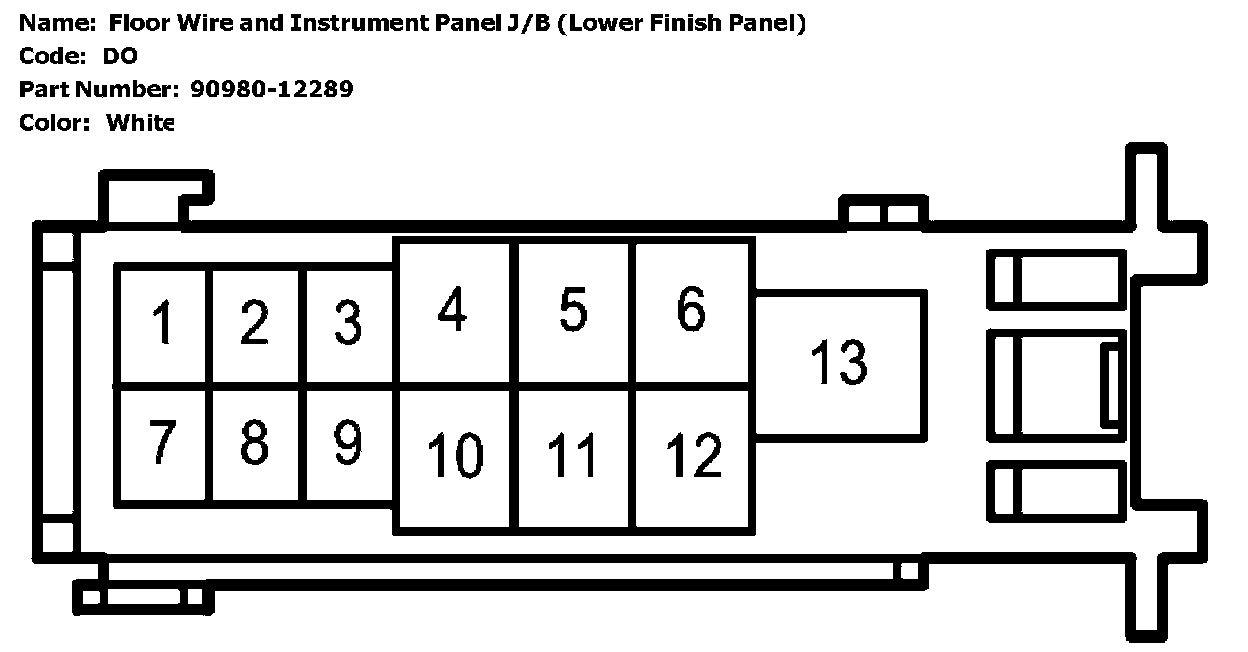

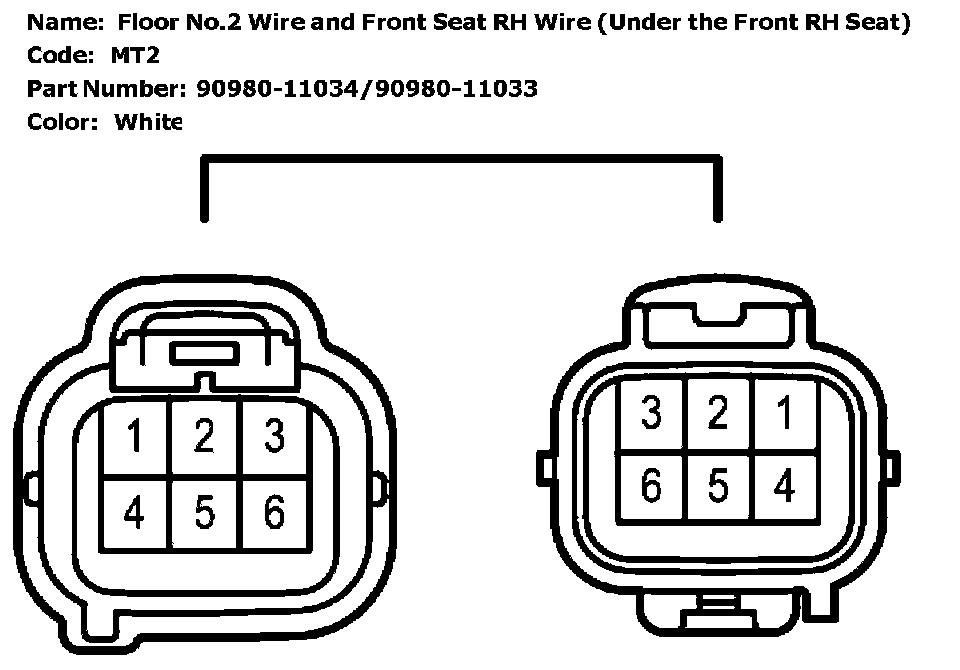

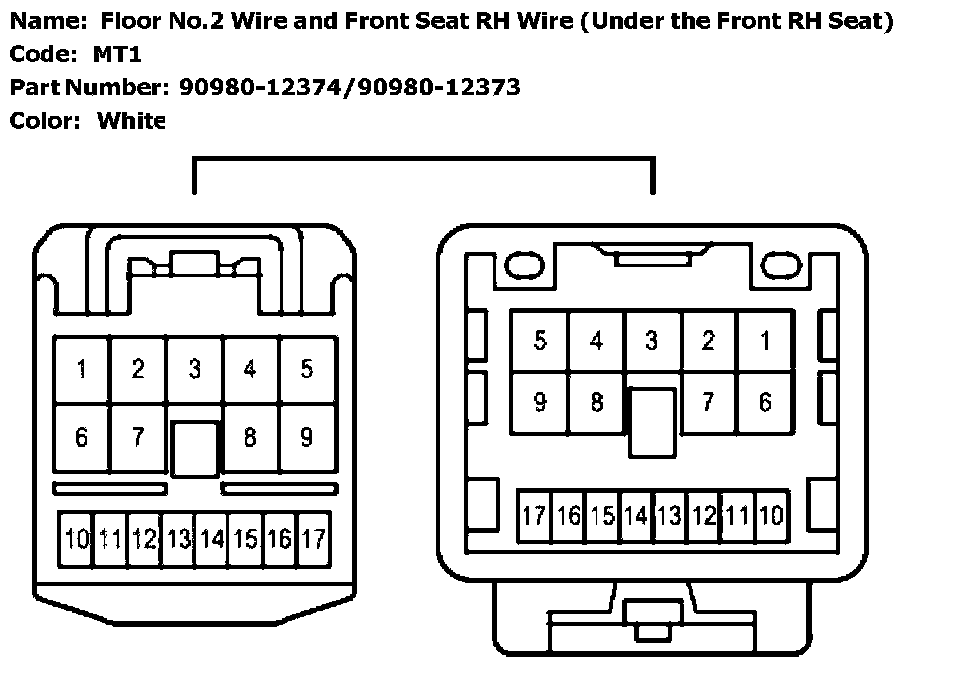

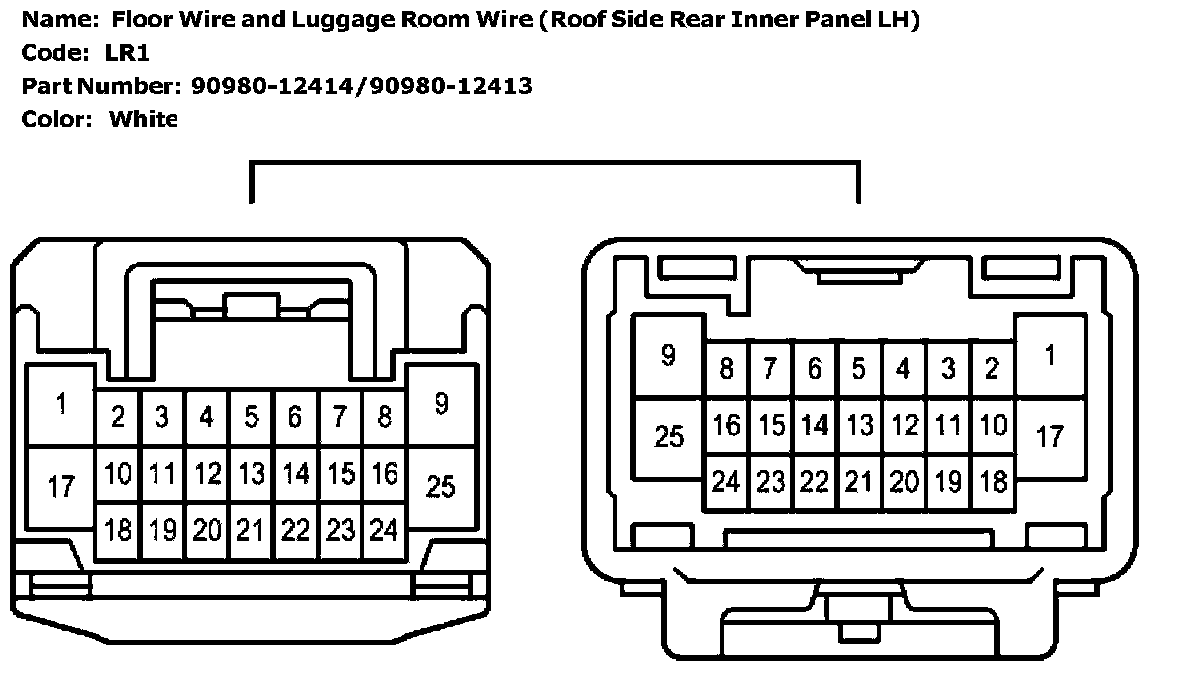

Floor Wire

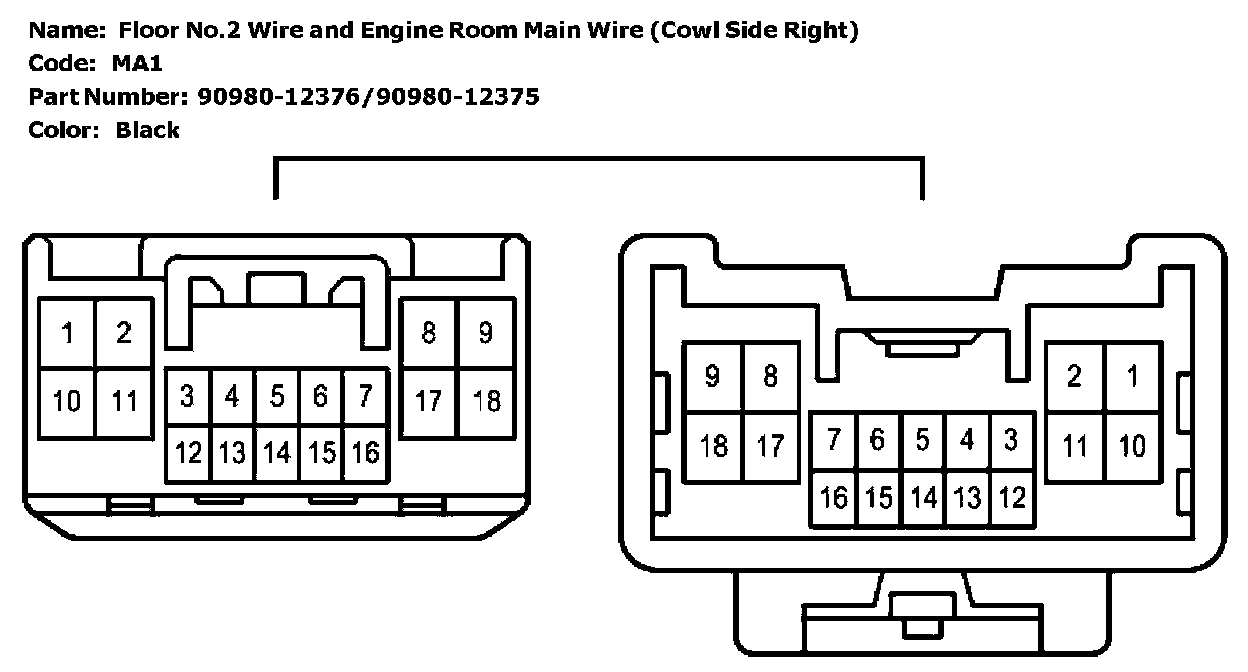

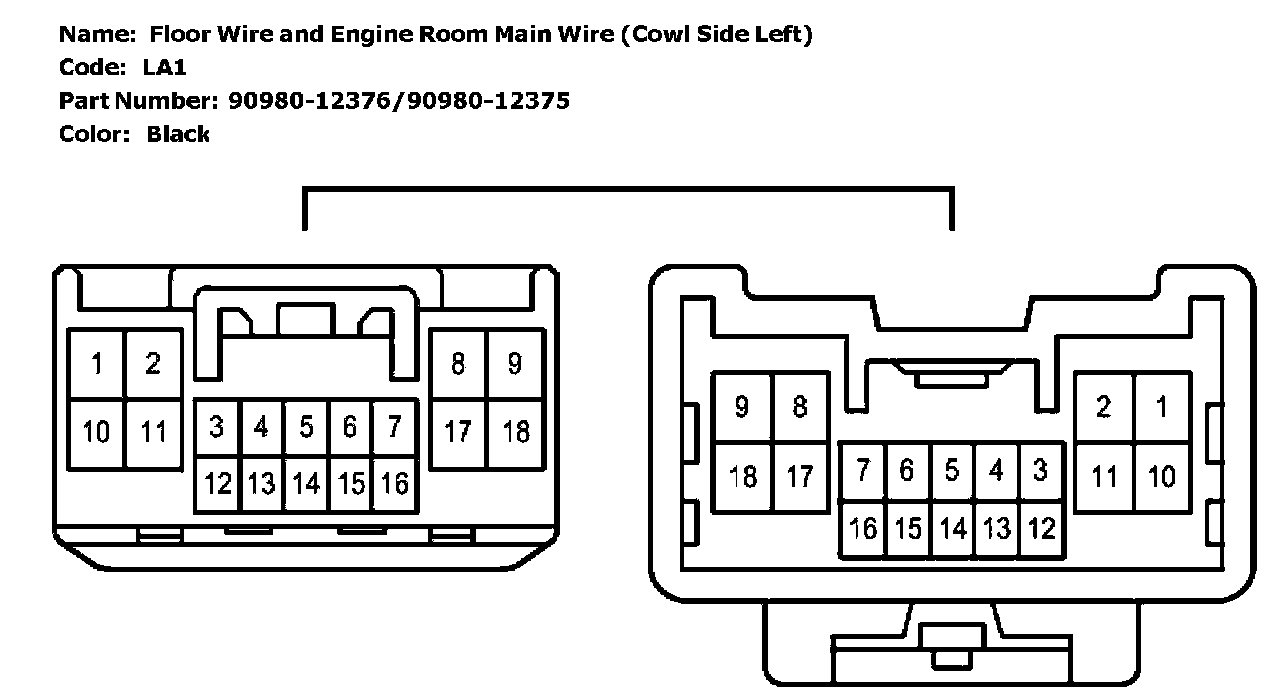

Black:

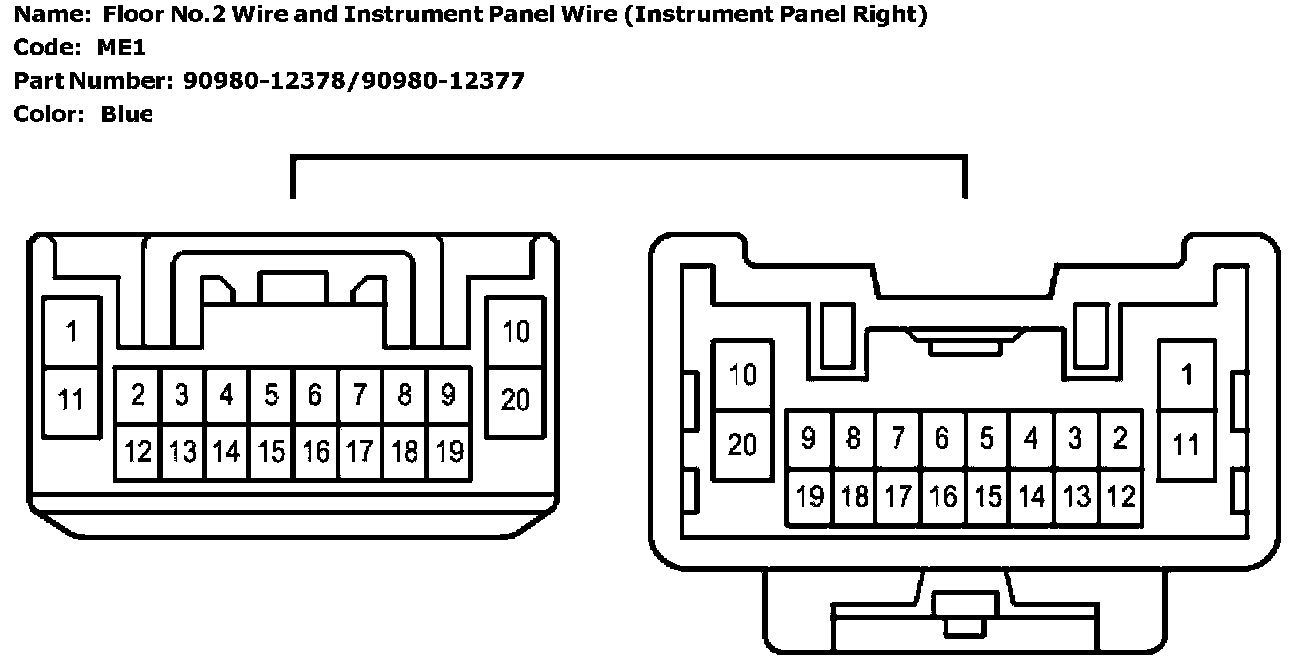

Blue:






Grey:






Black:
