Engine Room Main Wire

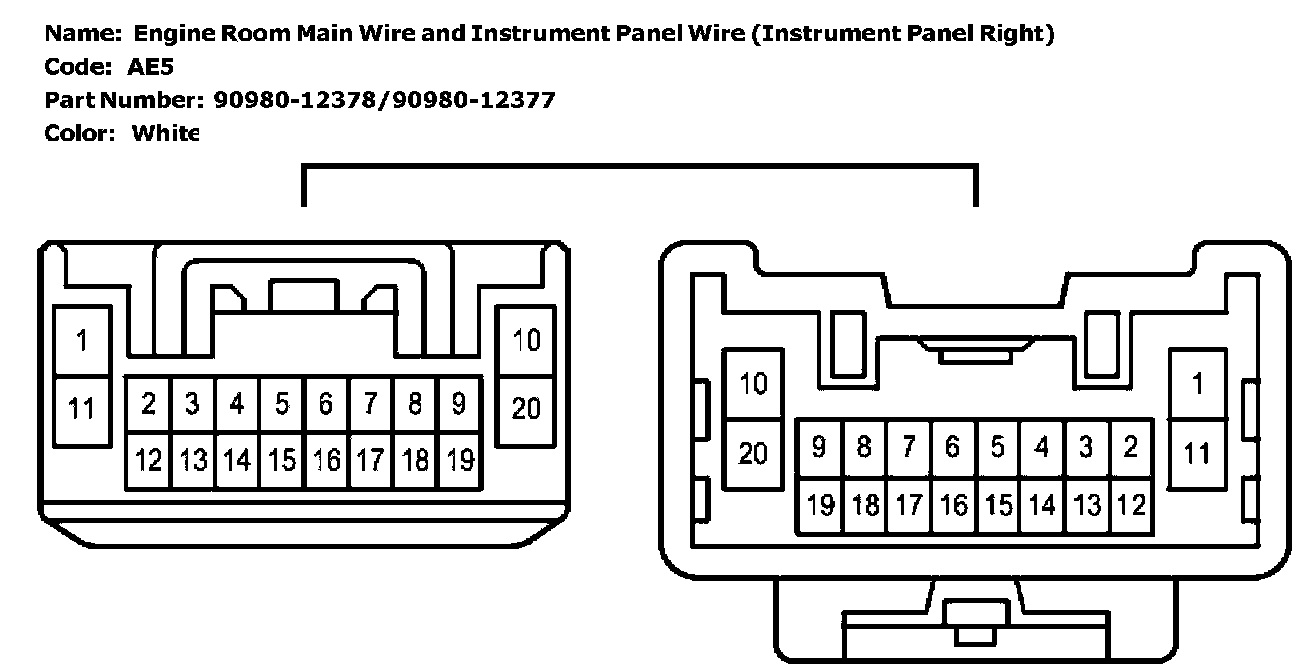

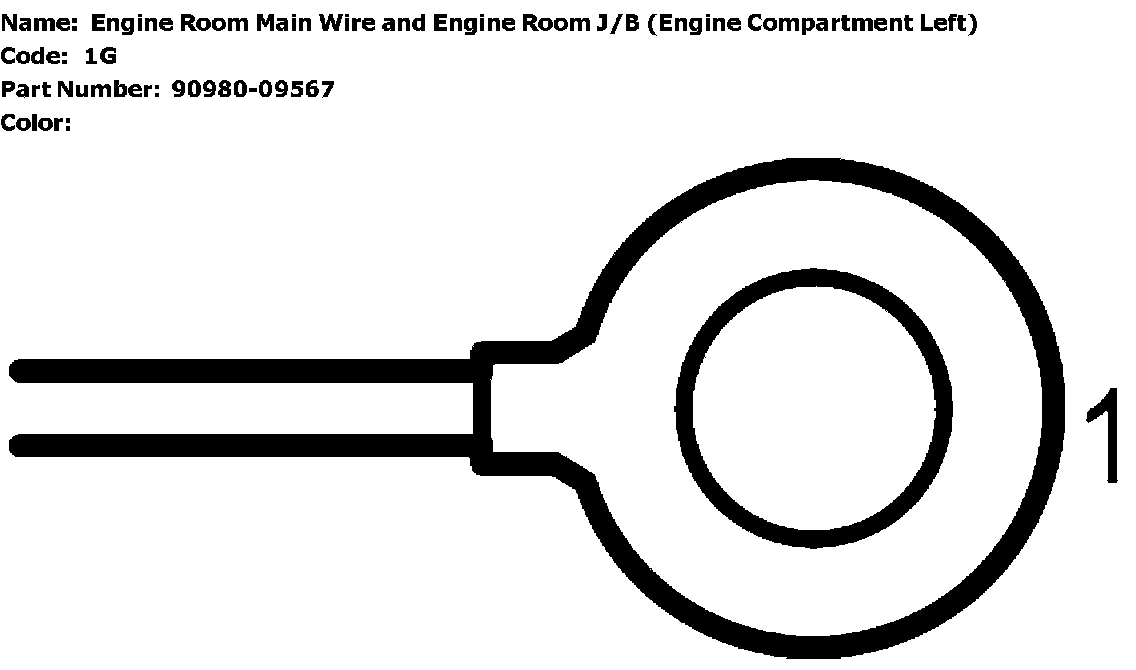

Black:

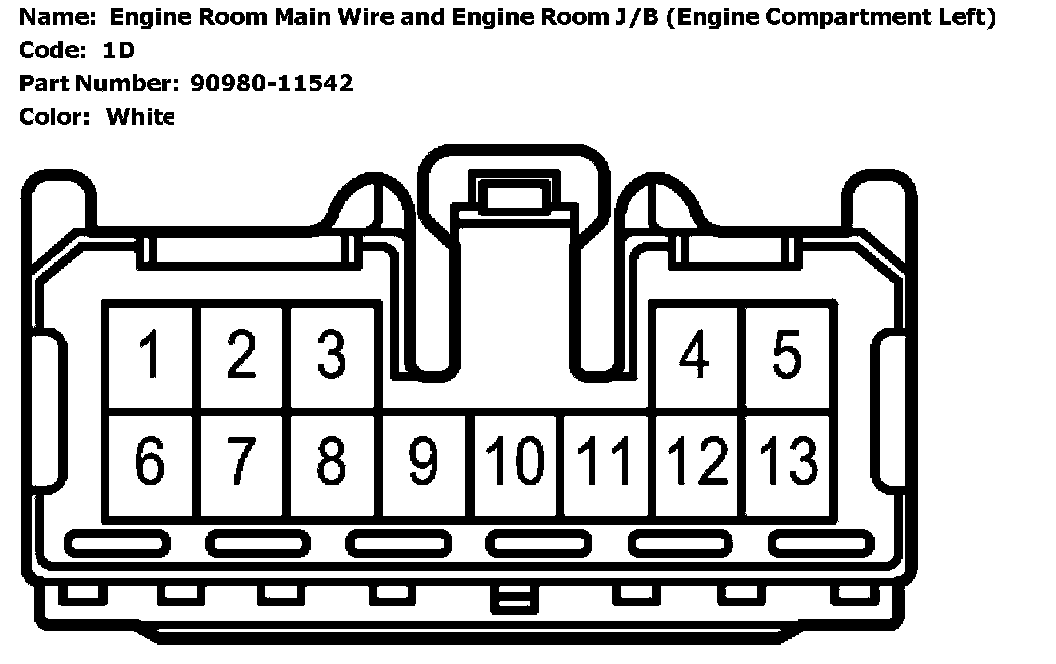

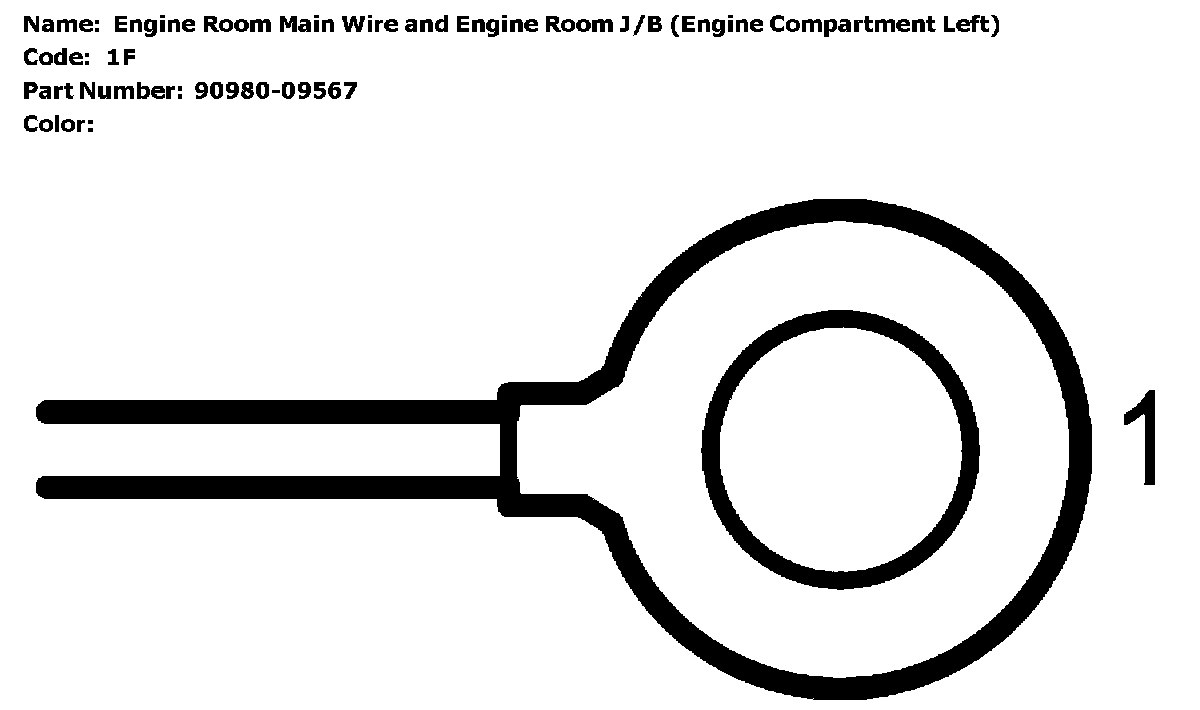

Black:

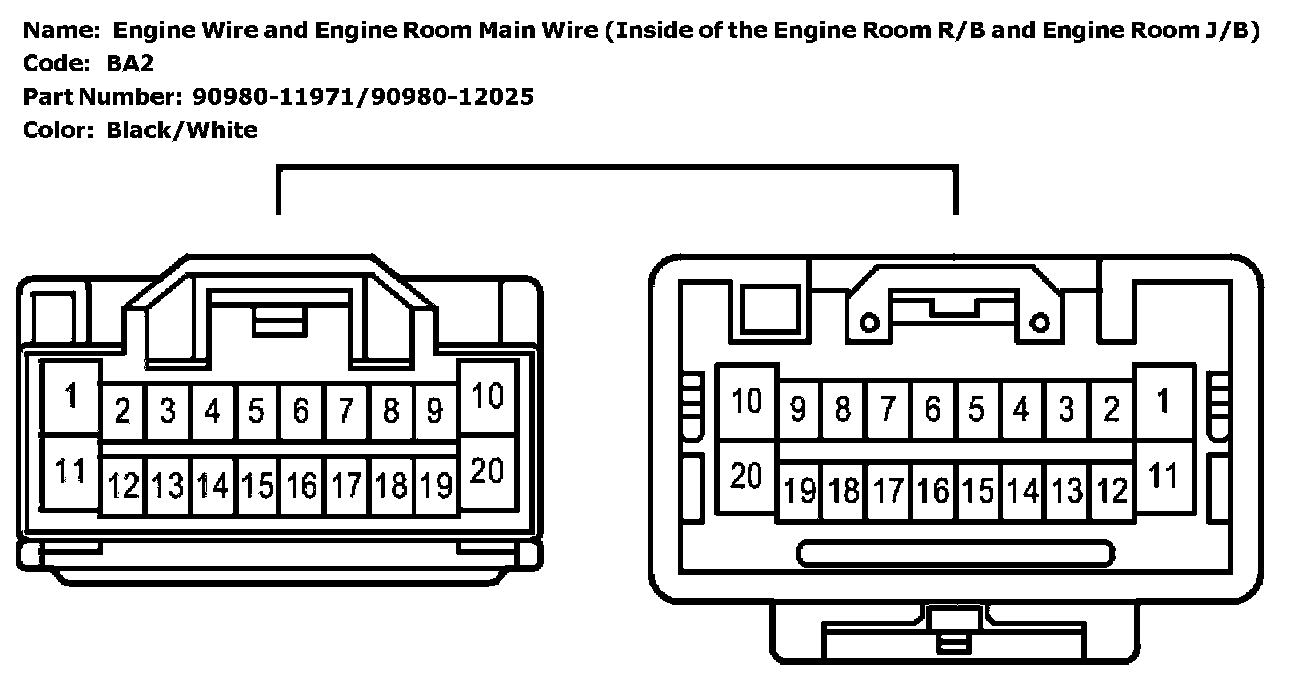

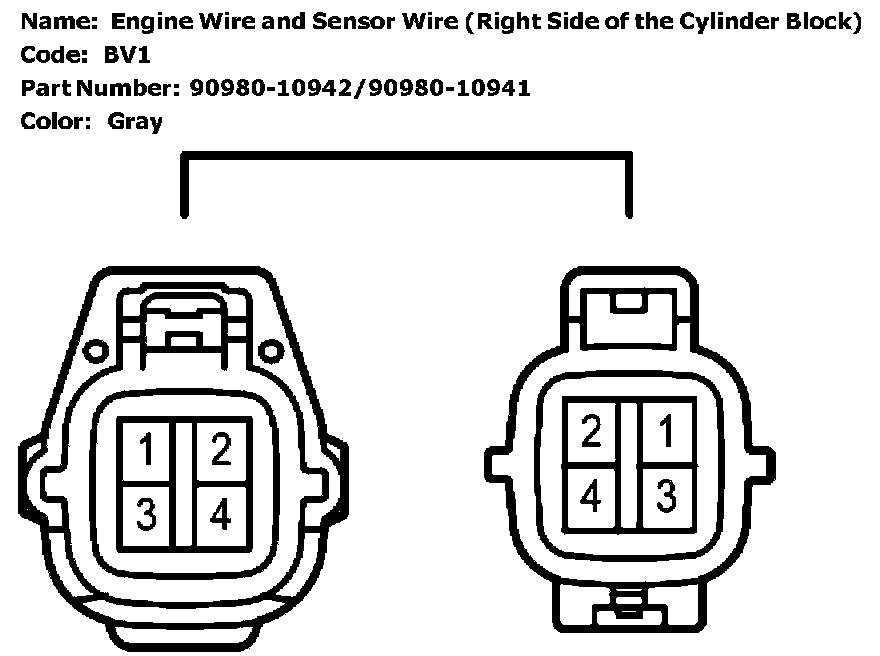

Grey:






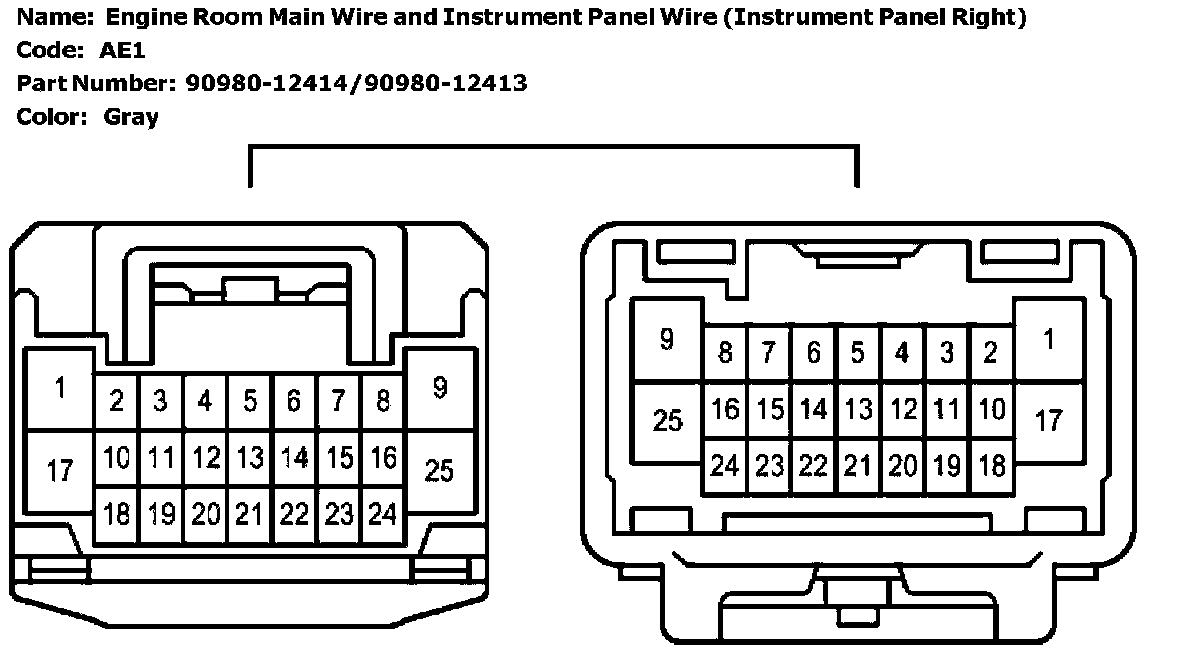

Grey:











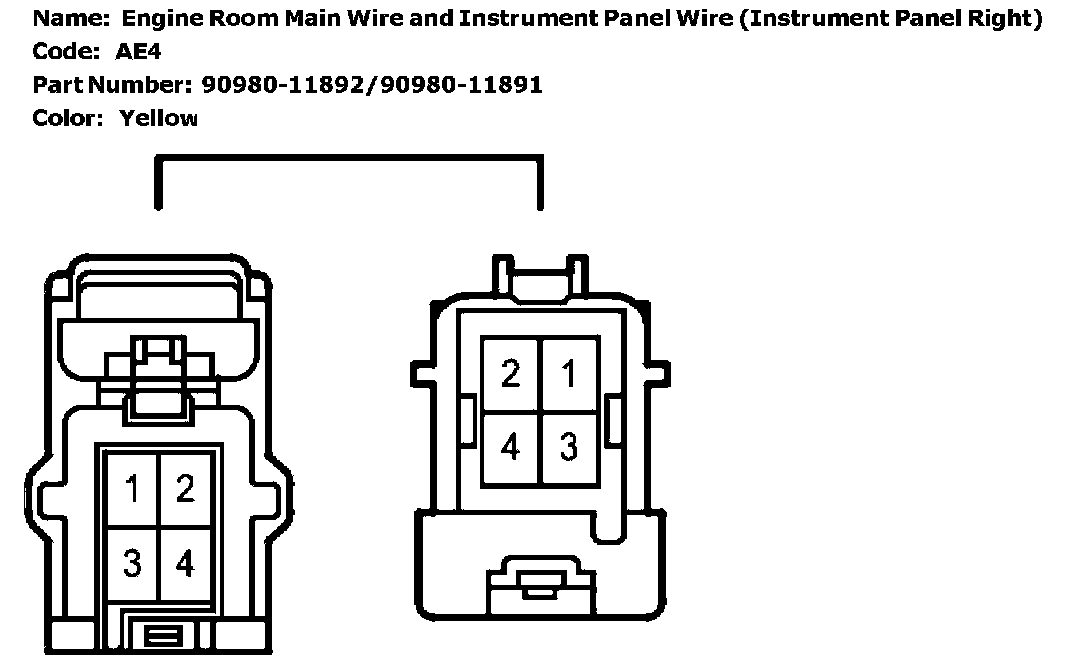

Yellow:





















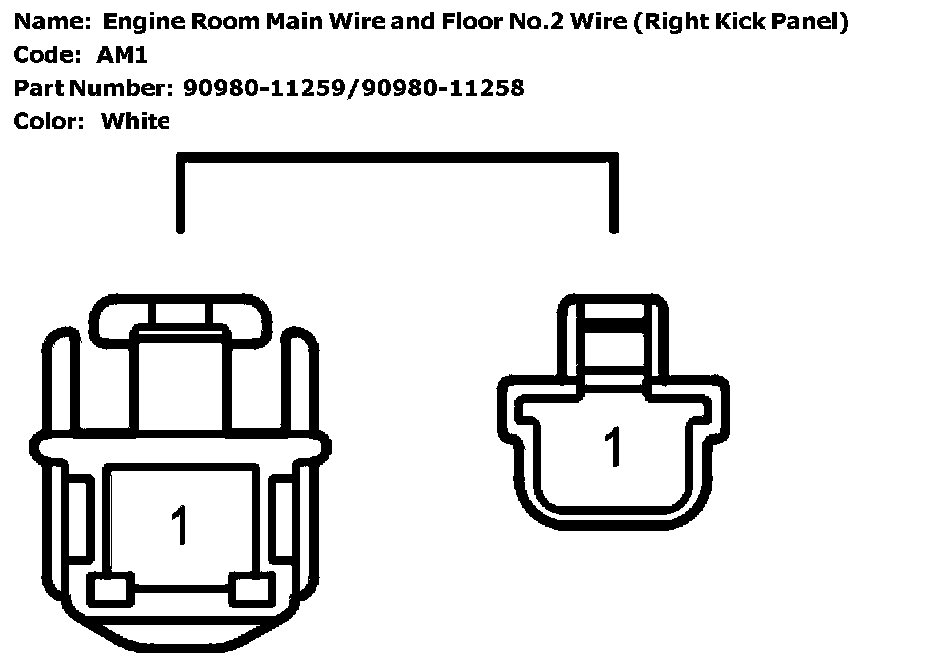

Black/White:











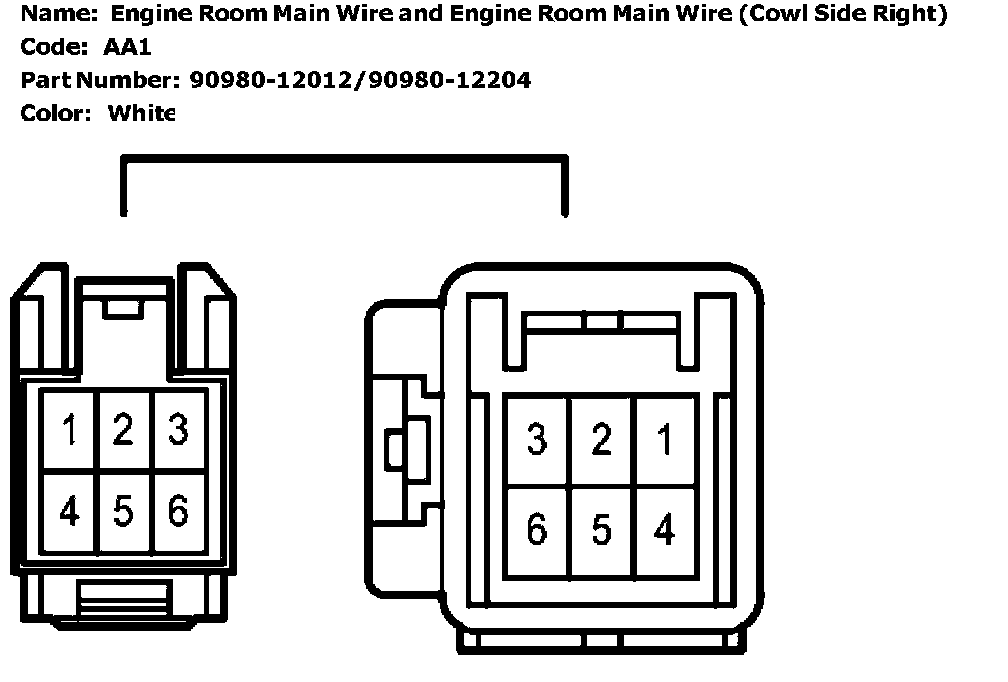

Grey/White:






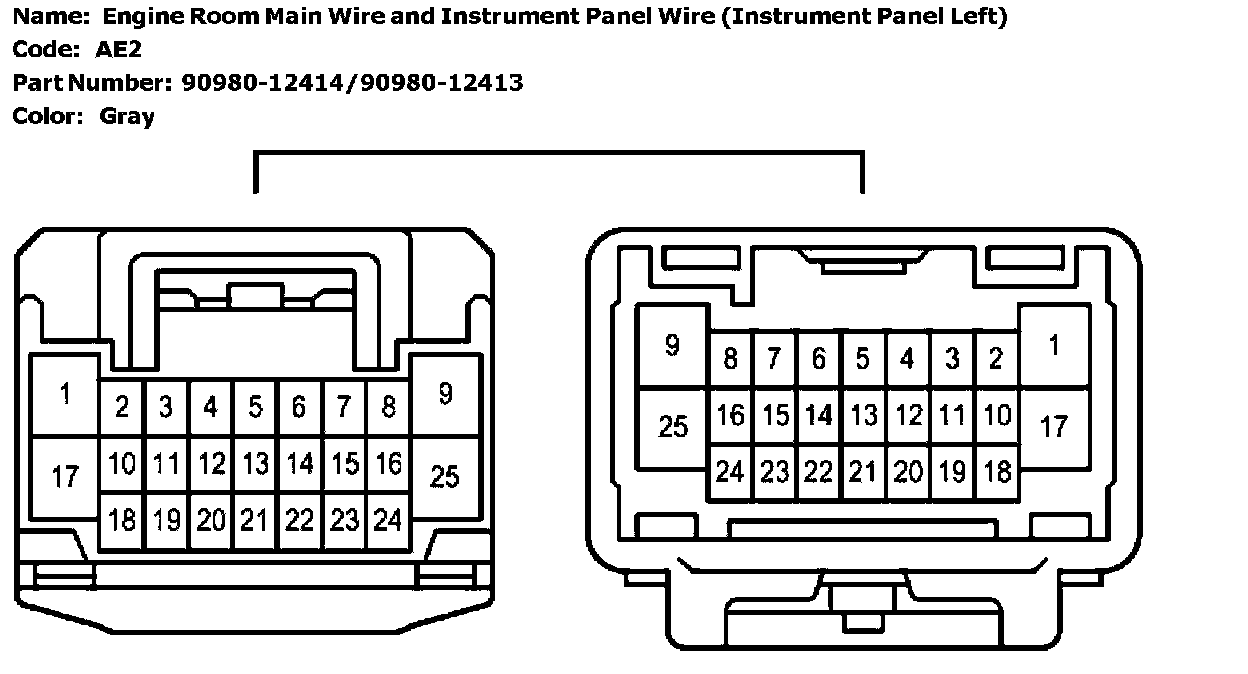

Grey:
