Room Light Assembly (For Luggage Compartment)

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): INSPECTION

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

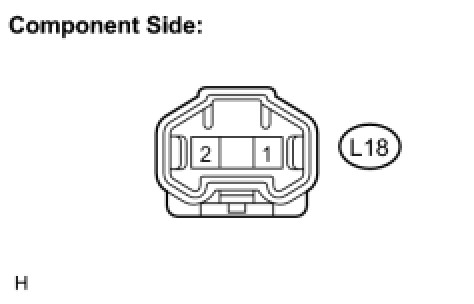

(a) Disconnect the L18 No. 1 luggage compartment light assembly connector.

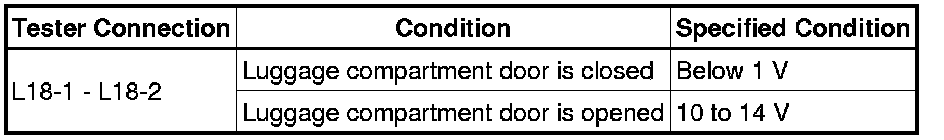

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) If the result is not specified, there is a malfunction on the wire harness side.

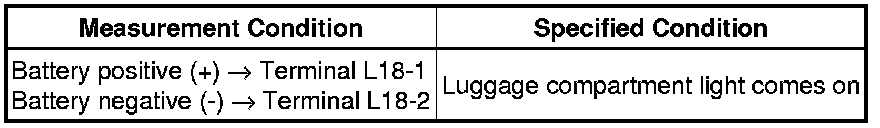

(d) Apply battery voltage to the No. 1 luggage compartment light assembly connector.





(e) Check that the No. 1 luggage compartment light comes on.

OK:





(f) If the result is not as specified, replace the bulb or No. 1 luggage compartment light assembly.
