Glove Box Light

LIGHTING: GLOVE BOX LIGHT: INSPECTION

1. INSPECT GLOVE BOX LIGHT ASSEMBLY

(a) Disconnect the E26 glove box light assembly connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) If the result is not as specified, there is a malfunction on the wire harness side.

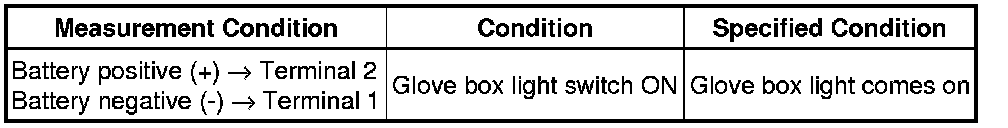

(d) Apply battery voltage to the glove box light assembly connector.





(e) Check that the glove box light comes on.

OK:





(f) If the result is not as specified, replace the glove box light assembly.
