Diagnosis System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: DIAGNOSIS SYSTEM

1. DIAGNOSIS FUNCTION

(a) The diagnosis function makes the master warning light and the multi-information display come on, and the cruise main indicator light blinks as shown in the illustration. When a malfunction occurs in the dynamic radar cruise control system, the DTCs are stored in the ECM.

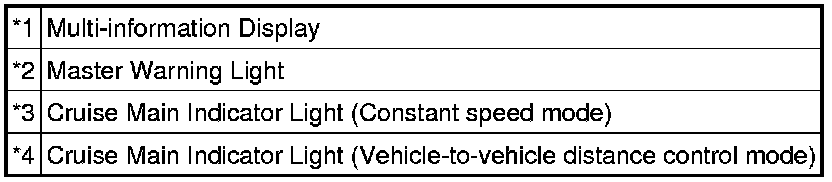

Text in Illustration

Text in Illustration:

HINT
During constant speed control mode, the cruise main indicator light (constant speed control mode) flashes. During vehicle-to-vehicle distance control mode, the cruise main indicator light (vehicle-to-vehicle distance control mode) flashes.

NOTICE:
* The master warning light goes off if the system returns to normal condition.





* Since the stored data in the ECM is erased by disconnecting the EFI MAIN and ETCS fuses or the battery terminal, do not disconnect them until the inspection has been completed.
2. DESCRIPTION

(a) The ECM controls the dynamic radar cruise control system of the vehicle. The data and DTCs relating to the dynamic radar cruise control system can be read from the DLC3 of the vehicle.

3. CHECK DLC3

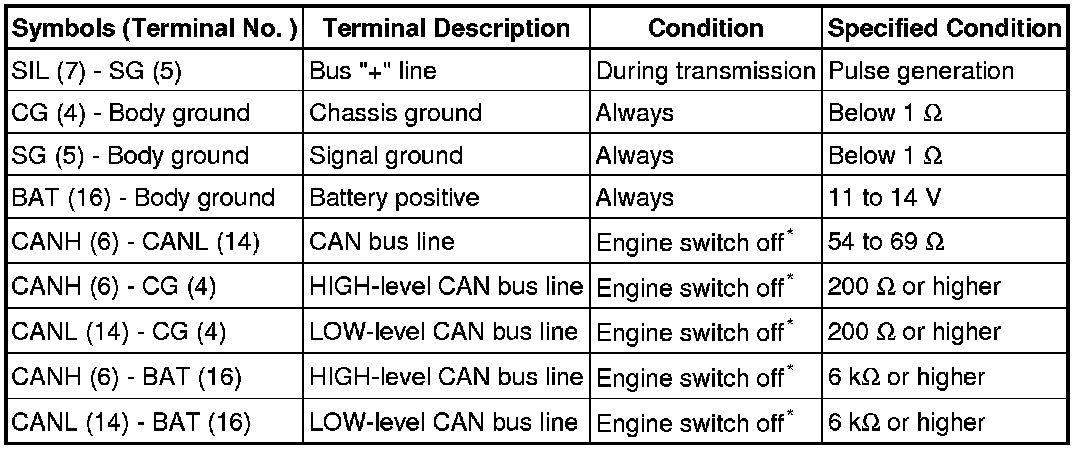

(a) The ECM uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format. If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness or connector.





NOTICE:
*: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the engine switch, any other switches or the doors.

HINT
Connect the cable of the Techstream to the DLC3, turn the engine switch on (IG) and attempt to use the Techstream. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the Techstream.

* If communication is normal when the Techstream is connected to another vehicle, inspect the DLC3 of the original vehicle.
* If communication is still not possible when the Techstream is connected to another vehicle, the problem may be in the Techstream itself. Consult the Service Department listed in the Techstream's instruction manual.
4. CHECK INDICATOR

(a) Turn the engine switch on (IG).





Text in Illustration

Text in Illustration:

(b) Check that the cruise main indicator light and RADAR READY indicator come on when the main switch ON-OFF button is pushed on, and that the indicator light and the indicator go off when the ON-OFF button is pushed off.

HINT
* If the indicator check result shows a problem, proceed to troubleshooting for the combination meter section How To Proceed With Troubleshooting.
* If a malfunction occurs in the vehicle speed sensors, the stop light switch, or other related parts during cruise control driving, the ECU actuates AUTO CANCEL of the cruise control and blinks the cruise main indicator light. This indicator light informs the driver of the malfunction. At the same time, the malfunction is stored as a diagnostic trouble code.
