Pinout Values and Diagnostic Parameters

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

1. Terminal of ECU

Text in Illustration:

(*1): w/ Dynamic Radar Cruise Control System

(*2): w/ VSC OFF Switch

2. Terminal Inspection

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.

Text in Illustration:

HINT
Voltage cannot be measured with the connector connected to the skid control ECU because the connector is watertight.

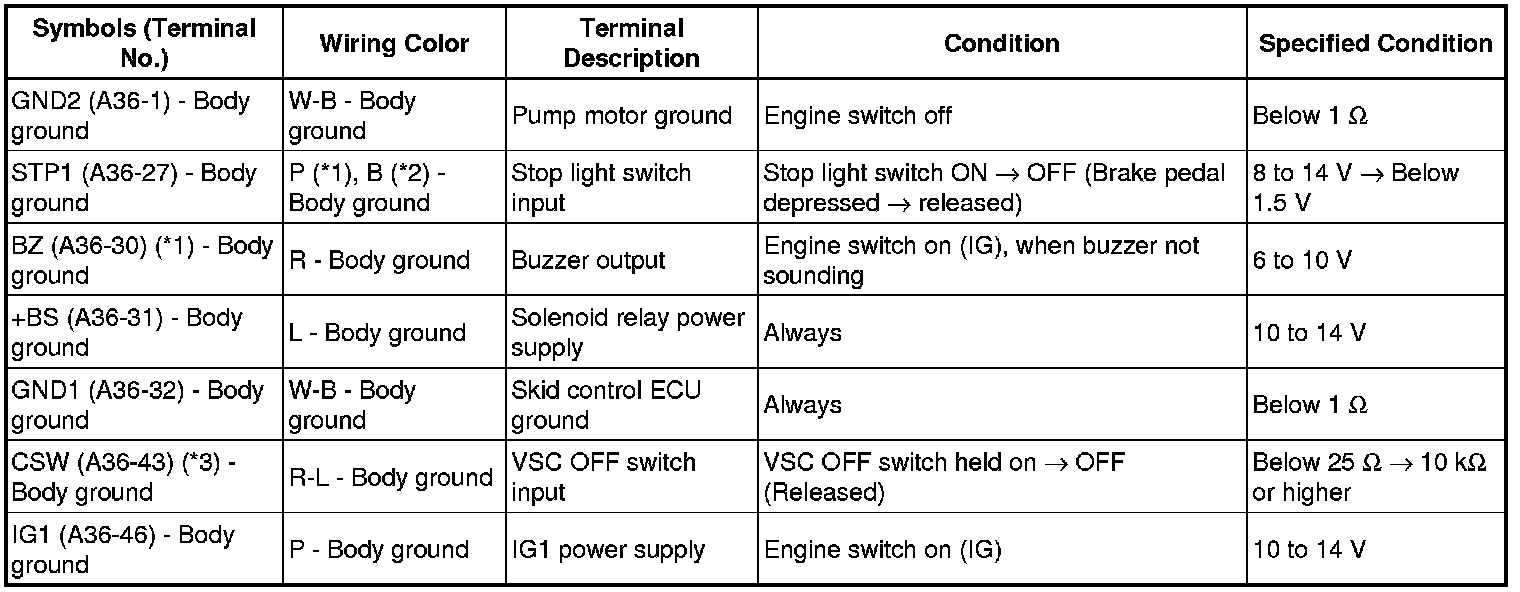

Standard:





(b) (*1): w/ Dynamic Radar Cruise Control System

(*2): w/o Dynamic Radar Cruise Control System

(*3): w/ VSC OFF Switch
