LH or RH Rear Repair Procedure

1. Remove rear door armrest base panel assembly.





A. Using a pry tool disengage the 7 claws and 3 clips disconnect the connector and remove the rear door armrest base panel assembly.





2. Remove the 3 pieces of felt from the switch base.





3. Remove the 13 screws.





4. Remove the power window switch assembly.

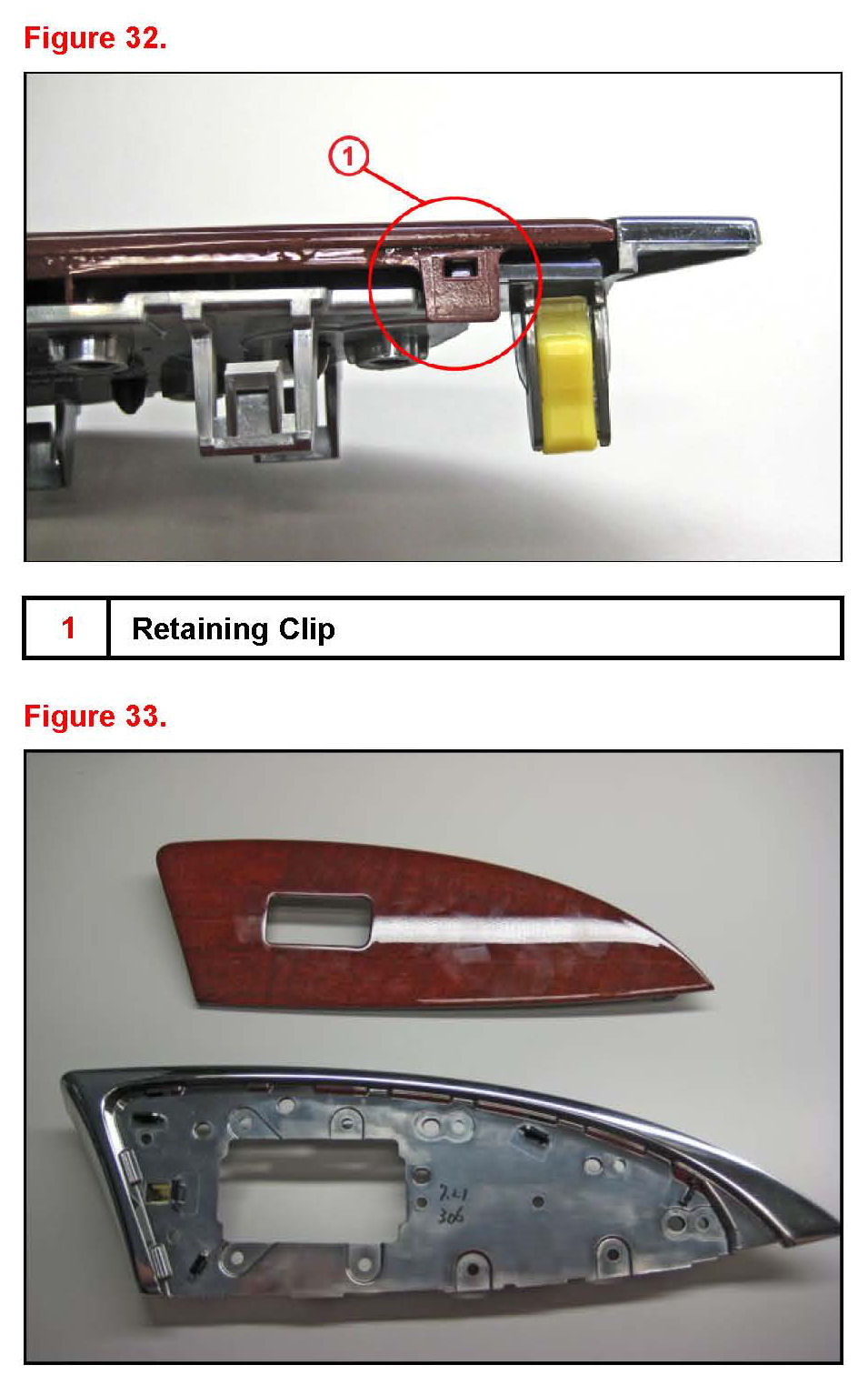

5. Release the retaining tab and separate the trim panel from the finish plate.





6. Fully seat the retaining tab and install the trim panel to the NEW finish plate.





7. Install the power window switch assembly and the 13 screws.

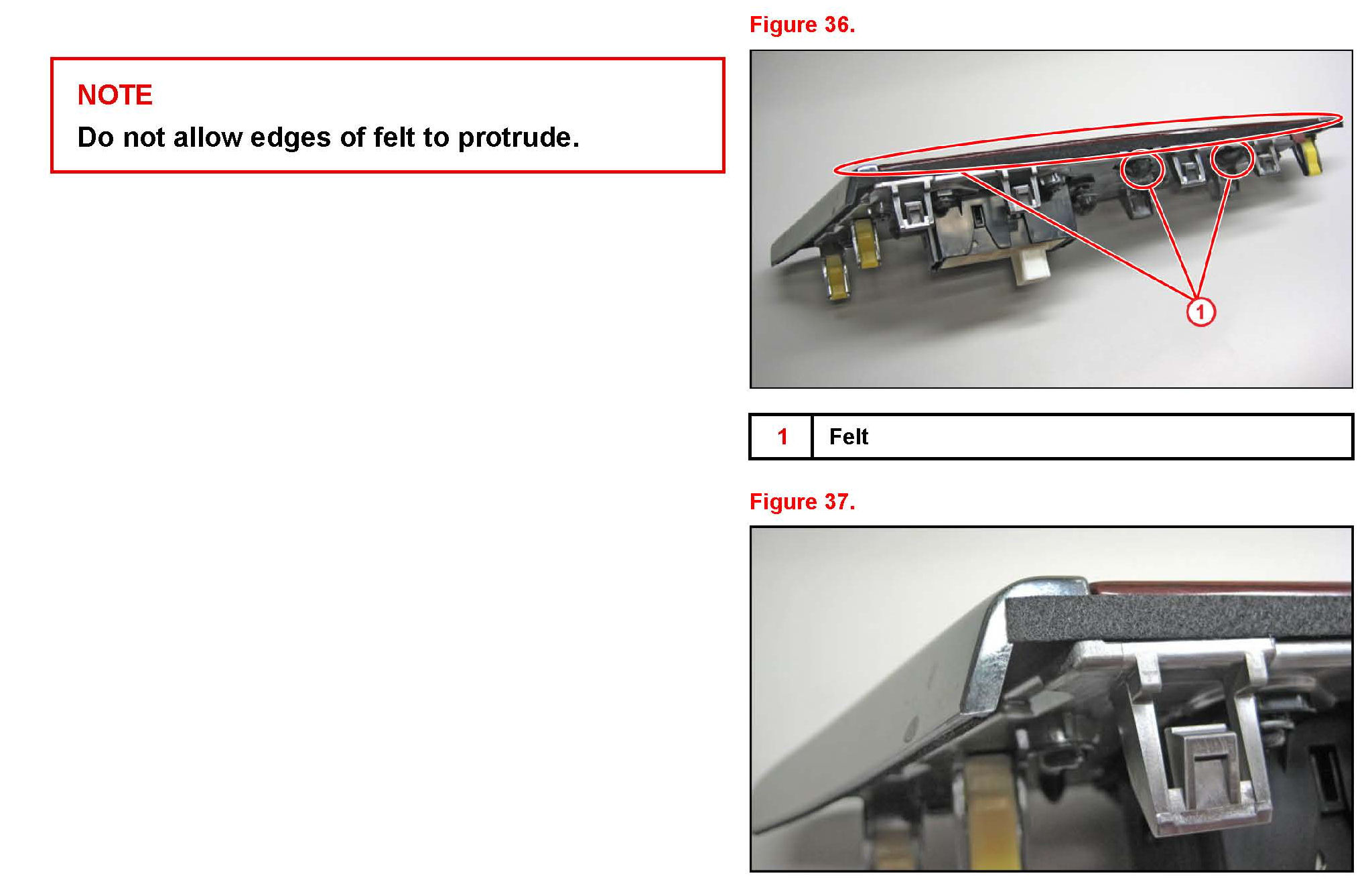

8. Apply new felt supplied with the finish plate.

9. Connect the connector engage the 5 claws and 3 clips and install the front door switch base.
